Timing Belt: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The crankshaft or camshaft must not be rotated while the timing belt is removed.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
Remove the following items:
1. Remove the timing belt cover. Refer to: Timing Belt Cover .
2. Remove the generator. Refer to: Generator - 3.0L Power Stroke Diesel .
Remove the bolts and the fan drive.

Courtesy of FORD MOTOR COMPANY
Remove the timing pin bolt at the left front of the engine.

Courtesy of FORD MOTOR COMPANY
Install special tool.
- NOTE: Only rotate the crankshaft clockwise.

  NOTE: Verify that the camshaft timing holes are aligned with the cylinder head.

  NOTE: The Locking Crankshaft Pin must be bottomed out against the cylinder block.

  Rotate the crankshaft clockwise so the crankshaft contacts the locking crankshaft pin. Use Special Service Tool: 303-1671 Pin, Locking Crankshaft.
Courtesy of FORD MOTOR COMPANY

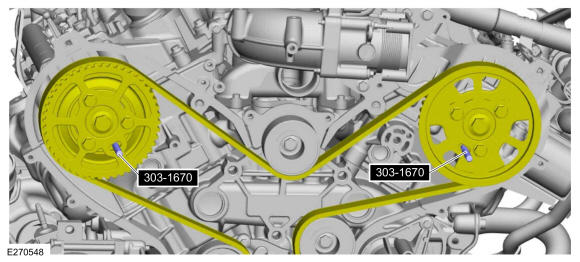

Install Special Service Tool: 303-1670 Pins, Camshaft Locking.

Courtesy of FORD MOTOR COMPANY
Loosen the camshaft pulley bolts.

Courtesy of FORD MOTOR COMPANY

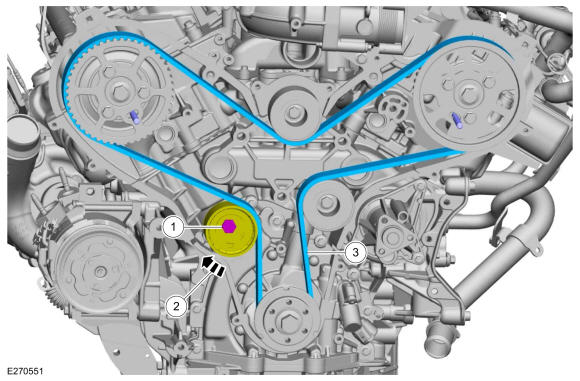

1. Loosen the timing belt tensioner bolt.
2. Rotate the timing belt tensioner clockwise.
3. Remove the timing belt.
Courtesy of FORD MOTOR COMPANY
NOTE: Replace the timing belt tensioner if damage or excessive wear is found.

Remove the bolt and the timing belt tensioner. Discard the bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Only remove the timing belt idler pulleys if damage or excessive wear is found.

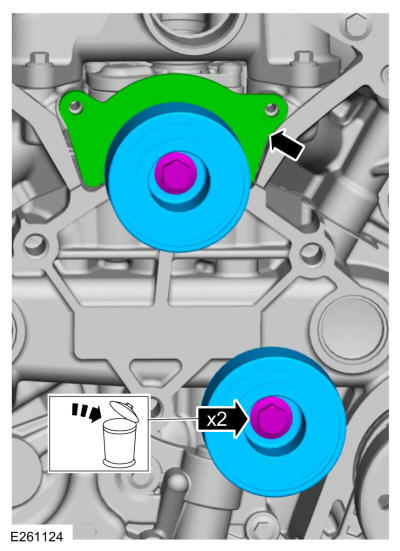

Remove the bolts and the timing belt idler pulleys. Remove the dust shield. Discard the bolts.

Courtesy of FORD MOTOR COMPANY
