Timing Belt: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

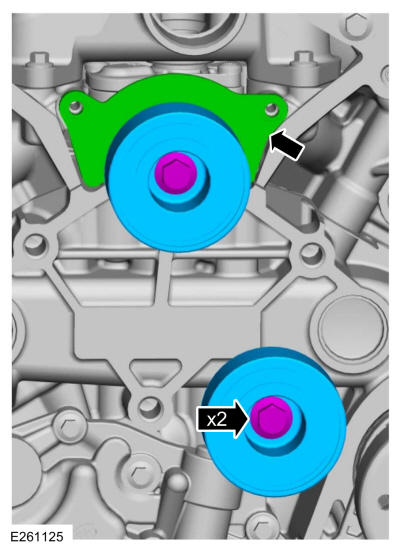

Install the dust shield. Install the timing belt idler pulleys and the bolts.
Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolt finger tight at this stage.

Install the bolt and the timing belt tensioner.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new component is installed.

NOTE: It may be necessary to rotate the camshaft pulleys slightly to ensure the bolts are not at the end of the slots.

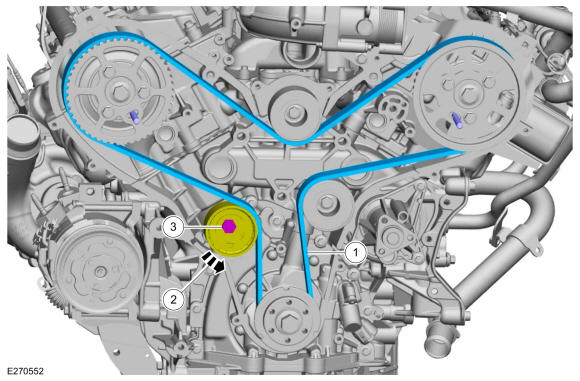

1. Install the timing belt.
2. Rotate the timing belt tensioner.
3. Tighten the timing belt tensioner bolt.
  Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 45 deg.
Courtesy of FORD MOTOR COMPANY
If the timing belt tensioner pointer is not visible in the window, the timing belt tensioning step must be repeated.

Courtesy of FORD MOTOR COMPANY

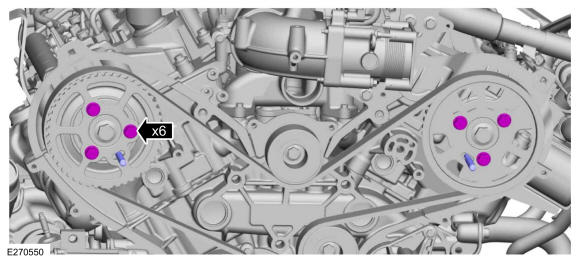

Tighten the camshaft pulley bolts.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1670 Pins, Camshaft Locking.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1671 Pin, Locking Crankshaft.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft clockwise.

This step is to verify that the timing is correct. Rotate the engine 1 7/8 revolutions.
Install special tool.
- NOTE: Only rotate the crankshaft clockwise.

  NOTE: The Locking Crankshaft Pin must be bottomed out against the cylinder block.

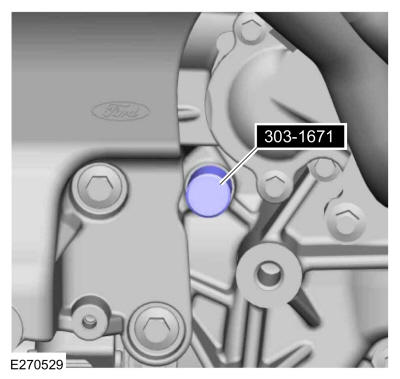

  Rotate the crankshaft clockwise so the crankshaft contacts the locking crankshaft pin. Install Special Service Tool: 303-1671 Pin, Locking Crankshaft.
Courtesy of FORD MOTOR COMPANY
NOTE: The special tool can only be installed if the valve timing is correct.

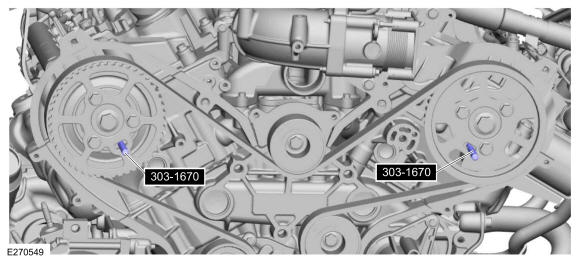

If the special tools do not install correctly, repeat the timing belt installation steps. Install Special Service Tool: 303-1670 Pins, Camshaft Locking.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1670 Pins, Camshaft Locking.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1671 Pin, Locking Crankshaft.

Courtesy of FORD MOTOR COMPANY

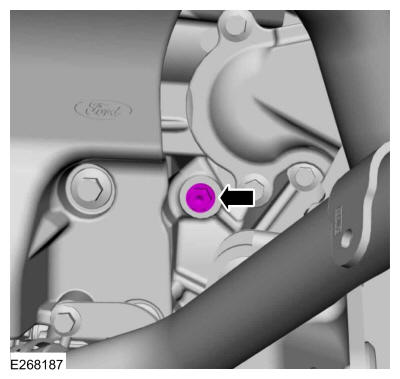

Install the timing pin bolt.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
Install the fan drive and the bolts.
Torque: 61 lb.ft (83 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the generator. Refer to: Generator - 3.0L Power Stroke Diesel .
2. Install the timing belt cover. Refer to: Timing Belt Cover .
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
