Oil Pan: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: The oil pan must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.
Apply a bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

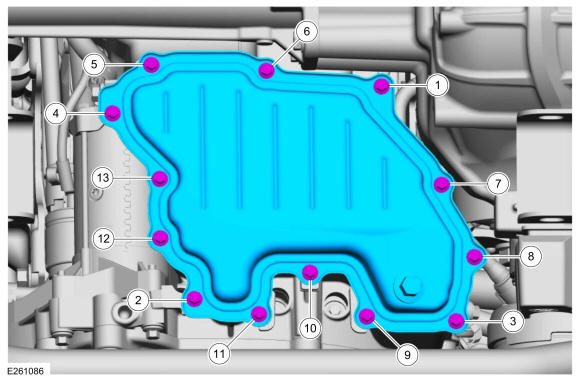

- Install the oil pan and the bolts. Tighten in the sequence shown below.
Torque: 89 lb.in (10 Nm)

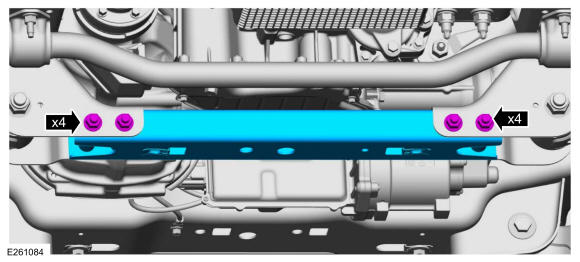

- Position the crossmember, install the nuts and the bolts.
Torque: 66 lb.ft (90 Nm)
- If equipped, install the skid plate and the bolts.
Torque: 30 lb.ft (40 Nm)
- If equipped, install the underbody shield and the bolts.
Torque: M8 bolt: 30 lb.ft (40 Nm) M6 bolt: 71 lb.in (8 Nm)
- Install the transmission housing cover and the bolts. Install the pin-type retainer.
Torque: 71 lb.in (8 Nm)
- Install a new oil filter.
- Install a new oil filter cap O-ring seal and lubricate.
Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)
- Install the oil filter cap.
Torque: 18 lb.ft (25 Nm)
- Install the engine appearance cover.
- Fill the engine with clean engine oil. Refer to: Specifications .
Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)
