Oil Cooler: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Install the oil cooler O-rings.

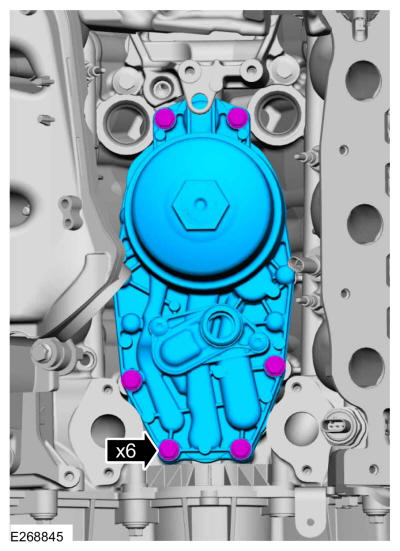

- Install the oil cooler and the bolts.
Torque: 89 lb.in (10 Nm)

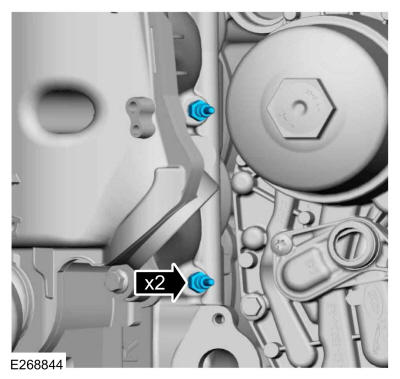

- Install the RH front 2 glow plugs.
Torque: 97 lb.in (11 Nm)

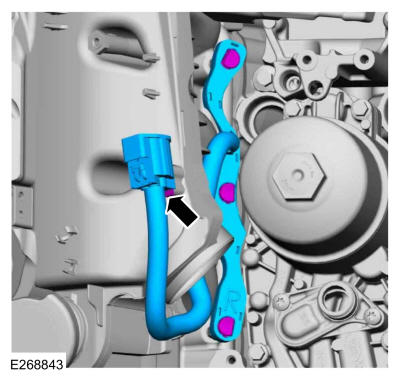

- Install the RH glow plug harnesses.

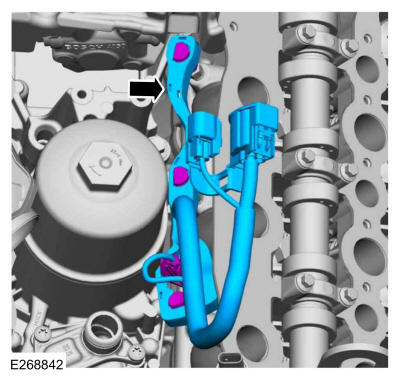

- Install the LH glow plug harnesses.

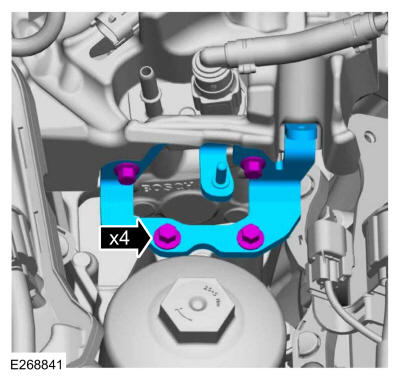

- Install the fuel injection pump bracket and the bolts.
Torque: Fuel injection pump bolts: 106 lb.in (12 Nm) Fuel injection pump bracket bolts: 89 lb.in (10 Nm)
- Install the coolant outlet connector gaskets.
- Install a new O-ring seal and lubricate.
Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

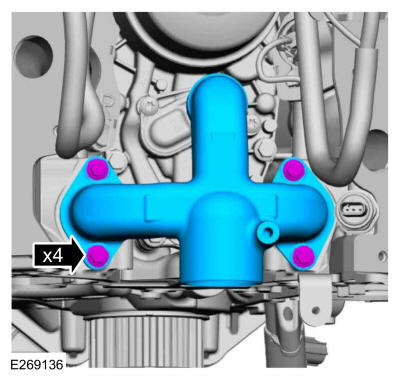

- Install the coolant outlet connector and the bolts.
Torque: 89 lb.in (10 Nm)
- Install the following items:
- Install the LH valve cover. Refer to: Valve Cover LH .
- Install the intake manifold. Refer to: Intake Manifold .
-
NOTE: Make sure that a new oil filter is installed.
If necessary, remove the oil filter cap.
- Install a new oil filter.
- Install a new oil filter cap O-ring seal and lubricate.
Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)
- Install the oil filter cap.
Torque: 18 lb.ft (25 Nm)
- Install the engine appearance cover.
- Remove the pin-type retainer. Remove the bolts and the transmission housing cover.
- Remove the oil pan plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
Torque: 18 lb.ft (25 Nm)
- Install the transmission housing cover and the bolts. Install the pin-type retainer.
Torque: 71 lb.in (8 Nm)
- Fill the engine with clean engine oil. Refer to: Specifications .
Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)
- Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
