Intake Manifold: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Lubricate the gaskets with clean engine oil.

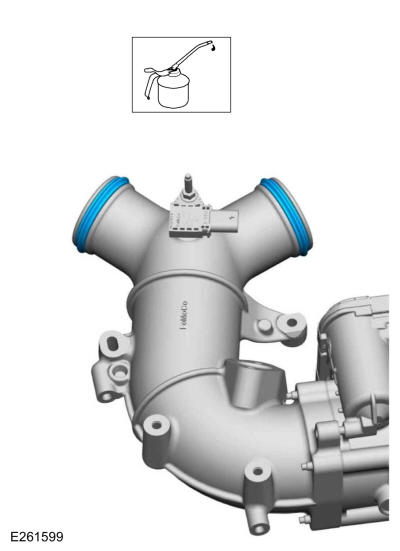

Install the new intake manifold gaskets.

Material: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

Courtesy of FORD MOTOR COMPANY
NOTE: Insert the intake manifold into the LH valve cover, then into the RH valve cover.

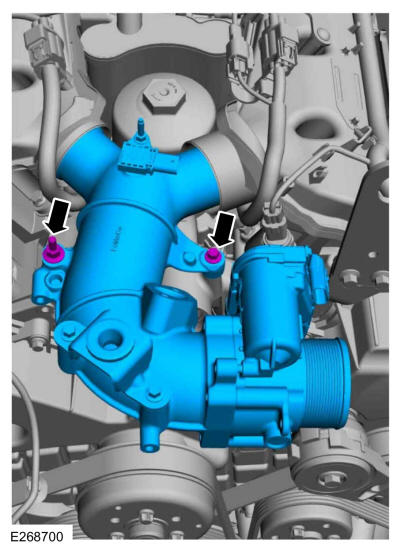

Install the intake manifold, the bolt and the stud bolt.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

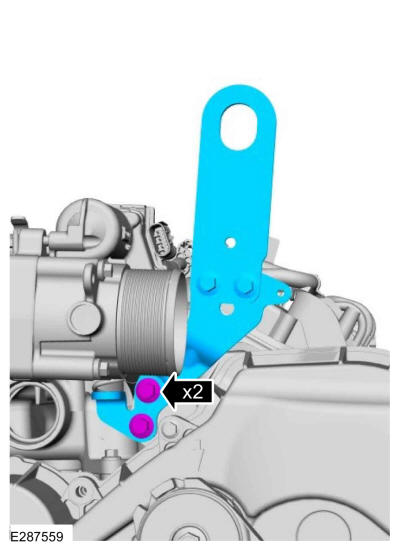

Install the lifting bracket and the bolts.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

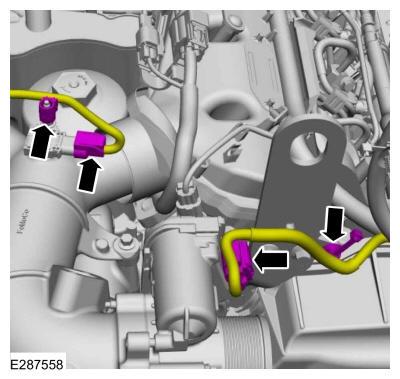

Connect the IAT sensor electrical connector and the wire retainer. Connect the TB (throttle body) electrical connector and the retainer.

Courtesy of FORD MOTOR COMPANY
Install a new O-ring seal and lubricate.
Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

Courtesy of FORD MOTOR COMPANY

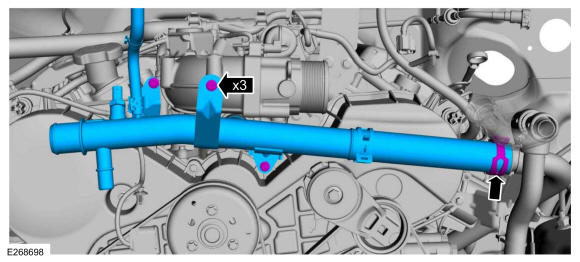

Install the coolant tube and connect the clamp.Install the bolts for the coolant tube. Use the General Equipment: Hose Clamp Remover/Installer
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

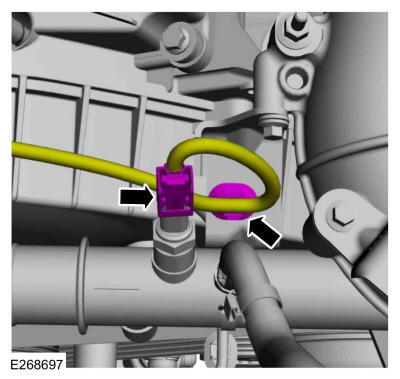

Connect the ECT sensor electrical connector and the wire retainer.

Courtesy of FORD MOTOR COMPANY

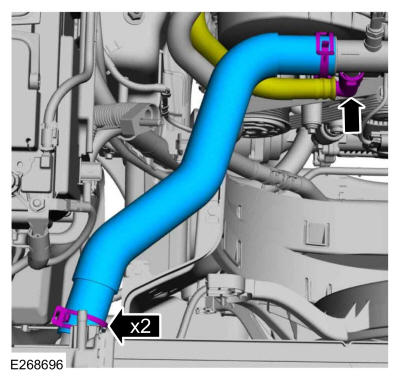

- Position back and connect the heater hose.
- Install the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the LH CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
2. Install the EGR valve outlet tube. Refer to: Exhaust Gas Recirculation (EGR) Outlet Tube .
3. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
4. Install the cooling fan. Refer to: Cooling Fan .
5. Install the degas bottle. Refer to: DEGAS BOTTLE .
Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

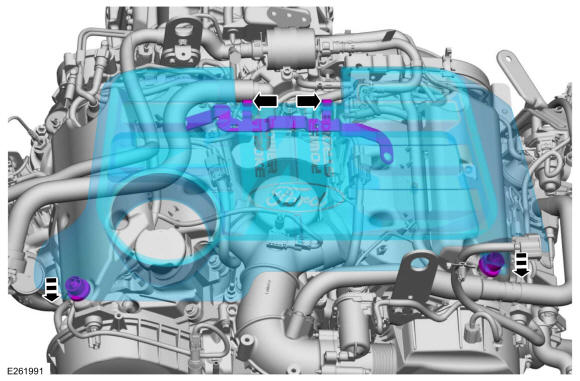

Install the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
