Removal And Installation: Flexplate: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the transmission. Refer to: Transmission - 3.0L Power Stroke Diesel .
-
NOTE: Only rotate the crankshaft clockwise.

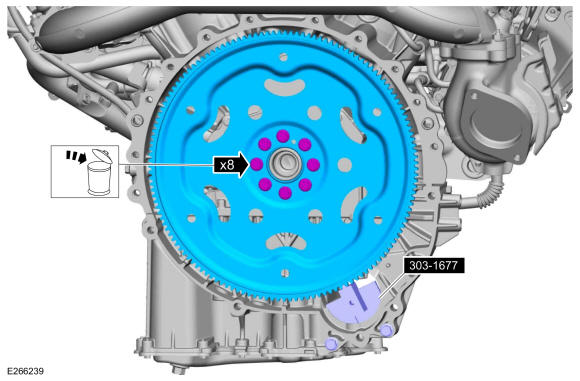

Install Special Service Tool: 303-1677 Locking Tool, Flywheel.
- Remove the bolts and the flexplate. Discard the bolts.
