Removal And Installation: Flexplate: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

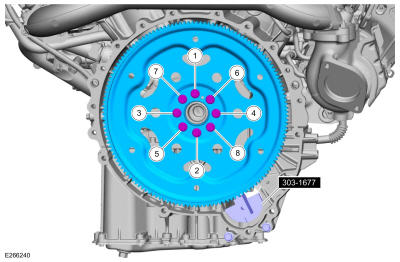

- Install the flexplate and the bolts. Tighten in sequence shown below.
Torque: Stage 1: 37 lb.ft (50 Nm) | Stage 2: 45 deg.Stage 3: 45 deg.
- Remove Special Service Tool: 303-1677 Locking Tool, Flywheel.
- Install the transmission. Refer to: Transmission - 3.0L Power Stroke Diesel .
- Road test the vehicle.
