Exhaust Manifold LH: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the following items:
1. Remove the exhaust crossover pipe. Refer to: Exhaust Crossover Pipe .
2. Remove the generator. Refer to: Generator - 3.0L Power Stroke Diesel .
Disconnect the lower radiator hose from the lower radiator coolant tube. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
If equipped, disconnect the block heater cord retainers.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the lower radiator coolant tube.

Courtesy of FORD MOTOR COMPANY
Remove and discard the O-ring seal from the lower radiator coolant tube.

Courtesy of FORD MOTOR COMPANY
If equipped, disconnect the block heater cord retainer and the electrical connector.

Courtesy of FORD MOTOR COMPANY
Disconnect and position aside the fuel tubes.

Courtesy of FORD MOTOR COMPANY
Disconnect the EP (exhaust pressure) sensor and the CKP sensor electrical connectors. Disconnect the retainers position aside the wiring.

Courtesy of FORD MOTOR COMPANY
Remove the nuts and the fuel tube support bracket.

Courtesy of FORD MOTOR COMPANY
Remove the nut, the bolt and the LH exhaust manifold heat shield.

Courtesy of FORD MOTOR COMPANY
Remove the oil level indicator.

Courtesy of FORD MOTOR COMPANY
- Disconnect the wire retainers from the oil level indicator tube.
- Remove the stud bolt, the bolt and the oil level indicator tube.
Courtesy of FORD MOTOR COMPANY
Remove the stud bolt. Disconnect the tube nut and remove the EP sensor assembly.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the EGR cooler coolant tube.

Courtesy of FORD MOTOR COMPANY
Remove and discard the EGR cooler coolant tube O-ring seal and the grommet.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the EGR cooler-to-exhaust manifold tube. Remove and discard the gaskets.

Courtesy of FORD MOTOR COMPANY
NOTE: Coolant tubes removed for clarity.

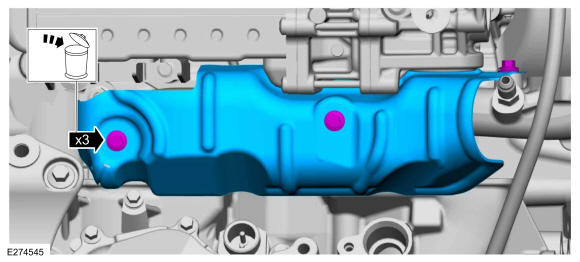

Remove the bolts and the exhaust manifold heat shield. Discard the bolts.

Courtesy of FORD MOTOR COMPANY

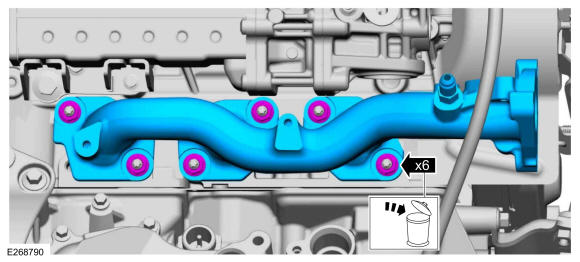

- Remove and discard the nuts.
- Remove the exhaust manifold.
Courtesy of FORD MOTOR COMPANY

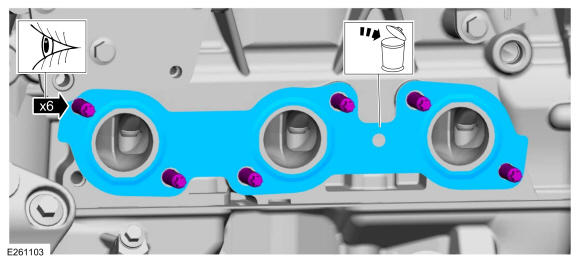

- Remove and discard the exhaust manifold gasket.
- Inspect the exhaust manifold studs. Replace as necessary.
Courtesy of FORD MOTOR COMPANY
Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .
