Engine Mount RH: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Discard all engine mount fasteners and install new fasteners.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: RH shown, LH similar.

Index-mark the hood hinge location.

Courtesy of FORD MOTOR COMPANY
Remove the nuts and the hood.

Courtesy of FORD MOTOR COMPANY
NOTE: LH shown, RH similar.
1. Release the clip.
2. Detach and position the hood shock aside.
Courtesy of FORD MOTOR COMPANY
Remove the following items:
1. Remove the cowl panel. Refer to: Cowl Panel .
2. Remove the air cleaner outlet tube. Refer to: Air Cleaner Outlet Pipe .
3. Remove the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
4. Remove the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
5. Remove the cooling fan upper shroud. Refer to: Cooling Fan Upper Shroud .
6. Remove the turbocharger. Refer to: Turbocharger .
Install the engine rear lifting bracket.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Use a commercially available quick link.

Install Special Service Tool: 303-F070 Support Bar, Engine., 303-1681 Spreader Bar.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the bolts and the underbody shield.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the bolts and the skid plate.

Courtesy of FORD MOTOR COMPANY
If equipped, remove the front driveshaft. Refer to: Front Driveshaft .
NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

Remove and discard the RH engine mount through bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

Remove and discard the LH engine mount through bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when loosening or tightening the engine mount nuts and studs or damage to the engine mount can occur.

NOTE: The engine mount studs may come off with the nuts.

Remove and discard the engine mount nuts. Remove the engine mount studs.

Courtesy of FORD MOTOR COMPANY
Raise the engine approximately 30 mm (1.18 in). Use Special Service Tool: 303-F070 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

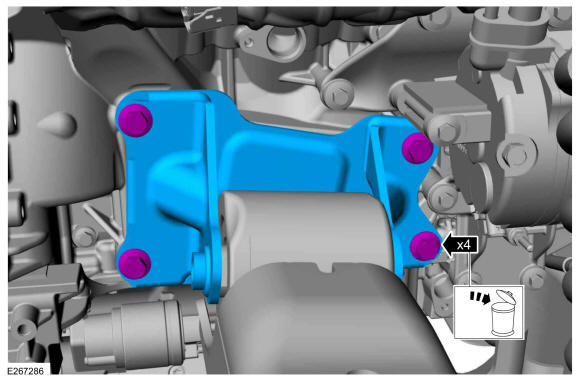

Remove the bolts and the RH engine mount-to-cylinder block bracket. Discard the bolts.

Courtesy of FORD MOTOR COMPANY
Remove the RH engine mount.

Courtesy of FORD MOTOR COMPANY
