Engine Mount RH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the engine mount-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

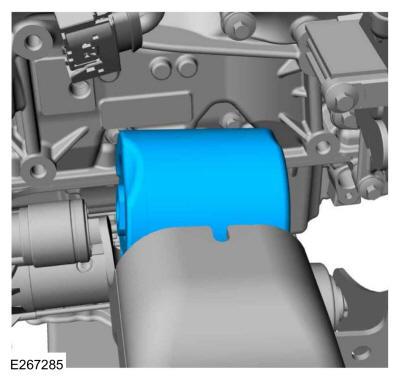

  2. Position the RH engine mount into the vehicle.
    GFD461465Courtesy of FORD MOTOR COMPANY

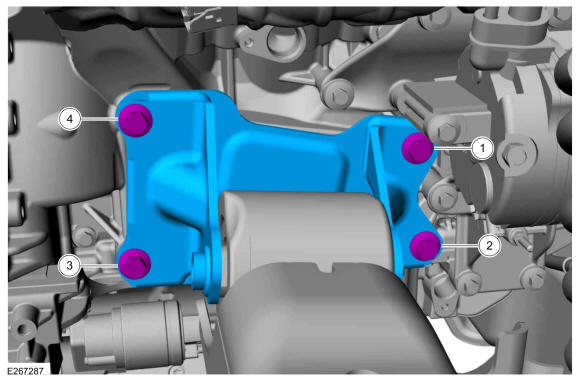

  3. Position the RH engine mount-to-cylinder block bracket and install the new bolts in the sequence shown below.

    Torque: 85 lb.ft (115 Nm)

    Fig 1: RH Engine Mount-To-Cylinder Block Bracket Tightening Sequence
    GFD461466Courtesy of FORD MOTOR COMPANY

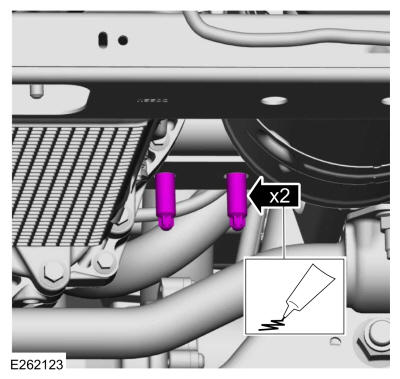

  4. NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.
    NOTE: Apply threadlock to the stud threads prior to installation.

    Install the RH engine mount studs.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 22 lb.ft (30 Nm)

    GFD461467Courtesy of FORD MOTOR COMPANY

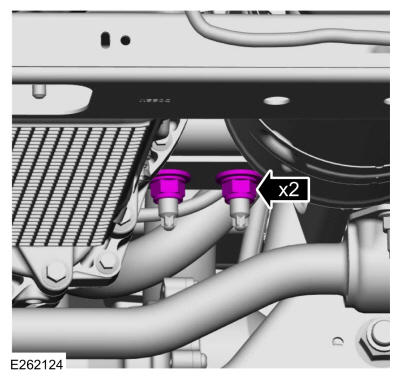

  5. NOTE: Only use hand tools when installing the RH engine mount nuts or damage to the engine mount can occur.

    Install the new RH engine mount nuts.

    Torque: 111 lb.ft (150 Nm)

    GFD461468Courtesy of FORD MOTOR COMPANY

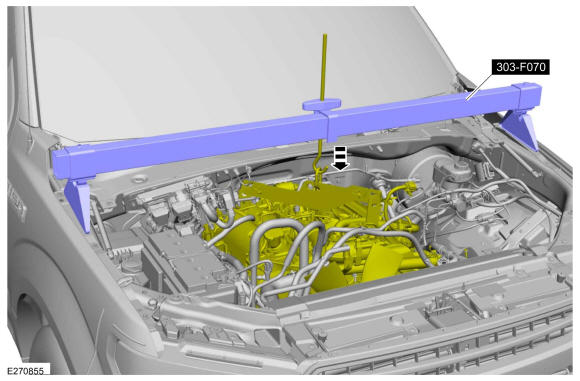

  6. Lower the engine to the installed position. Use Special Service Tool: 303-F070 Support Bar, Engine.
    GFD461456Courtesy of FORD MOTOR COMPANY

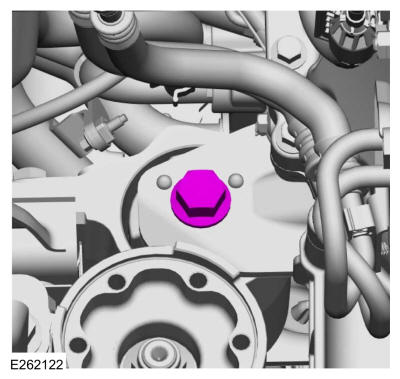

  7. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new LH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    GFD461469Courtesy of FORD MOTOR COMPANY

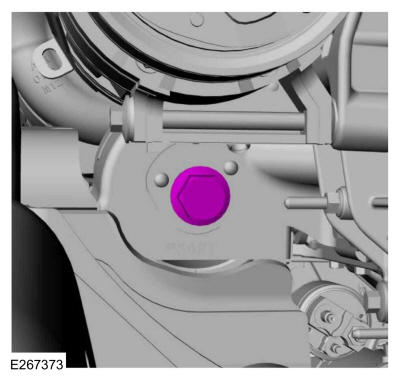

  8. NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new RH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    GFD461458Courtesy of FORD MOTOR COMPANY
  9. If equipped, install the front driveshaft. Refer to: Front Driveshaft .
  10. If equipped. Install the skid plate and the bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD461438Courtesy of FORD MOTOR COMPANY
  11. If equipped. Install the underbody shield and the bolts.

    Torque: M8 bolt : 30 lb.ft (40 Nm) M6 bolt : 71 lb.in (8 Nm)

    GFD461437Courtesy of FORD MOTOR COMPANY

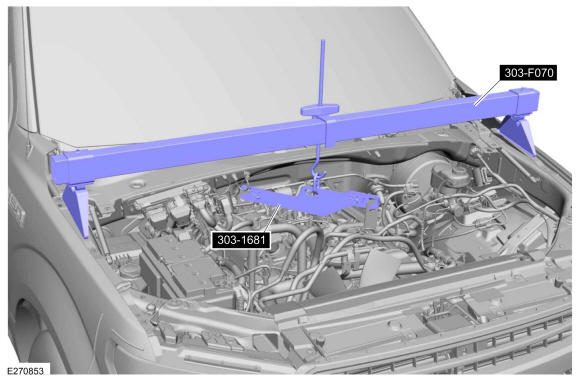

  12. Remove Special Service Tool: 303-F070 Support Bar, Engine., 303-1681 Spreader Bar.
    GFD461435Courtesy of FORD MOTOR COMPANY

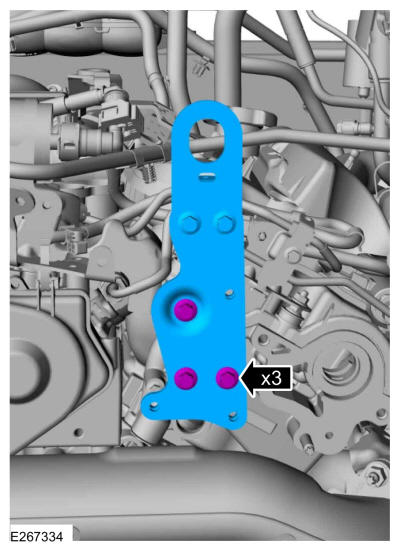

  13. Remove the engine rear lifting bracket.
    GFD461462Courtesy of FORD MOTOR COMPANY
  14. Install the following items:

    1. Install the turbocharger. Refer to: Turbocharger .
    2. Install the cooling fan upper shroud. Refer to: Cooling Fan Upper Shroud .
    3. Install the CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
    4. Install the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
    5. Install the air cleaner outlet tube. Refer to: Air Cleaner Outlet Pipe .
    6. Install the cowl panel. Refer to: Cowl Panel .

  15. NOTE: LH shown, RH similar.

    1. Position the hood shock and attach.
    2. Install the clip.

    GFD460159Courtesy of FORD MOTOR COMPANY
  16. Position the hood and install the nuts.

    Torque: 18 lb.ft (25 Nm)

    GFD459470Courtesy of FORD MOTOR COMPANY
  17. Start and check the exhaust system for leaks.
