Camshaft Rear Seal: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

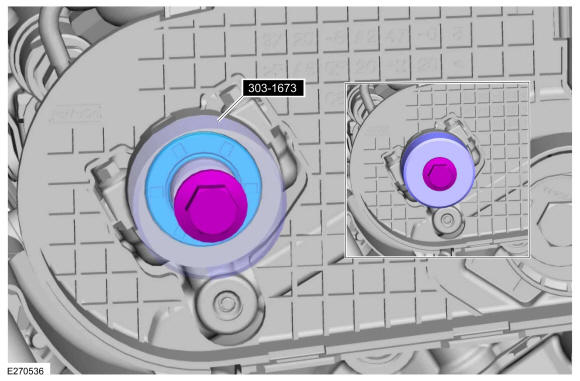

- Using the special tool, install the camshaft rear seal. Use Special Service Tool: 303-1673 Installer, Camshaft Seal.
- Using the special tool, install the camshaft gear hub and the bolt. Use Special Service Tool: 303-1674 Tool, Holding Camshaft Sprocket.
Torque: Stage 1: 59 lb.ft (80 Nm) | Stage 2: 80 deg.
- Install the READ belt. Refer to: Rear End Accessory Drive (READ) .
