Camshaft Front Seal: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

RH camshaft seal

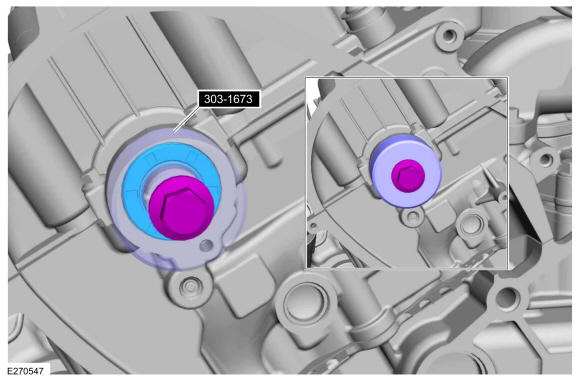

  1. Using the special tool, install the front camshaft seal. Use Special Service Tool: 303-1673 Installer, Camshaft Seal.
    GFD461381Courtesy of FORD MOTOR COMPANY

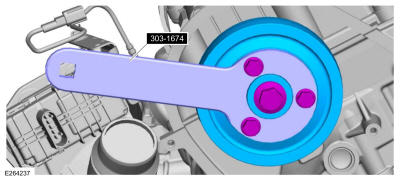

  2. Using the special tool, install the RH camshaft gear hub and the bolts. Use Special Service Tool: 303-1674 Tool, Holding Camshaft Sprocket.

    Torque: Stage 1: 59 lb.ft (80 Nm) | Stage 2: 80 deg.

    GFD461382Courtesy of FORD MOTOR COMPANY

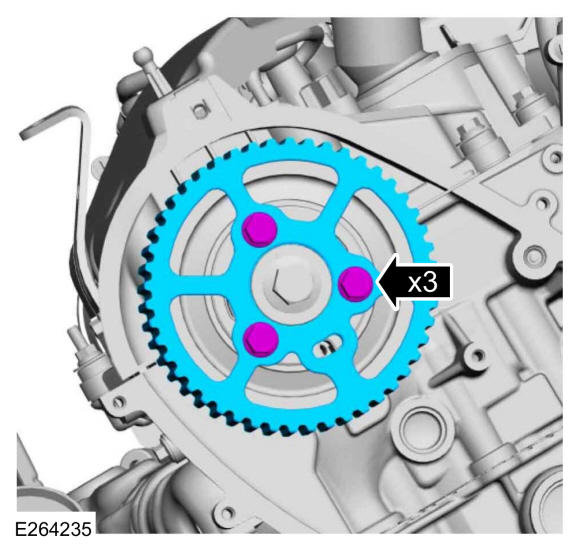

  3. NOTE: Only tighten the bolts finger tight at this stage.

    Install the camshaft pulley and the bolts.

    GFD461383Courtesy of FORD MOTOR COMPANY

    LH camshaft seal

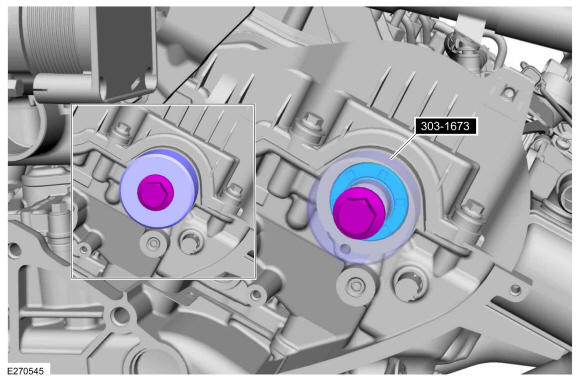

  4. Using the special tool, install the front camshaft seal. Use Special Service Tool: 303-1673 Installer, Camshaft Seal.
    GFD461384Courtesy of FORD MOTOR COMPANY

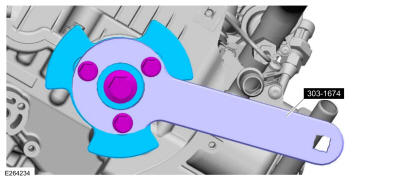

  5. Using the special tool, install the LH camshaft gear hub and the bolts. Use Special Service Tool: 303-1674 Tool, Holding Camshaft Sprocket.

    Torque: Stage 1: 59 lb.ft (80 Nm) | Stage 2: 80 deg.

    GFD461385Courtesy of FORD MOTOR COMPANY

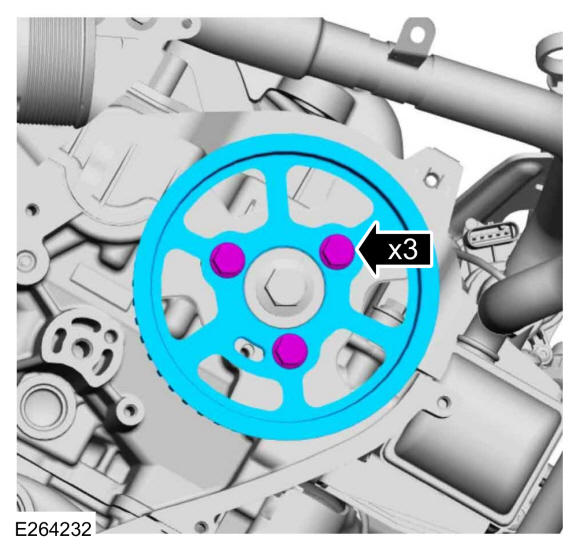

  6. NOTE: Only tighten the bolts finger tight at this stage.

    Install the camshaft pulley and the bolts.

    GFD461386Courtesy of FORD MOTOR COMPANY

    All vehicles

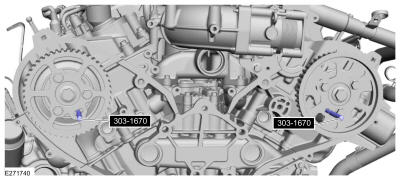

  7. Install Special Service Tool: 303-1670 Pins, Camshaft Locking.
    GFD461387Courtesy of FORD MOTOR COMPANY
  8. Install the timing belt. Refer to: Timing Belt .
