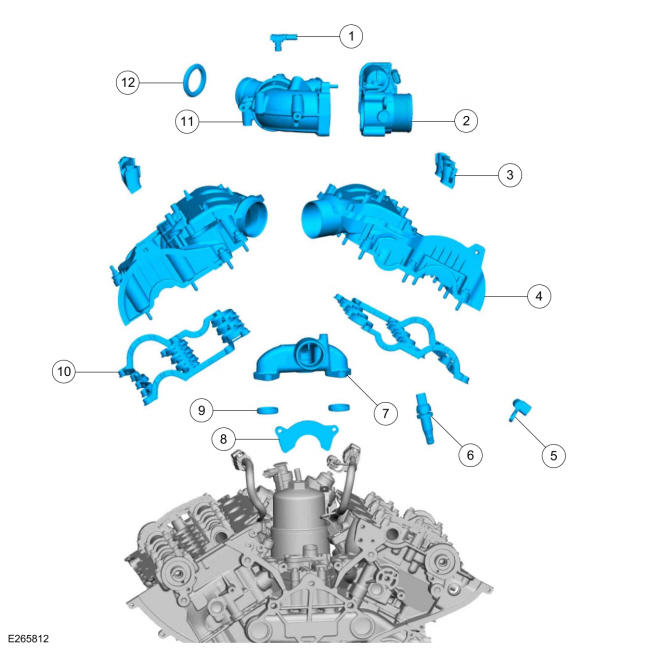

Exploded View Of Valve Covers and Intake Manifold
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9F479 | MAP (manifold absolute pressure) sensor |
| 2 | 9F991 | TB (throttle body) assembly |
| 3 | 9W276 | Fuel line support bracket (2 required) |
| 4 | 9424 | Intake manifold assembly (2 required) |
| 5 | 12K073 | CMP (camshaft position) sensor |
| 6 | 9D290 | Oil pressure sensor assembly |
| 7 | 8592 | Coolant outlet connector assembly |
| 8 | 6019 | Cylinder front cover assembly |
| 9 | 9K462 | Coolant outlet connector gasket (2 required) |
| 10 | 6584 | Intake manifold gasket (2 required) |
| 11 | 9S455 | Intake manifold assembly |
| 12 | 9E936 | Intake manifold gasket (2 required) |
