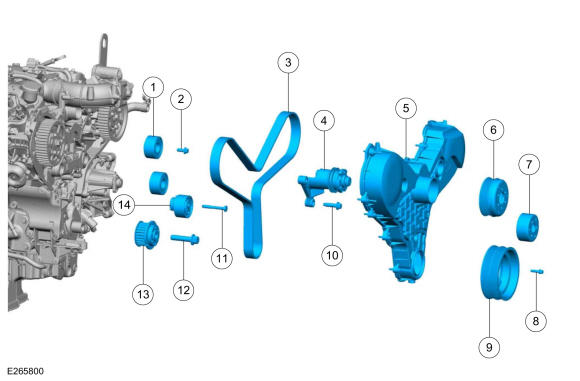

Exploded View Of Timing Belt Cover and Timing Belt
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6C348 | Timing belt routing pulley assembly (2 required) |
| 2 | W500433 | Timing belt routing pulley bolt (2 required) |
| 3 | 6K288 | Camshaft drive belt |
| 4 | 8609 | Fan mounting bracket and bearing assembly |
| 5 | 6019 | Cylinder front cover assembly |
| 6 | 8610 | Fan pulley |
| 7 | 8509 | Coolant pump pulley |
| 8 | 6A345 | Crankshaft vibration damper bolt (6 required) |
| 9 | 6316 | Crankshaft vibration damper assembly |
| 10 | W500244 | Fan mounting bracket and bearing assembly bolt (3 required) |
| 11 | 6D339 | Timing belt tensioner bolt |
| 12 | 6A345 | Crankshaft pulley bolt |
| 13 | 6306 | Crankshaft sprocket |
| 14 | 6K254 | Timing belt tensioner assembly |
