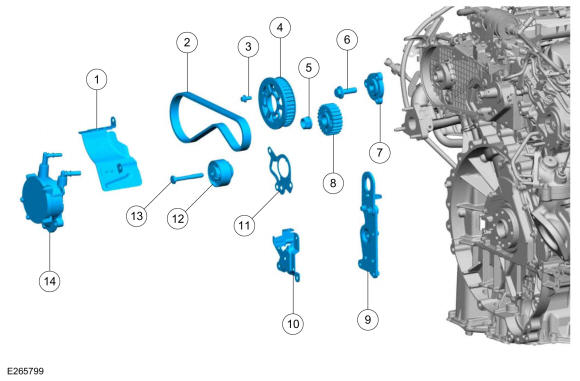

Exploded View Of Rear End Accessory Drive and Vacuum Pump
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9N454 | Exhaust manifold heat shield |
| 2 | 6K288 | Camshaft drive belt |
| 3 | W500022 | Camshaft pulley bolt (3 required) |
| 4 | 6K286 | Camshaft pulley assembly |
| 5 | 9D390 | Fuel injection pump nut |
| 6 | 6279 | Camshaft gear hub bolt |
| 7 | 6257 | Camshaft gear hub |
| 8 | 6A256 | Fuel injection pump pulley |
| 9 | 17K078 | Rear engine lifting eye assembly |
| 10 | 2A062 | Vacuum gauge bracket assembly |
| 11 | 2D224 | Vacuum pump gasket |
| 12 | 6K254 | Timing belt tensioner assembly |
| 13 | W500315 | Timing belt tensioner bolt |
| 14 | 2A451 | Vacuum pump assembly |
