Exploded View Of LH of Engine
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

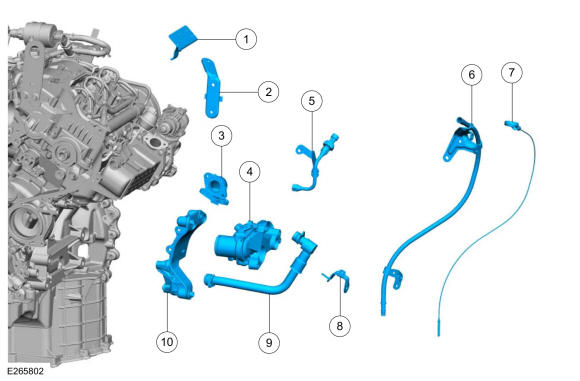

LH View 1
| Item | Part Number | Description |
|---|---|---|
| 1 | 14C508 | Wiring harness-to-engine bracket |
| 2 | 9P995 | Fuel tube front support bracket |
| 3 | 9D477 | EGR valve-to-exhaust manifold tube assembly |
| 4 | 8A544 | Coolant inlet connector assembly |
| 5 | 9F459 | EGR EP (exhaust pressure) valve tube assembly |
| 6 | 6B667 | Oil level tube and indicator assembly |
| 7 | 6750 | Oil level indicator |
| 8 | 9P995 | Fuel tube front support bracket |
| 9 | 9Y438 | EGR coolant inlet tube assembly |
| 10 | 8D611 | LH FEAD (front end accessory drive) bracket |

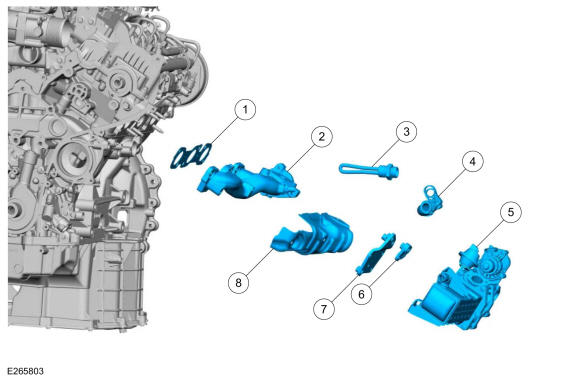

LH View 2
| Item | Part Number | Description |
|---|---|---|
| 1 | 9448 | LH exhaust manifold gasket |
| 2 | 9431 | LH exhaust manifold |
| 3 | 6A051 | Engine block heater assembly |
| 4 | 9Y439 | EGR cooler outlet hose assembly |
| 5 | 9U438 | EGR cooler assembly |
| 6 | 9F465 | EGR cooler mounting bracket |
| 7 | 9F465 | EGR cooler mounting bracket |
| 8 | 9N454 | LH exhaust manifold heat shield |
