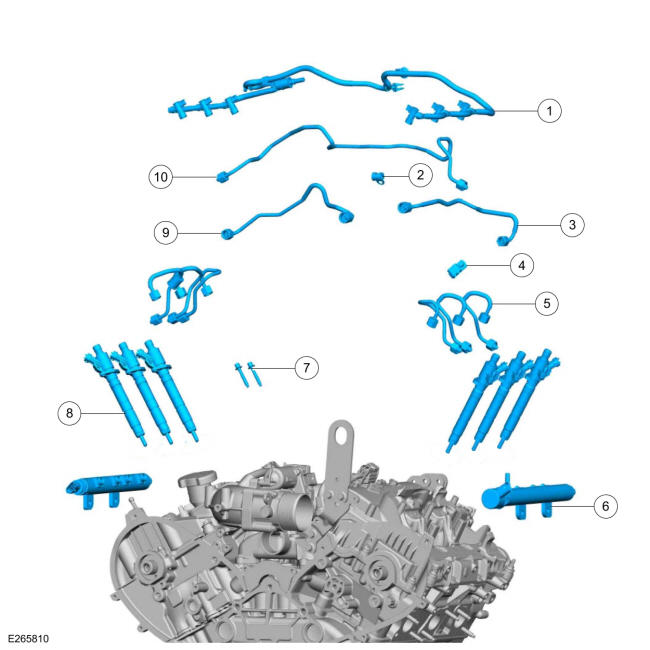

Exploded View Of Fuel Injectors and Tubes
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9K022 | Fuel leak back tube assembly |
| 2 | 9A317 | Fuel hose clips (2 required) |
| 3 | 9F911 | LH fuel manifold supply tube |
| 4 | 9A317 | Fuel line clip (3 required) |
| 5 | 9C993 | Fuel injector inlet tube assembly (6 required) |
| 6 | 9D280 | Fuel manifold assembly (2 required) |
| 7 | 9L535 | Fuel injector clamp bolt (12 required) |
| 8 | 9K546 | Fuel injector and holder assembly (6 required) |
| 9 | 9F911 | RH fuel manifold supply tube |
| 10 | 9E920 | Fuel injection pump distribution balance tube assembly |
