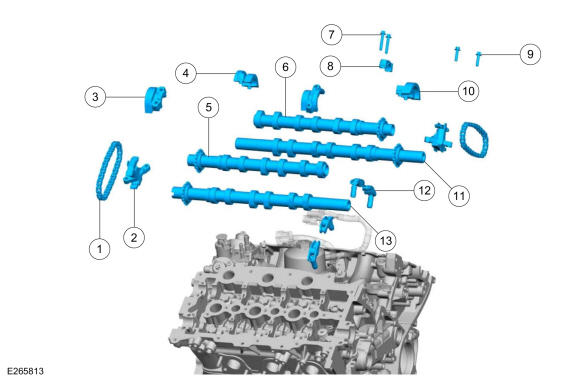

Exploded View Of Camshafts
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6268 | Timing chain (2 required) |
| 2 | 6L266 | Timing chain tensioner (2 required) |
| 3 | 6B284 | Camshaft bearing cap (part of cylinder head) |
| 4 | 6B280 | Camshaft bearing cap (2 required/ part of cylinder head) |
| 5 | 6A270 | RH intake camshaft |
| 6 | 6A271 | LH intake camshaft |
| 7 | W710256 | Camshaft bearing cap bolt (36 required) |
| 8 | 6A258 | Camshaft bearing cap (14 required/ part of cylinder head) |
| 9 | W500015 | Timing chain tensioner bolt (4 required) |
| 10 | 6B281 | Camshaft bearing cap (part of cylinder head)) |
| 11 | 6A273 | LH exhaust camshaft |
| 12 | 6G093 | Rocker arm and adjuster assembly (24 required) |
| 13 | 6A272 | RH exhaust camshaft |
