Section 420 (Engine - 3.0L Power Stroke Diesel (Specifications - Removal))
>>
Description And Operation
>>
Engine - Overview
>>
System Operation
System Operation
WARNING:
This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

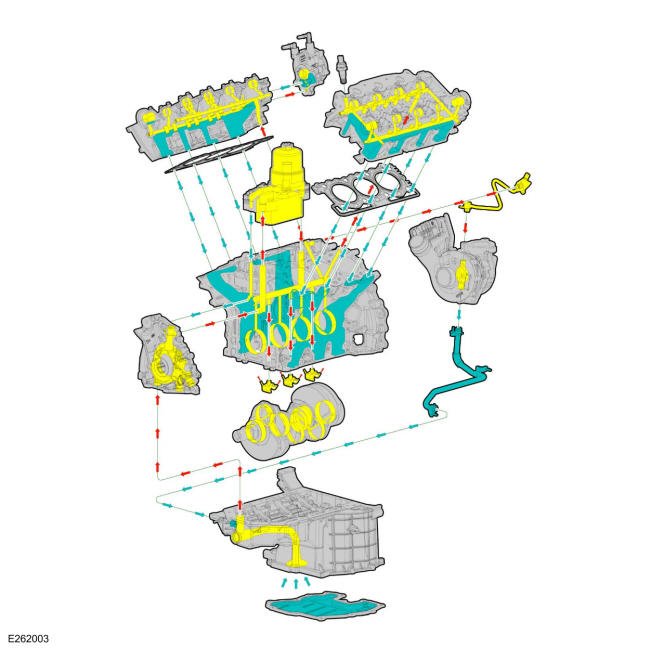

Lubrication System
Courtesy of FORD MOTOR COMPANY
Item
Description
Yellow
High pressure oil flow
Blue
Oil return/low pressure oil flow
