Spot Lamp Switch: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

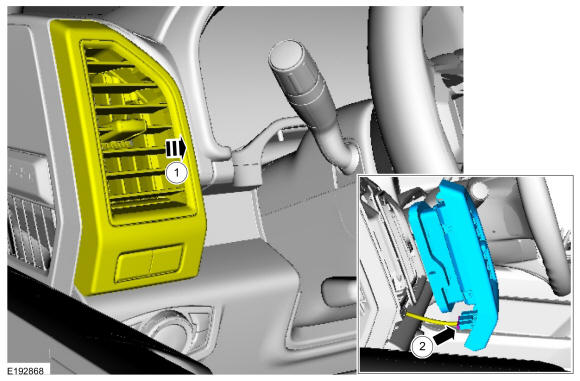

  1. Remove the LH instrument panel vent.

    1. Position the LH instrument panel vent forward.
    2. Disconnect the LH instrument panel vent electrical connector.

    GFD206053Courtesy of FORD MOTOR COMPANY

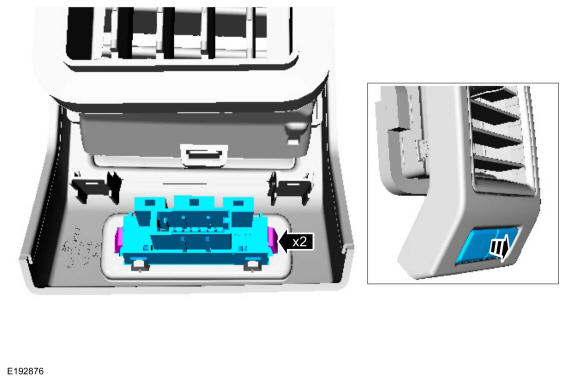

  2. Release the locking tabs and remove the spot lamp switch.
GFD206054Courtesy of FORD MOTOR COMPANY
