Rear Lamp Bulb: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
- Remove the rear lamp assembly. Refer to: Rear Lamp Assembly .

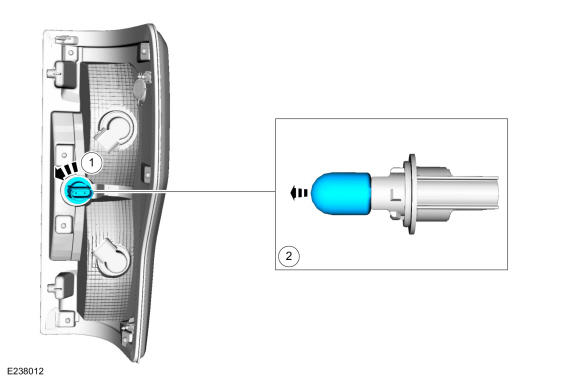

Stoplamp bulbs - vehicles with pick-up box
- Remove the stoplamp bulb.
- Turn the stoplamp bulb holder counterclockwise and remove the bulb holder.
- Separate the stoplamp bulb from the bulb holder.
Stoplamp bulbs - vehicles with frame mounted rear lamps

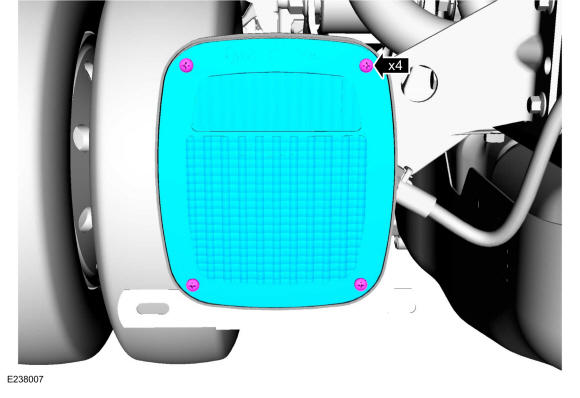

- Remove the screws and the rear lamp assembly lens.

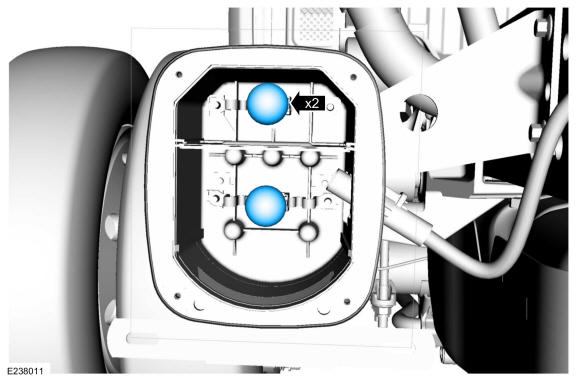

- Remove the stoplamp bulbs.

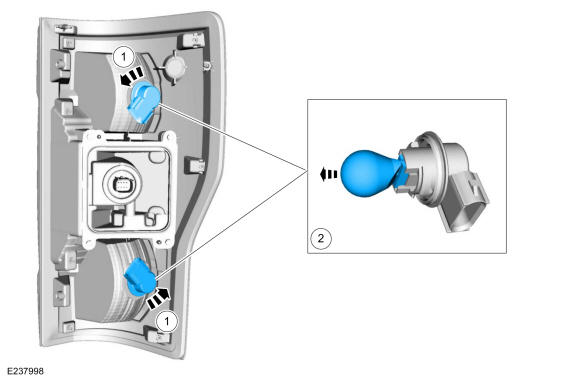

Reversing lamp bulb - vehicles without side obstacle detection
- Remove the reversing lamp bulb.
- Turn the reversing lamp bulb holder counterclockwise and remove the bulb holder.
- Separate the reversing lamp bulb from the bulb holder.
Reversing lamp bulb - vehicles with side obstacle detection

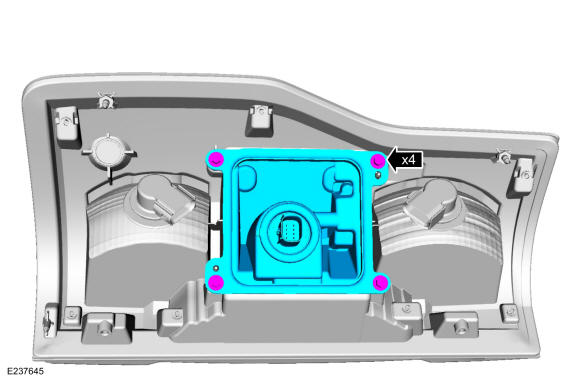

- Remove the screws and the side obstacle detection module assembly.

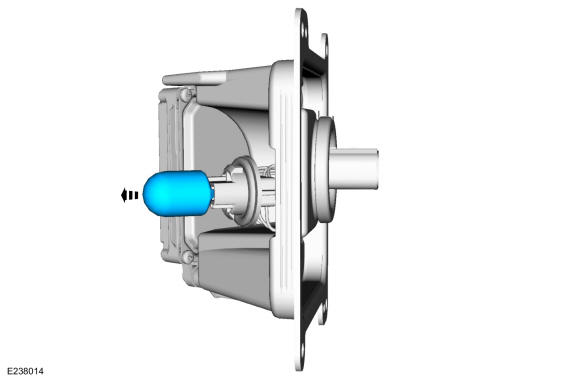

- Remove the reversing lamp bulb.
