Rear Lamp Assembly: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Rear lamp assembly without side obstacle detection - pick-up box mounted
NOTE:
LH rear lamp assembly is shown, RH rear lamp assembly is similar.

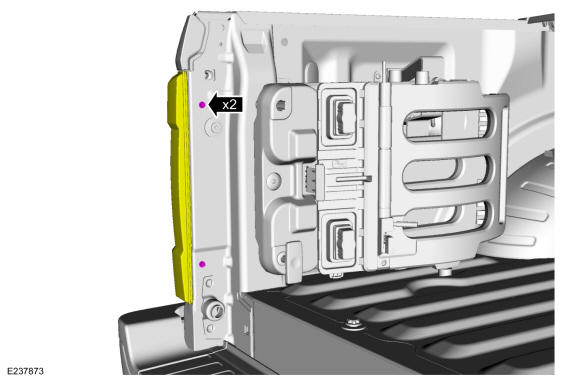

- Remove the screws and position the rear lamp assembly aside.

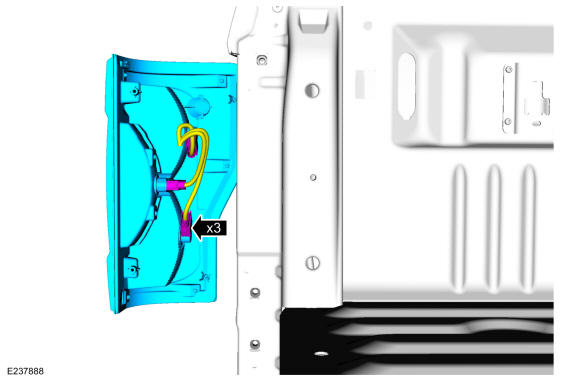

- Disconnect the electrical connectors and remove the rear lamp assembly.
Rear lamp assembly with side obstacle detection - pick-up box mounted
NOTE: LH rear lamp assembly is shown, RH rear lamp assembly is similar. - Remove the screws and position the rear lamp assembly aside.

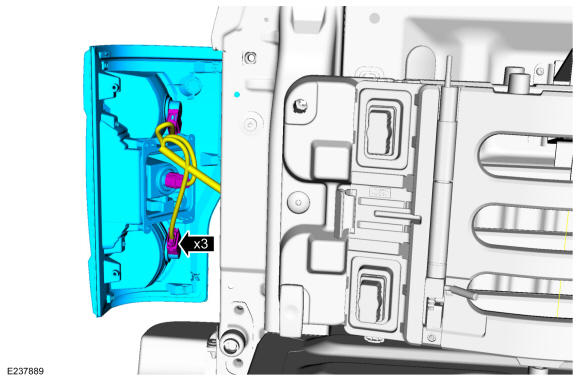

- Disconnect the electrical connectors and remove the rear lamp assembly.
Rear lamp assembly without side obstacle detection - frame mounted

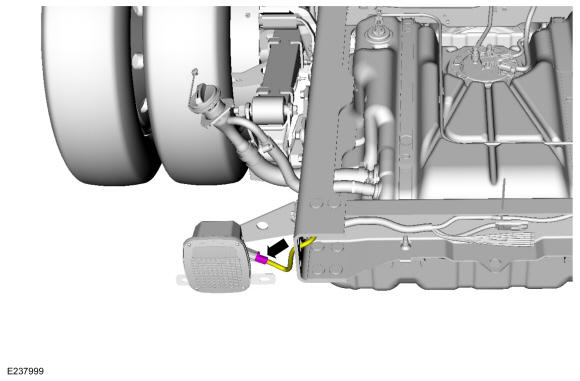

NOTE: LH rear lamp assembly is shown, RH rear lamp assembly is similar. - Disconnect the rear lamp assembly electrical connector.

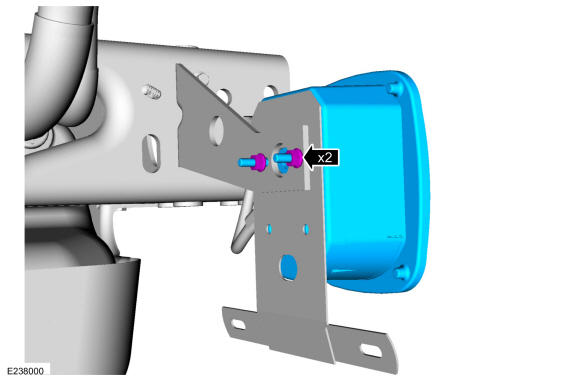

- Remove the nuts and the rear lamp assembly.
Center mounted rear lamp assembly

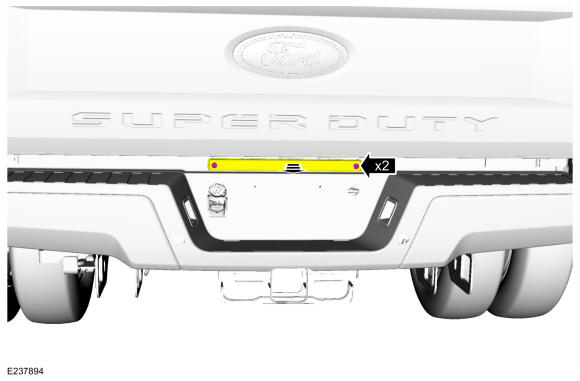

- Remove the screws and position the center rear lamp assembly out.

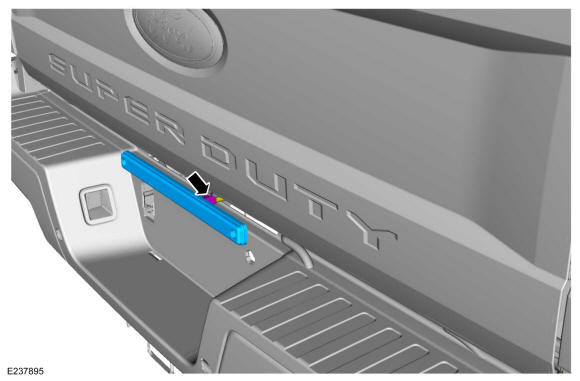

- Disconnect the electrical connector and remove the center rear lamp assembly.
