High Mounted Stoplamp: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws and position the high mounted stoplamp.
    GFD206028Courtesy of FORD MOTOR COMPANY

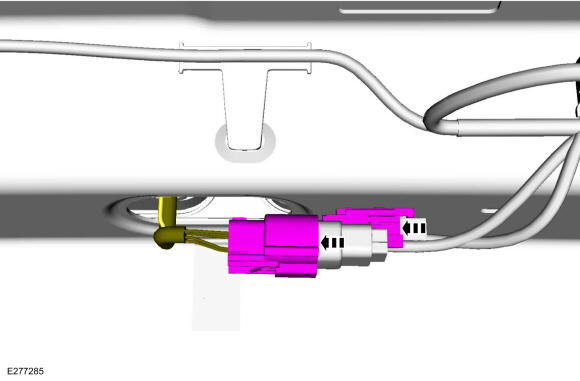

  2. NOTE: Access the electrical connector through the opening located behind the high mounted stoplamp.
    NOTE: The electrical connector is shown from inside the cab without the headliner for clarity.

    Disconnect the high mounted stoplamp electrical connector.

    GFD206029Courtesy of FORD MOTOR COMPANY
    NOTE: Carry out the following steps only if replacing high mounted stoplamp bulbs.

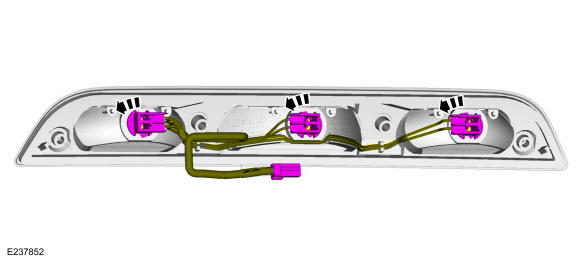

  3. Remove, as required, the bulb holder by turning counter clock-wise.
    GFD206030Courtesy of FORD MOTOR COMPANY

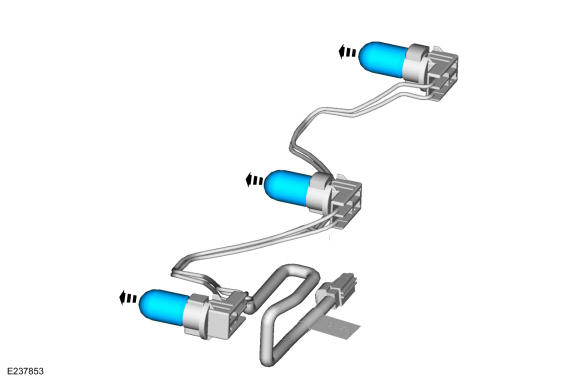

  4. Remove as required, the high mounted stoplamp bulb.
GFD206031Courtesy of FORD MOTOR COMPANY
