Headlamp Bulb: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All halogen bulbs

Remove the headlamp assembly. Refer to: Headlamp Assembly .

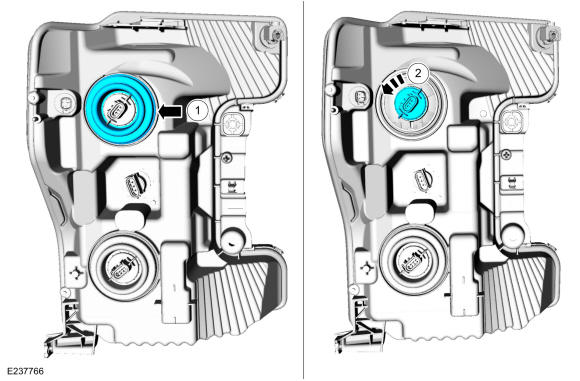

Upper halogen bulb
Remove the upper halogen headlamp bulb.
1. Remove the headlamp bulb seal.
2. Turn the headlamp bulb counterclockwise.
Courtesy of FORD MOTOR COMPANY

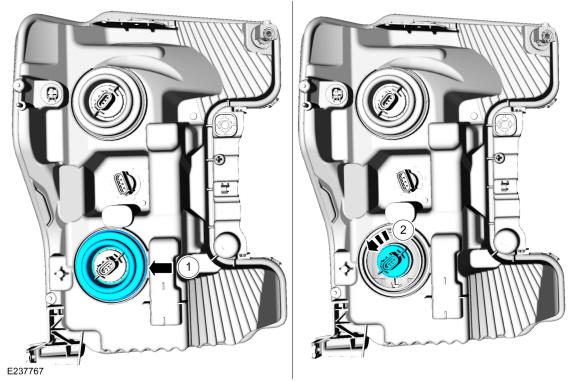

Lower halogen bulb
Remove the lower halogen headlamp bulb.
1. Remove the headlamp bulb seal.
2. Turn the headlamp bulb counterclockwise.
Courtesy of FORD MOTOR COMPANY

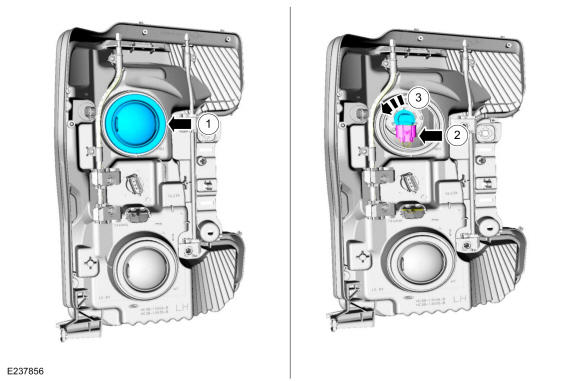

Upper halogen bulb-vehicles equipped with daytime running lamps
Remove the upper halogen headlamp bulb.
1. Remove the headlamp bulb cover.
2. Disconnect the headlamp bulb electrical connector.
3. Turn the headlamp bulb counterclockwise.
Courtesy of FORD MOTOR COMPANY

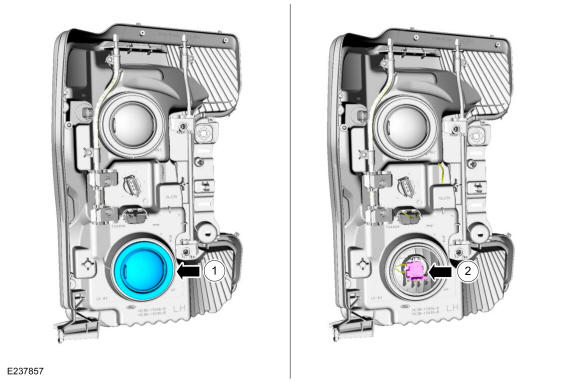

Daytime running lamp bulb
1. Remove the headlamp bulb cover.
2. Disconnect the daytime running lamp bulb electrical connector.
Courtesy of FORD MOTOR COMPANY

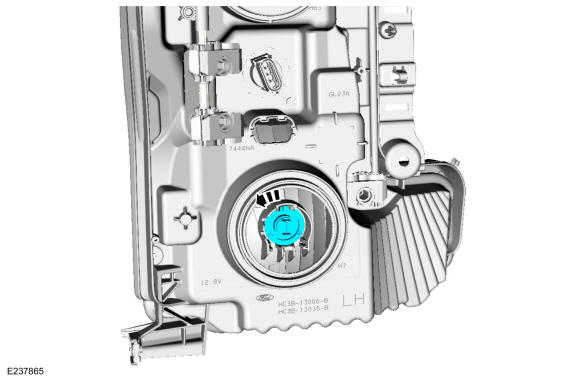

Turn the daytime running lamp bulb counterclockwise and remove the bulb.

Courtesy of FORD MOTOR COMPANY
