Headlamp Assembly: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
All headlamp assemblies
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the radiator grille. Refer to: Radiator Grille .

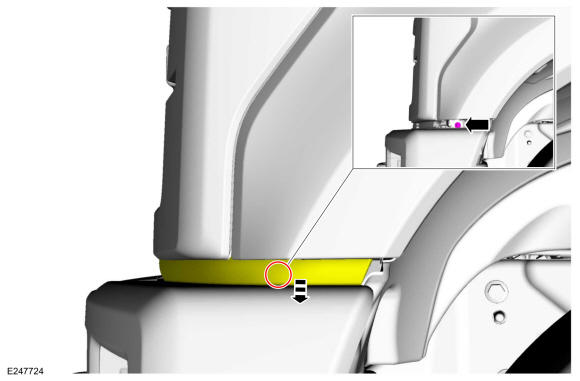

- Position the bumper seal down and remove the screw.
Torque: 28 lb.in (3.2 Nm)

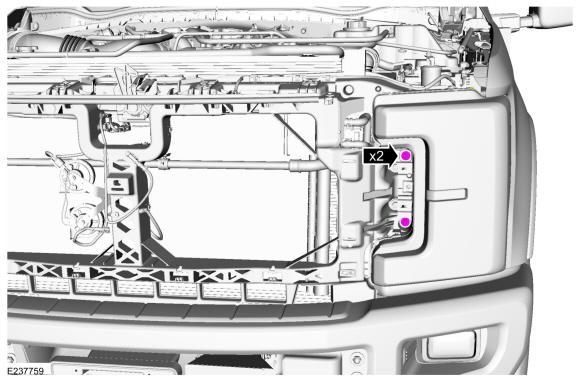

- Remove the front headlamp assembly bolts.
Torque: 28 lb.in (3.2 Nm)

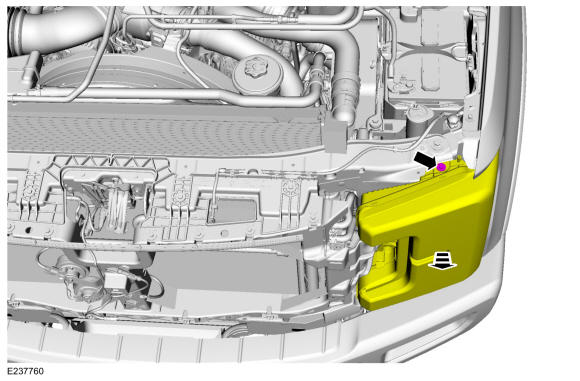

- Remove the bolt and position the headlamp assembly forward.
Torque: 28 lb.in (3.2 Nm)
Vehicles equipped with light emitting diode (LED) headlamp assemblies

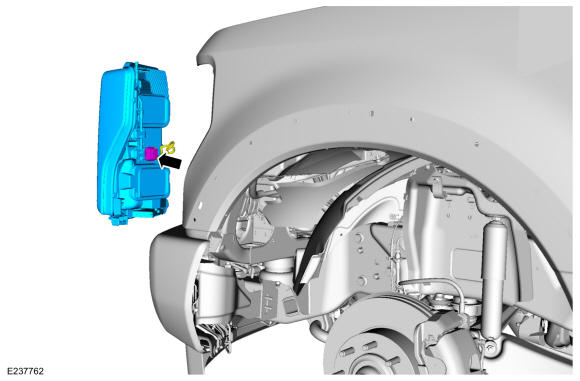

- Disconnect the electrical connector and remove the headlamp assembly.
Vehicles equipped with halogen headlamp assemblies

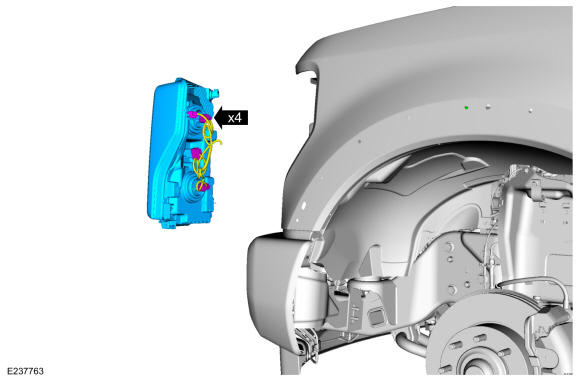

- Disconnect the electrical connectors and remove the headlamp assembly.
Vehicles equipped with daytime running lamps

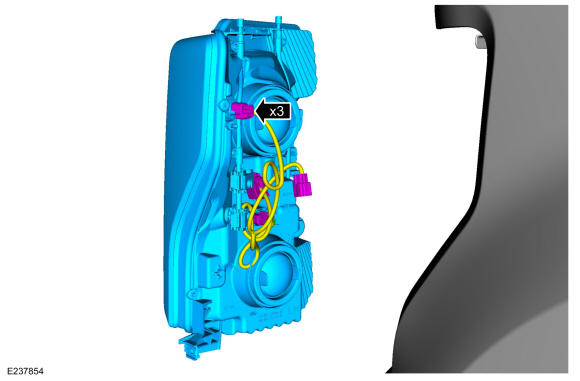

- Disconnect the electrical connectors and remove the headlamp assembly.
