Front Turn Signal Lamp Bulb: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp assembly. Refer to: Headlamp Assembly .
  2. Remove the turn signal lamp bulb.

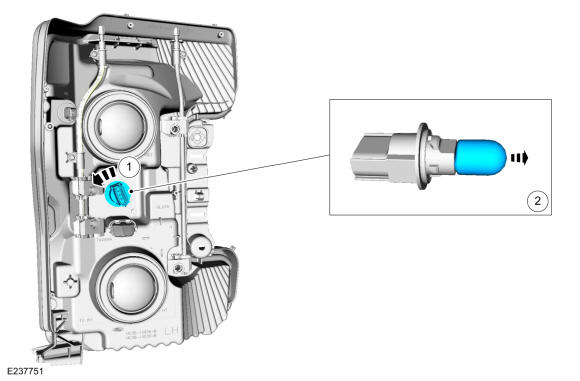

    1. Turn the bulb holder counterclockwise and remove the bulb holder assembly.
    2. Separate the turn signal lamp bulb from the bulb holder.

GFD206013Courtesy of FORD MOTOR COMPANY
