Front Fog Lamp: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH fog lamp is shown, RH is similar.
- Remove the front bumper. Refer to: Front Bumper .
-

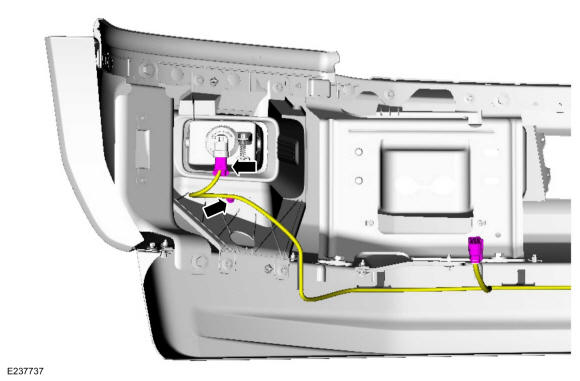

NOTE: halogen bulb shown, LED lamp is similar.
Disconnect the fog lamp electrical connector, separate the wiring guide and position the harness aside.
- Remove the bolts, release the tabs and remove the fog lamp assembly.
