High-Pressure Fuel Pump: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.

NOTE: The drive lobe for the high-pressure fuel pump must be at BDC (bottom dead center) for the high-pressure fuel pump installation.

With the help of an assistant, using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump drive lobe is at BDC.

Courtesy of FORD MOTOR COMPANY
Apply clean engine oil to the high-pressure fuel pump mounting pedestal bore, the drive lobe and the roller tappet. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Install the high-pressure fuel pump roller tappet.

Courtesy of FORD MOTOR COMPANY
Install a new high-pressure fuel pump O-ring seal. Lubricate with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

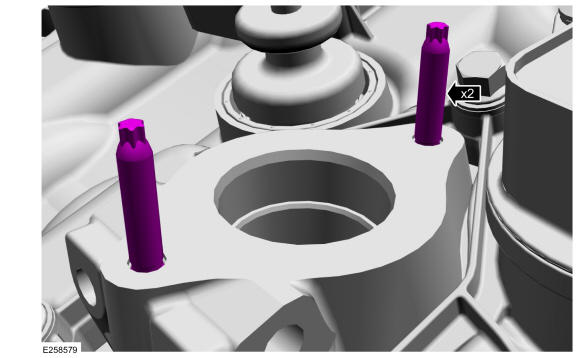

If removed, install and tighten the high-pressure fuel pump mounting studs.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
Install the high-pressure fuel pump, then install the mounting nuts finger tight. Alternately tighten each high-pressure fuel pump nut one complete revolution until seated. Tighten the fuel high-pressure fuel pump nuts in the following 2 stages.
Torque:Stage 1: 89 lb.in (10 Nm) | Stage 2: 30 deg.

Courtesy of FORD MOTOR COMPANY
NOTE: The fuel high-pressure fuel pump supply tube must be installed with the 90 degree spring lock end installed to the port fuel rail; if it is installed backwards a check valve will prevent the engine from running properly.

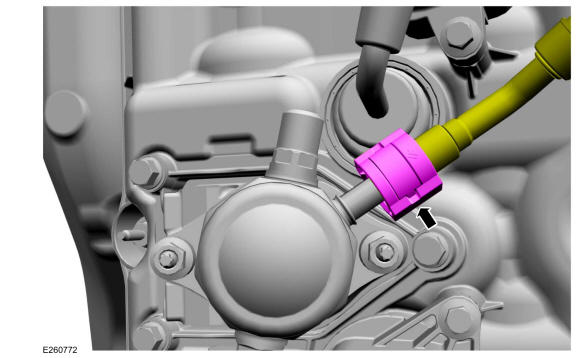

Connect the high-pressure fuel pump fuel feed quick release coupling. Refer to QUICK RELEASE COUPLING

Courtesy of FORD MOTOR COMPANY
NOTE: In stage 6, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 37 lb.ft (50 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.

NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas in the chart below.

Courtesy of FORD MOTOR CO.

NOTE: Make sure that a new high-pressure fuel tube is installed.

Install the high-pressure fuel tube and retainers, tighten the high-pressure fuel tube flare nuts and retainers finger tight.

Torque:Stage 1: Tighten the high-pressure fuel tube bolt to : 89 lb.in (10 Nm) | Stage 2: Tighten the high-pressure fuel tube stud-bolt to : 89 lb.in (10 Nm) | Stage 3: Tighten the high-pressure fuel tube stud-bolt an additional : 30 deg |.Stage 4: Tighten the high-pressure fuel tube flare nuts to : 71 lb.in (8 Nm) | Stage 5: Tighten the high-pressure fuel tube flare nuts to : 89 lb.in (10 Nm) | Stage 6: Tighten the high-pressure fuel tube flare nuts an additional : 25 deg.

Courtesy of FORD MOTOR COMPANY
Install the high-pressure fuel line shield, then install and tighten the high-pressure fuel line shield retainers.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

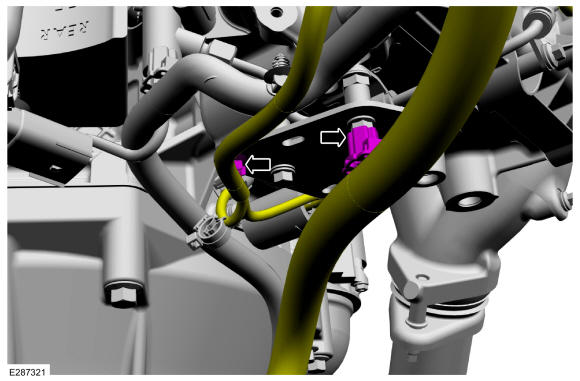

Attach the wiring harness retainers to high-pressure fuel line shield.

Courtesy of FORD MOTOR COMPANY
NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.

Install the fuel injection pump noise insulator, then engage the retainer.

Courtesy of FORD MOTOR COMPANY
Connect the high-pressure fuel pump electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the intake manifold. Refer to: Intake Manifold .
Pressurize the fuel system. Refer to: Fuel System Pressure Release .
