Fuel Charging and Controls - Component Location: Notes
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

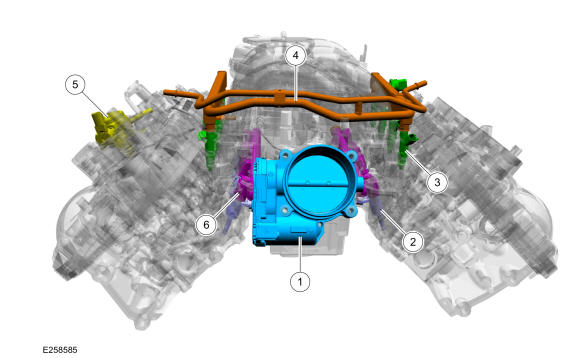

| Item |
Description |
| 1 |
Throttle body |
| 2 |
Direct injection fuel injector |
| 3 |
Port injection fuel injector |
| 4 |
Port injection fuel rail assembly |
| 5 |
High-pressure fuel pump |
| 6 |
Direct injection fuel rail |
