Spark Plug Wire: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
- Disconnect the fuel pump electrical connector.
- Detach the retainer and remove the fuel pump cover.
 Courtesy of FORD MOTOR COMPANY
|

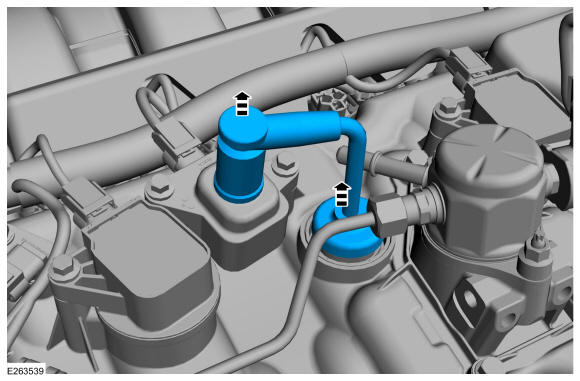

- Disconnect and remove the spark plug wire.
 Courtesy of FORD MOTOR COMPANY
|
