Remote Mount Ignition Coil: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

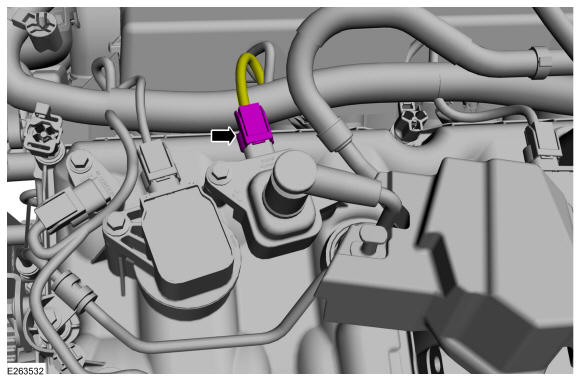

- Disconnect the electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

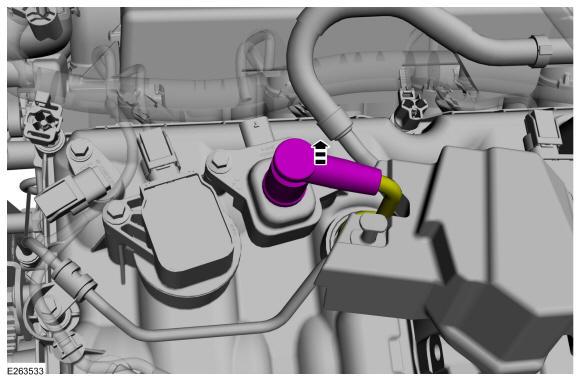

- Disconnect the spark plug wire connector and position it aside.
 Courtesy of FORD MOTOR COMPANY
|

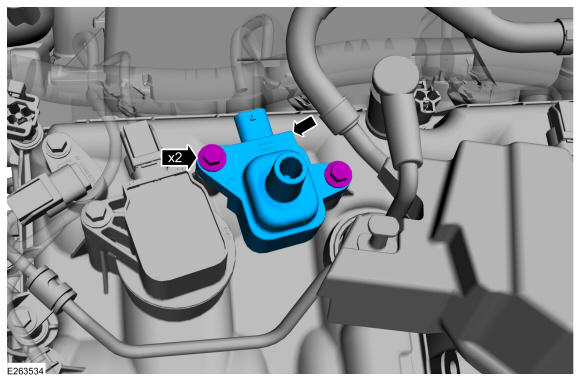

- Remove the bolts and the remote mount ignition coil.
Torque: Stage 1: 62 lb.in (7 Nm) | Stage 2: 45°
 Courtesy of FORD MOTOR COMPANY
|
