Transmission Fluid Heater Coolant Control Valve: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.
Loosen the pressure relief cap.

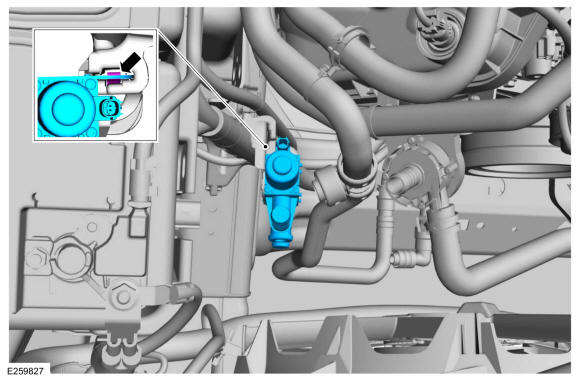

- Disconnect the coolant control valve electrical connector.

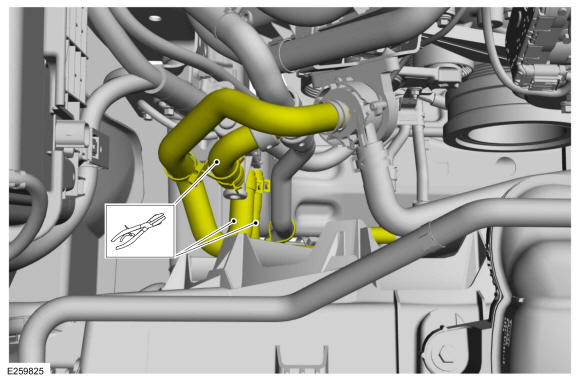

- Clamp off the coolant control valve hoses.

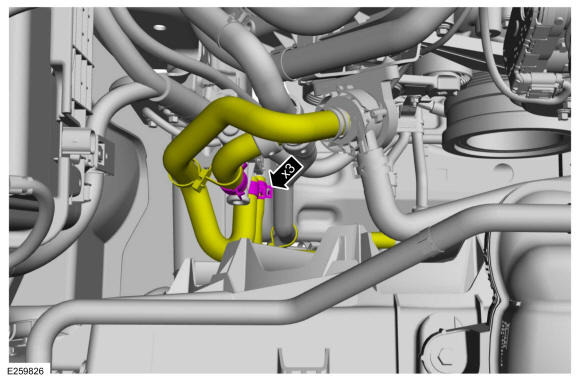

- Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
- Release the tab and remove the transmission fluid heater coolant control valve.
