Transmission Fluid Cooler Coolant Hose: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

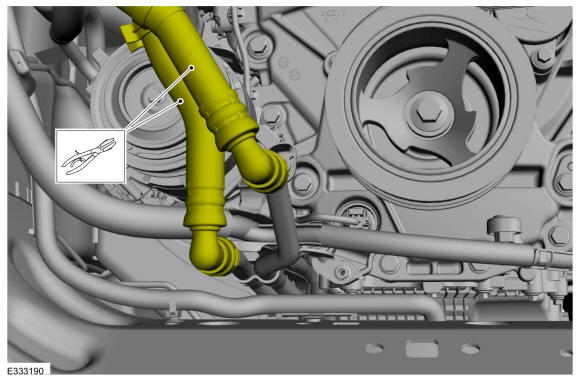

Clamp off the coolant hoses. Use the General Equipment: Locking Pliers

Courtesy of FORD MOTOR COMPANY

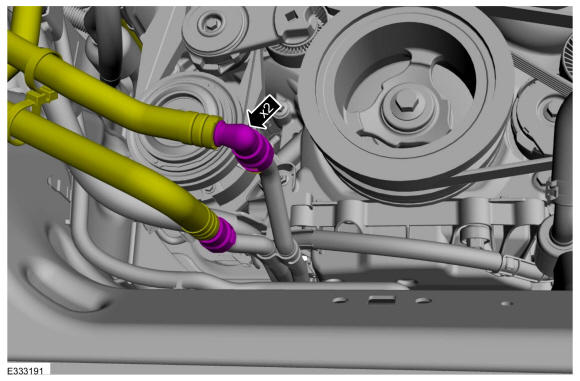

Follow the directions to release quick release coupling type 25. Disconnect the coolant tubes. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

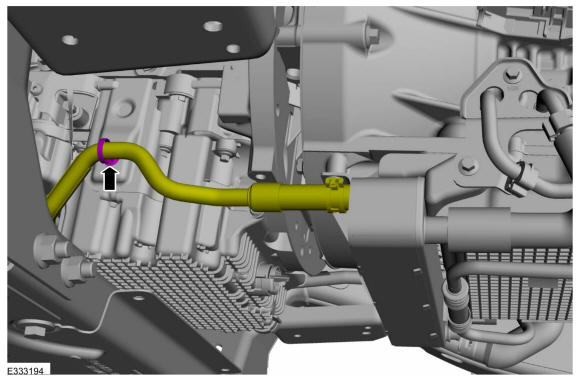

Remove the nut and position the transmission fluid cooler coolant tube aside.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the bolt and position the transmission fluid cooler coolant tube aside.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Detach the coolant hose retainer.

Courtesy of FORD MOTOR COMPANY
Detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
Remove the sway bar bracket nuts and lower the front sway bar.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
- Follow the directions to release quick release coupling type 25. Remove the coolant tube. Refer to: Quick Release Coupling .
- Release the clamp and remove the transmission fluid cooler coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

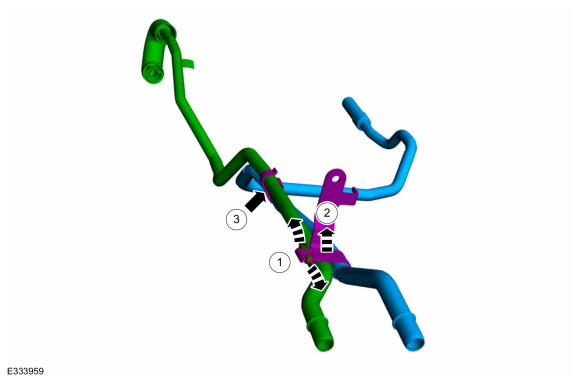

1. Bend the tabs up.
2. Open the clamp.
3. Separate the transmission fluid cooler coolant hoses.

Courtesy of FORD MOTOR COMPANY
