Engine Cooling - Component Location
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

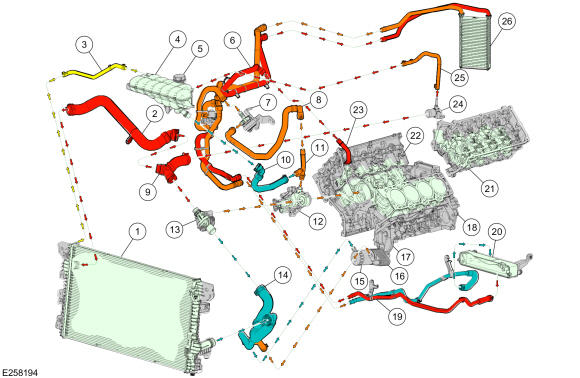

Coolant temperature will vary with ambient temperature and load. Temperatures shown are for ambient temperature of 38° C (100° F). Red arrows indicate a temperature over 90° C (194° F), Orange arrows indicate a temperature of approximately 90° C (194° F), Blue arrows indicate a temperature below 90° C (194° F).
| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Upper radiator hose and clamp assembly |
| 3 | Radiator-to-degas bottle hose |
| 4 | Degas bottle |
| 5 | Pressure relief cap |
| 6 | Heater hose assembly |
| 7 | Cabin heater coolant pump |
| 8 | Coolant outlet hose |
| 9 | Coolant bypass T assembly |
| 10 | Degas bottle-to-engine hose |
| 11 | Heater outlet tube |
| 12 | Coolant pump |
| 13 | Thermostat housing |
| 14 | Lower radiator hose |
| 15 | Oil filter |
| 16 | Oil cooler |
| 17 | Oil filter adapter |
| 18 | Cylinder block |
| 19 | Transmission fluid cooler outlet tube |
| 20 | Transmission fluid cooler |
| 21 | Cylinder head LH |
| 22 | Cylinder head RH |
| 23 | Heater inlet tube |
| 24 | Coolant outlet connector |
| 25 | Degas bottle-to-engine hose |
| 26 | Heater core |
