Valve Cover LH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    GFD461069Courtesy of FORD MOTOR COMPANY
  2. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using the special tools, install new VCT variable force solenoid seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.

    GFD461070Courtesy of FORD MOTOR COMPANY
  3. Install a new gasket.
    GFD461071Courtesy of FORD MOTOR COMPANY
  4. NOTE: If the valve cover is not installed and the fasteners tightened within 5 minutes, the sealant must be removed and the sealing area cleaned.

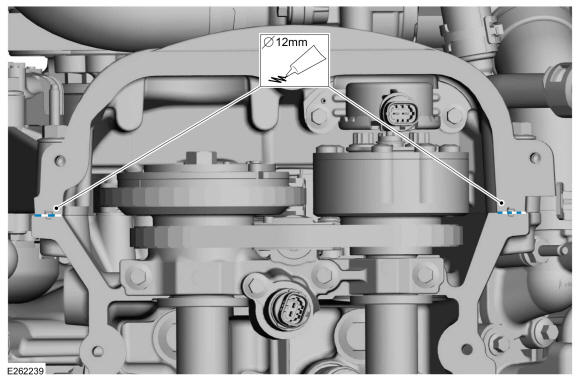

    Apply an 12 mm (0.47 in) bead of silicone gasket and sealant to the engine front cover-to-cylinder head joints.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD461072Courtesy of FORD MOTOR COMPANY
  5. Install the valve cover and tighten the bolts.

    Torque: 89 lb.in (10 Nm)

    Fig 1: LH Valve Cover Tightening Sequence
    GFD461073Courtesy of FORD MOTOR COMPANY
    1. Push the oil level indicator tube into the engine.
    2. Rotate the oil level indicator tube clockwise.
    3. Verify the tab is locked in place.
    4. Install the oil level indicator.
    GFD461074Courtesy of FORD MOTOR COMPANY

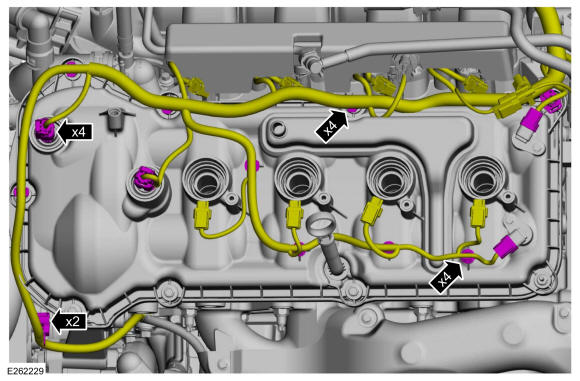

    • Connect the engine wiring harness electrical connectors.

    • Attach the wiring harness retainers.

    GFD461062Courtesy of FORD MOTOR COMPANY
  8. Install the LH ignition coils. Refer to: Ignition Coil-On-Plug .
  9. Install the ground wire and nut.

    Torque: 53 lb.in (6 Nm)

    GFD461061Courtesy of FORD MOTOR COMPANY

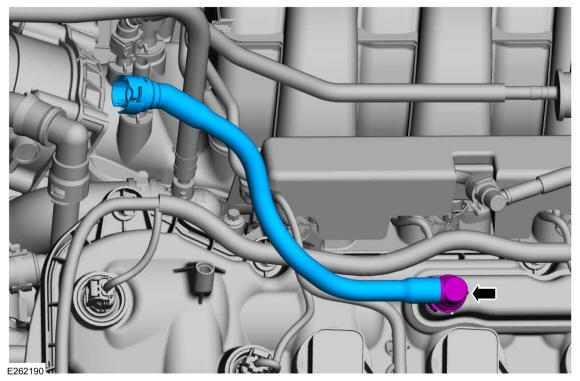

  10. Position the PCV tube and connect the quick release coupling. Refer to: QUICK RELEASE COUPLING .
    GFD461060Courtesy of FORD MOTOR COMPANY
  11. Install the following items:

    1. Refer to: Air Cleaner .
    2. Refer to: Air Cleaner Outlet Pipe .
