Timing Chain Tensioner: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

LH timing chain tensioner

1. Compress the primary timing chain tensioner plunger, using an edge of a vise.
2. Install a suitable pin into the hole of the tensioner housing to hold the plunger in place during installation.
Courtesy of FORD MOTOR COMPANY
NOTE: The timing chain must remain in its original position on the crankshaft sprocket using the scribed marks, or damage to valves and pistons will result.

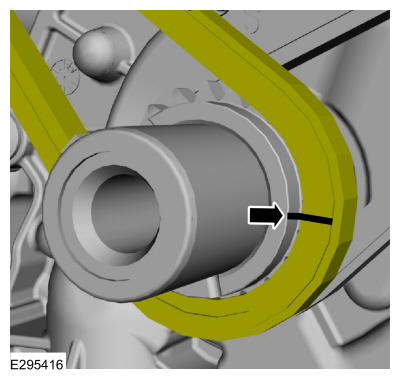

Verify the crankshaft sprocket and LH timing chain scribe marks are still in alignment.

Courtesy of FORD MOTOR COMPANY
NOTE: The timing chain must remain in its original position on the VCT unit using the scribed marks, or damage to valves and pistons will result.

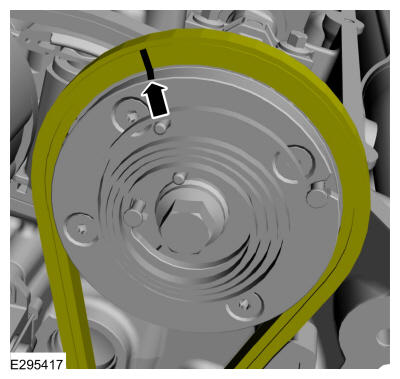

Verify the VCT unit and LH timing chain scribe marks are still in alignment.

Courtesy of FORD MOTOR COMPANY

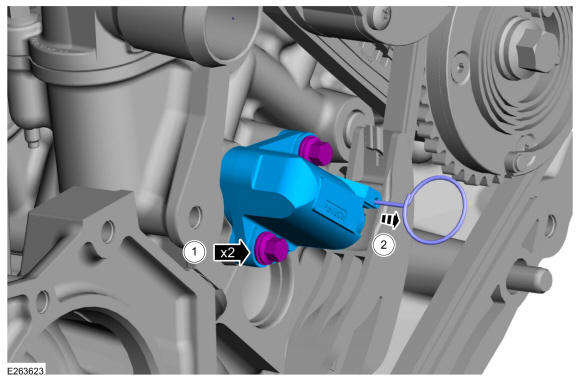

1. Install the LH primary timing chain tensioner and bolts.
  Torque:| Stage 1: 89 lb.in (10 Nm) | Stage 2: 25°
2. Remove the holding pin from the tensioner.
Courtesy of FORD MOTOR COMPANY

RH timing chain tensioner
1. Compress the primary timing chain tensioner plunger, using an edge of a vise.
2. Install a suitable pin into the hole of the tensioner housing to hold the plunger in place during installation.
Courtesy of FORD MOTOR COMPANY
NOTE: The timing chain must remain in its original position on the crankshaft sprocket using the scribed marks, or damage to valves and pistons will result.

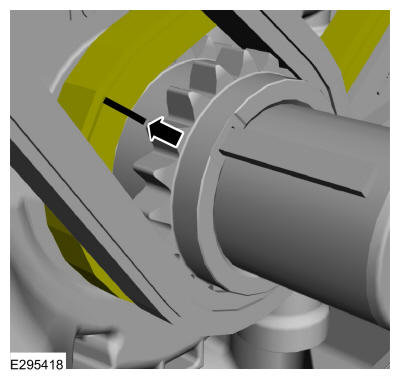

Verify the crankshaft sprocket and RH timing chain scribe marks are still in alignment.

Courtesy of FORD MOTOR COMPANY
NOTE: The timing chain must remain in its original position on the VCT unit using the scribed marks, or damage to valves and pistons will result.

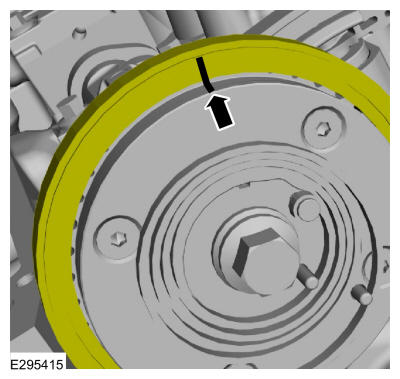

Verify the VCT unit and RH timing chain scribe marks are still in alignment.

Courtesy of FORD MOTOR COMPANY
1. Install the RH primary timing chain tensioner and bolts.
  Torque:| Stage 1: 89 lb.in (10 Nm) | Stage 2: 25°
2. Remove the holding pin from the tensioner.
Courtesy of FORD MOTOR COMPANY

RH and LH timing chain tensioners
Install the engine front cover. Refer to: Engine Front Cover .
