Oil Pan: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

4x2/4x4

Install a new oil pan gasket.

Courtesy of FORD MOTOR COMPANY
Install the new oil pump pickup seal and lubricate with clean engine oil.

Courtesy of FORD MOTOR COMPANY
NOTE: If the oil pan is not installed and the fasteners tightened within 5 minutes, the sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage. If this timing cannot be met, tighten fasteners 7, 8, 9 and 10 to 8 Nm (71 lb-in) within 5 minutes of applying the sealer and final torque all of the fasteners within 1 hour of applying the sealer.

NOTE: If the engine front cover has been removed, it is only necessary to apply sealant to the crankshaft rear seal retainer plate-to-cylinder block sealing surfaces.

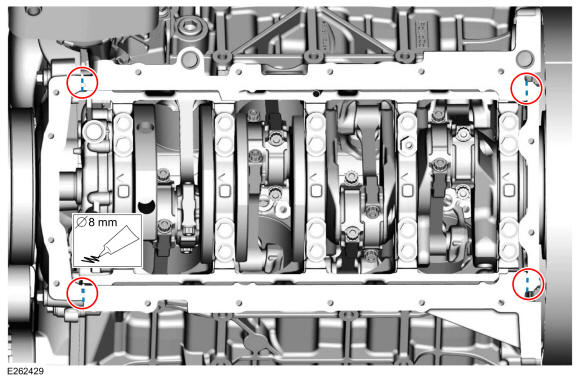

Apply an 8 mm (0.31 in) bead of silicone gasket and sealant to the crankshaft rear seal retainer plate-to-cylinder block sealing surfaces and the engine front cover-to-cylinder block sealing surfaces.

Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: Fastener locations 7, 13 and 16 are stud bolts.

Using a new gasket, install the oil pan and the bolts.

Torque:| Stage 1: 18 lb.in (2 Nm) | Stage 2: 89 lb.in (10 Nm) | Stage 3: 45°

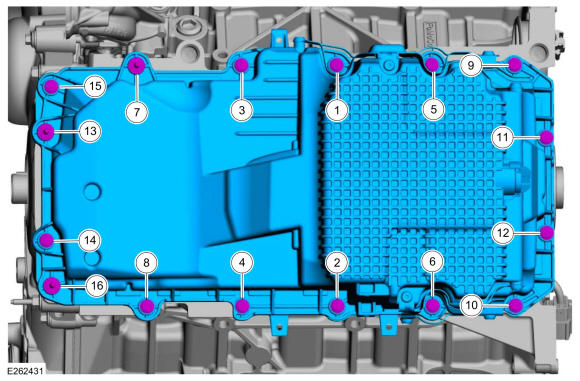

Fig 1: Oil Pan Tightening Sequence
Courtesy of FORD MOTOR COMPANY
1. Connect the A/C compressor electrical connectors.
2. Attach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
1. Install the nut.
  Torque: 106 lb.in (12 Nm)
2. Attach the wiring harness retainer.
3. Position the coolant tube and wiring harness brackets and install the nut.
  Torque: 115 lb.in (13 Nm)
Courtesy of FORD MOTOR COMPANY
Install the transmission cooler tube support bracket and the transmission-to-engine bolt.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the coolant hose quick release couplings.

Courtesy of FORD MOTOR COMPANY

4x4
Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
NOTE: It may be necessary to reposition the axle assembly to prevent interference with the steering components when installing the bolt.

Install the new upper front axle carrier mounting bushing nut and the bolt finger tight.

Courtesy of FORD MOTOR COMPANY
Install the new axle shaft housing carrier mounting bushing nut and the bolt finger tight.

Courtesy of FORD MOTOR COMPANY
Install the new lower front axle carrier mounting bushing bolt.
Torque: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the axle shaft housing carrier bushing bolt.
Torque: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the upper front axle carrier mounting bushing bolt.
Torque: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
Install the steering gear boot.

Courtesy of FORD MOTOR COMPANY
1. Position back the steering column shaft U-joint to the steering gear.
2. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

  Install a new steering column shaft bolt.

  Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the holding device from the steering wheel.

Courtesy of FORD MOTOR COMPANY

4x2/4x4
Install the following items:
1. Engine oil cooler. Refer to: Oil Cooler .
2. Transmission fluid cooler. Refer to: Transmission Fluid Cooler - 2.7L EcoBoost (238kW/324PS)/3.5L EcoBoost (272kW/370PS)/5.0L 32V Ti-VCT .
Install the crossmember, bolts and the nuts.
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
Position the stabilizer bar and install the new nuts.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the skid plate and bolts.

Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the underbody shield and the bolts.

Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped, install the underbody shield and fasteners.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped, install the skid plate and bolts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

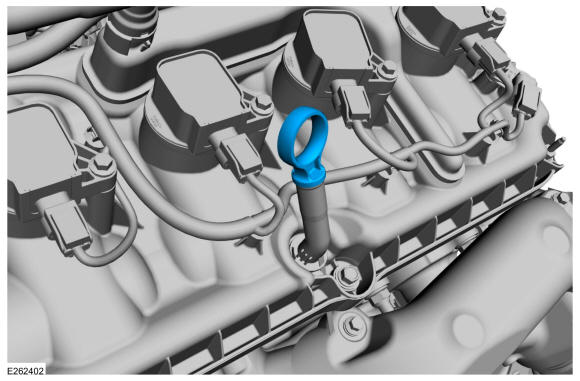

Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
