Exhaust Manifold RH: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
NOTE: If equipped.

Remove the bolts and the underbody shield.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Remove the bolts and the underbody shield.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Remove the bolts and the skid plate.

Courtesy of FORD MOTOR COMPANY
Remove the following items:
1. RH wheel and tire. Refer to: Wheel and Tire .
2. RH fender splash shield. Refer to: Fender Splash Shield .
3. Refer to: AIR CONDITIONING (A/C) COMPRESSOR - 5.0L 32V TI-VCT .
Remove the bolts and the RH exhaust manifold heat shield.

Courtesy of FORD MOTOR COMPANY
Remove the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts.
- Separate the pipe from the converter.
- Clean the exhaust mating surfaces.
Courtesy of FORD MOTOR COMPANY
Remove and discard the catalytic converter-to-LH exhaust manifold nuts.

Courtesy of FORD MOTOR COMPANY
Remove and discard the catalytic converter-to-RH exhaust manifold nuts.
- Separate the exhaust Y-pipe dual catalytic converter from the exhaust manifolds.
- Clean the exhaust mating surfaces.
Courtesy of FORD MOTOR COMPANY

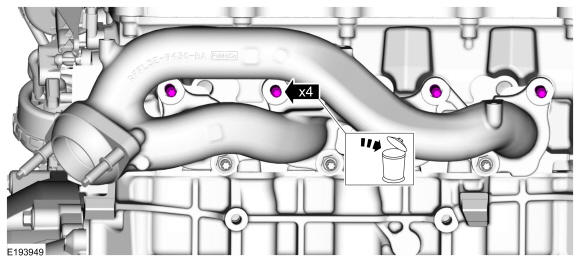

Remove and discard the RH exhaust manifold nuts.

Courtesy of FORD MOTOR COMPANY

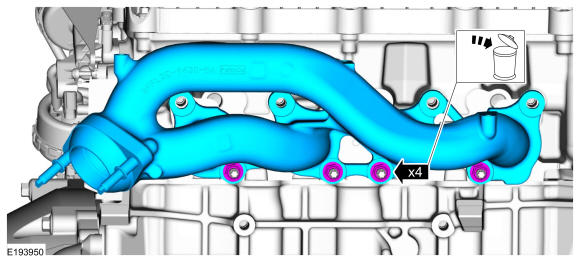

Remove and discard the RH exhaust manifold studs.

Courtesy of FORD MOTOR COMPANY

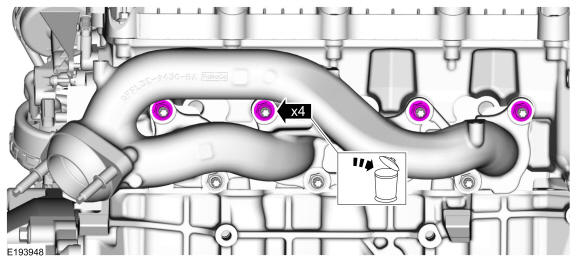

Remove and discard the nuts.
1. Remove the exhaust manifold.
2. Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .
Courtesy of FORD MOTOR COMPANY

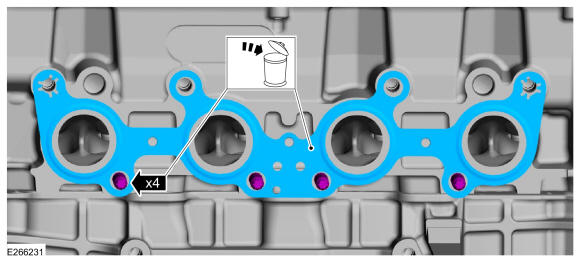

Remove and discard the gasket and studs.

Courtesy of FORD MOTOR COMPANY
