Exhaust Manifold RH: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

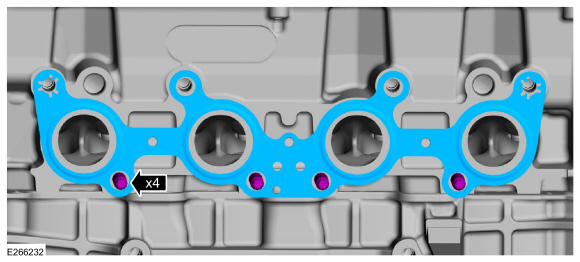

- Install new studs and new gasket.
Torque: 18 lb.ft (25 Nm)
-
NOTE: Do not tighten the exhaust manifold nuts at this time.

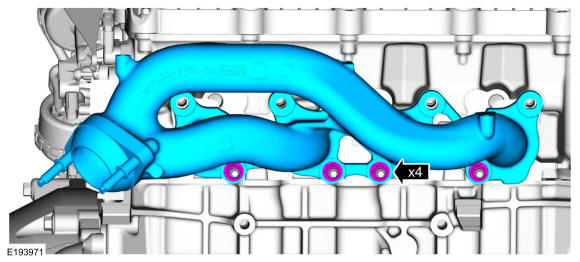

Install the exhaust manifold.

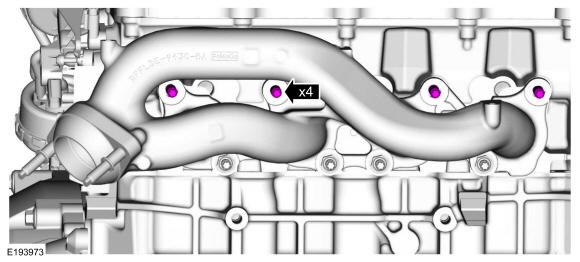

- Install the new nuts.
- Install new studs.
Torque: 18 lb.ft (25 Nm)
-
NOTE: Do not tighten the exhaust manifold nuts at this time.

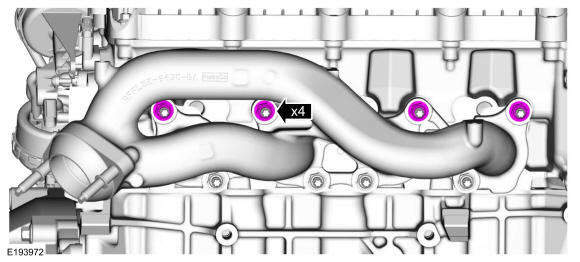

Install the remaining new nuts.
- Tighten the nuts.
Torque:| Stage 1: 18 lb.ft (24 Nm) | Stage 2: 24 lb.ft (32 Nm)
-
NOTE: Some replacement exhaust manifolds do not come with studs.

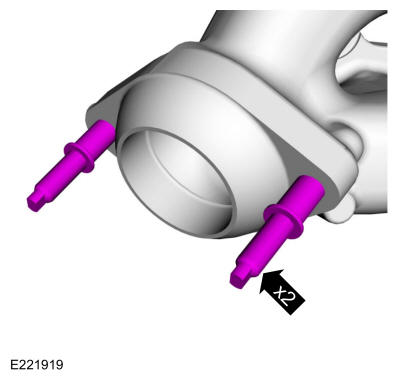

If necessary, install new studs.
Torque: 30 lb.ft (40 Nm)
- Position the exhaust Y-pipe dual catalytic converter onto the exhaust manifolds and loosely install new RH catalytic converter-to-exhaust manifold nuts.
- Loosely install new LH catalytic converter-to-exhaust manifold nuts.
- Tighten the nuts.
Torque: 1: 30 lb.ft (40 Nm) 2: 30 lb.ft (40 Nm)
- Tighten the nuts.
Torque: 1: 30 lb.ft (40 Nm) 2: 30 lb.ft (40 Nm)
- Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.
Torque: 1: 46 lb.ft (63 Nm) 2: 46 lb.ft (63 Nm)

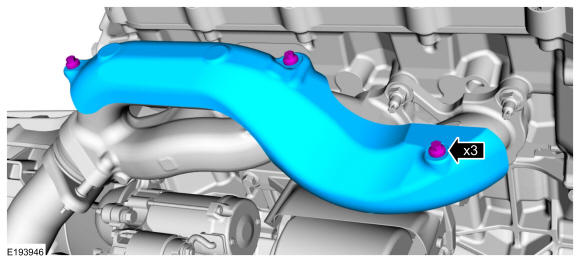

- Install the heat shield and bolts.
Torque: 106 lb.in (12 Nm)
- Install the following items:
- Refer to: AIR CONDITIONING (A/C) COMPRESSOR - 5.0L 32V TI-VCT . .
- RH fender splash shield. Refer to: Fender Splash Shield .
- RH wheel and tire. Refer to: Wheel and Tire .
-
NOTE: If equipped.
Install the skid plate and bolts.
Torque: 30 lb.ft (40 Nm)
-
NOTE: If equipped.
Install the underbody shield and fasteners.
Torque: 30 lb.ft (40 Nm)
-
NOTE: If equipped.
Install the underbody shield and the bolts.
Torque: 71 lb.in (8 Nm)
- Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
- Start the engine and check for exhaust leaks.
