Engine Mount RH: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. NOTE: RH shown, LH similar.

    Index-mark the hood hinge location to aid in hood installation.

    GFD459469Courtesy of FORD MOTOR COMPANY
  3. Remove the nuts and the hood.
    GFD459470Courtesy of FORD MOTOR COMPANY
  4. NOTE: LH shown, RH similar.

    1. Release the clip.
    2. Detach and position the hood shock aside.

    GFD460135Courtesy of FORD MOTOR COMPANY
  5. Remove the retainers and the radiator top shield.
    GFD460937Courtesy of FORD MOTOR COMPANY
  6. NOTE: If equipped.

    Remove the bolts and the underbody shield.

    GFD458868Courtesy of FORD MOTOR COMPANY
  7. NOTE: If equipped.

    Remove the bolts and the underbody shield.

    GFD458870Courtesy of FORD MOTOR COMPANY
  8. NOTE: If equipped.

    Remove the bolts and the skid plate.

    GFD458869Courtesy of FORD MOTOR COMPANY
  9. Remove the A/C compressor. Refer to: Air Conditioning (A/C) Compressor - 5.0L 32V Ti-VCT .
  10. Detach the heater hose retainers.
    GFD460938Courtesy of FORD MOTOR COMPANY
  11. Remove the RH exhaust manifold nut.
    GFD460939Courtesy of FORD MOTOR COMPANY

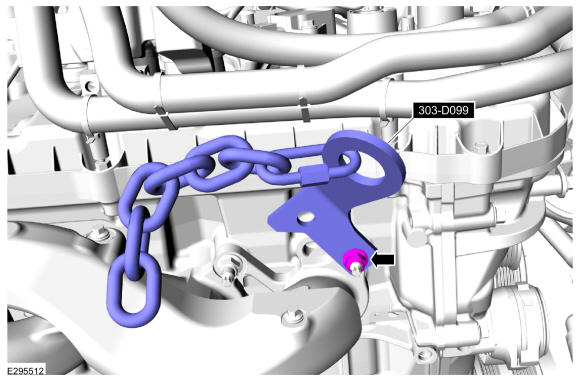

  12. Install the special tool, the exhaust manifold nut and a length of chain. Use Special Service Tool: 303-D099 (D94T-6000-C) Lifting Bracket, Engine.
    GFD460940Courtesy of FORD MOTOR COMPANY
    1. Install Special Service Tool: 303-F070 Support Bar, Engine.
    2. Attach the chain installed in the previous step to the hook on the special tool.
    GFD460941Courtesy of FORD MOTOR COMPANY
  14. Remove the following items:

    1. Refer to: Starter Motor .
    2. If equipped. Refer to: Front Driveshaft .

  15. NOTE: Only use hand tools when removing the engine mount nuts, stud bolts or damage to the engine mount can occur.

    Remove and discard the RH engine mount nuts and studs.

    GFD458881Courtesy of FORD MOTOR COMPANY
  16. Remove the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.

    • Clean and inspect the mating surfaces.

    GFD458871Courtesy of FORD MOTOR COMPANY
  17. NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Loosen the transmission mount-to-crossmember nuts.

    GFD458872Courtesy of FORD MOTOR COMPANY
  18. NOTE: Only use hand tools when loosening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the LH engine mount through bolt.

    GFD458882Courtesy of FORD MOTOR COMPANY

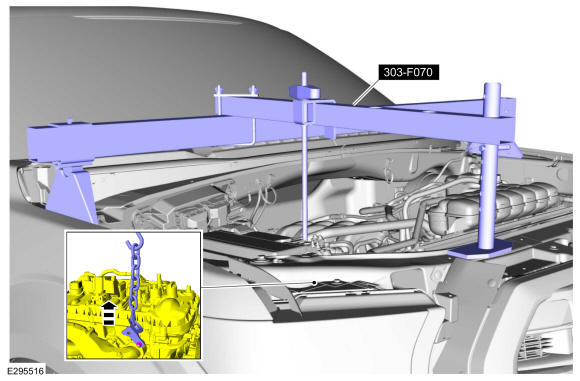

  19. Using the special tool, raise the RH side of the engine 50 mm (2 in). Use Special Service Tool: 303-F070 Support Bar, Engine.
    GFD460942Courtesy of FORD MOTOR COMPANY

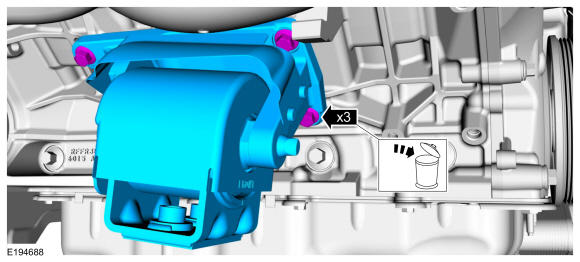

  20. Remove and discard the RH engine mount bracket-to-engine bolts.

    1. Remove the RH engine mount and bracket as an assembly.
    2. Clean the engine mount bracket-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

GFD460943Courtesy of FORD MOTOR COMPANY
