Engine Mount RH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If a new RH engine mount is installed, remove the 2 studs prior to positioning the assembly in the vehicle.

Install the RH engine mount and the new bolts.

Torque: 57 lb.ft (77 Nm)

Courtesy of FORD MOTOR COMPANY

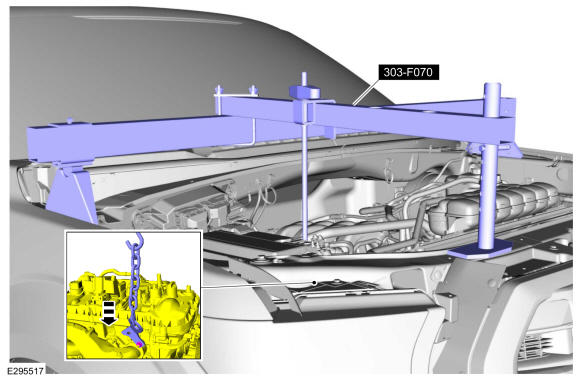

Using the special tool, lower the engine to the installed position. Use Special Service Tool: 303-F070 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.

NOTE: Apply threadlock to the stud threads prior to installation.

Install the engine mount studs.

Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

Install the new RH engine mount nuts.

Torque: 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

Install the new LH engine mount through bolt.

Torque: 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

Tighten the transmission mount-to-crossmember nuts.

Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
- Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.
- Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.
  Torque: 46 lb.ft (63 Nm)
- Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.
  Torque: 46 lb.ft (63 Nm)
Courtesy of FORD MOTOR COMPANY
Install the following items:
1. If equipped. Refer to: Front Driveshaft .
2. Refer to: Starter Motor .

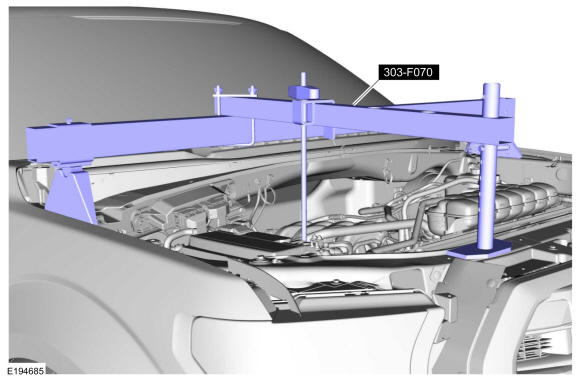

Remove Special Service Tool: 303-F070 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

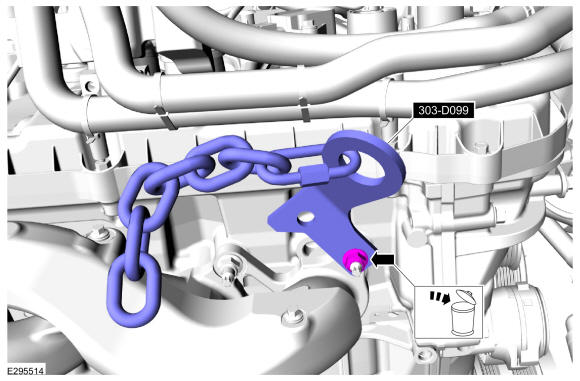

Remove and discard the exhaust manifold nut. Remove Special Service Tool: 303-D099 (D94T-6000-C) Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY

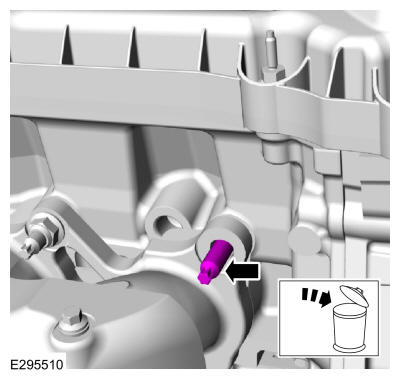

Remove and discard the exhaust manifold stud.

Courtesy of FORD MOTOR COMPANY

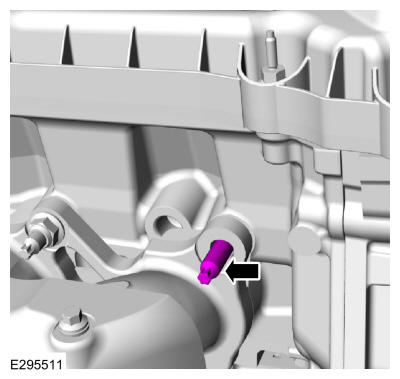

Install a new exhaust manifold stud.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

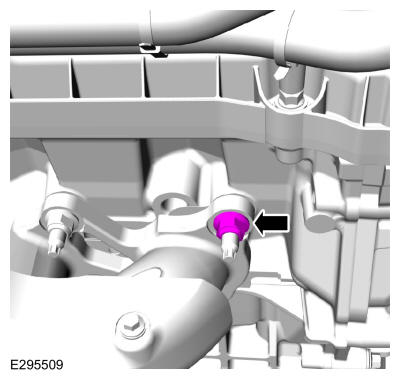

Install a new exhaust manifold nut.
Torque:| Stage 1: 18 lb.ft (24 Nm) | Stage 2: 24 lb.ft (32 Nm)

Courtesy of FORD MOTOR COMPANY

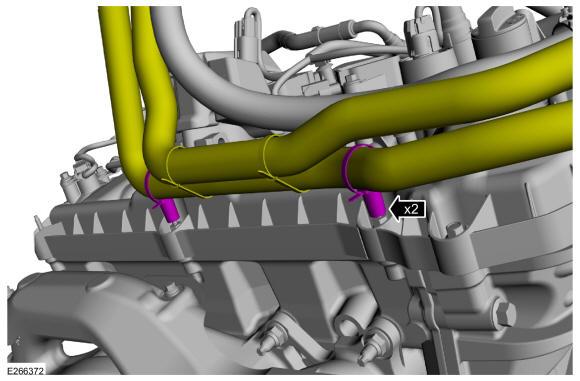

Attach the heater hose retainers.

Courtesy of FORD MOTOR COMPANY
Install the A/C compressor. Refer to: Air Conditioning (A/C) Compressor - 5.0L 32V Ti-VCT .
NOTE: If equipped.

Install the skid plate and bolts.

Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the underbody shield and fasteners.

Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the underbody shield and the bolts.

Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

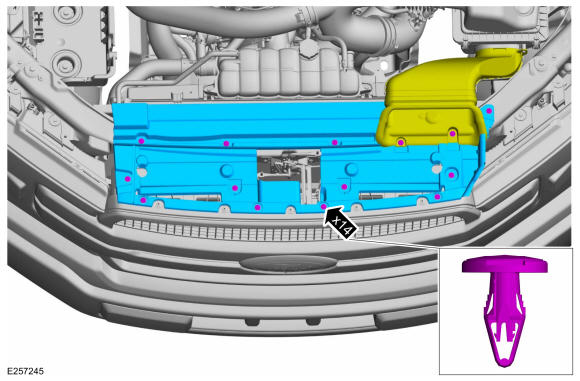

Install the radiator top shield and fasteners.

Courtesy of FORD MOTOR COMPANY

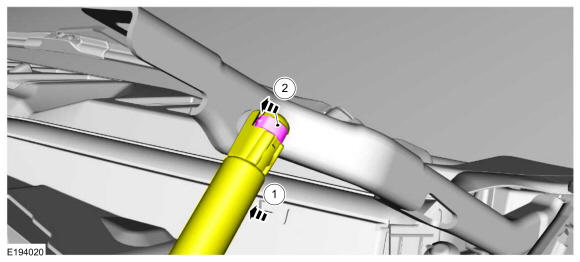

NOTE: LH shown, RH similar.
1. Position the hood shock and attach.
2. Install the clip.
Courtesy of FORD MOTOR COMPANY
Position the hood and install the nuts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Start engine and check exhaust system for leaks.
