Engine Mount LH: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

4x2/4x4

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. NOTE: RH shown, LH similar.

    Index-mark the hood hinge location to aid in hood installation.

    GFD459469Courtesy of FORD MOTOR COMPANY
  3. Remove the nuts and the hood.
    GFD459470Courtesy of FORD MOTOR COMPANY

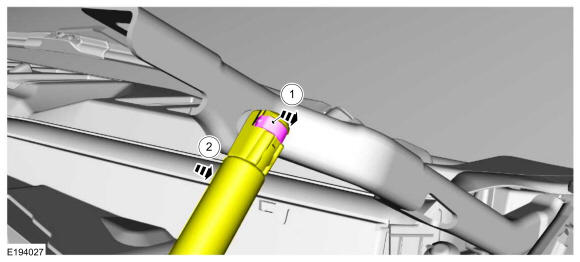

  4. NOTE: LH shown, RH similar.

    1. Release the clip.
    2. Detach and position the hood shock aside.

    GFD460135Courtesy of FORD MOTOR COMPANY
  5. NOTE: If equipped.

    • Disconnect the wiring harness electrical connector.

    • Detach the wiring harness retainers.

    GFD460898Courtesy of FORD MOTOR COMPANY
  6. Remove the following items:

    1. NOTE: It is not necessary to separate the air cleaner outlet pipe and the air cleaner, the 2 components can be removed as an assembly.

      Refer to: Air Cleaner Outlet Pipe .

    2. Refer to: Air Cleaner .

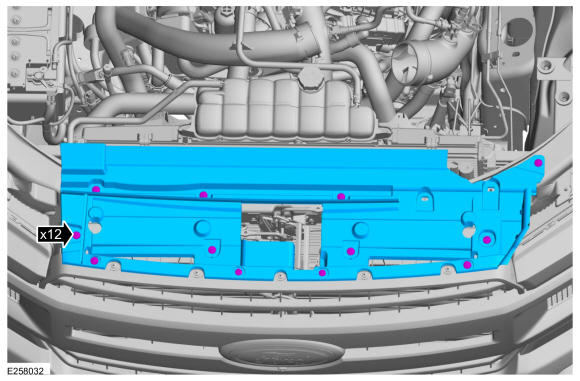

  7. Remove the retainers and the radiator top shield.
    GFD460926Courtesy of FORD MOTOR COMPANY

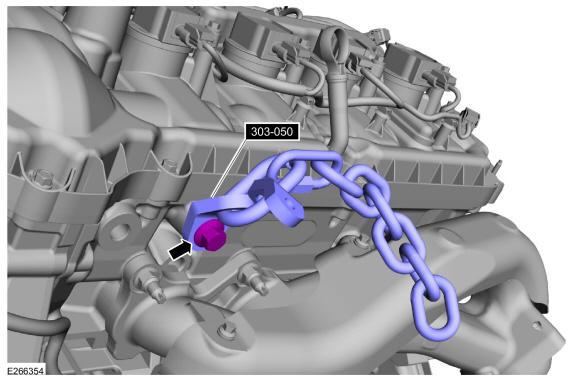

  8. NOTE: It may be necessary to install washers between the Engine Lifting Bracket and the cylinder head to prevent the Engine Lifting Bracket from contacting the valve cover while supporting the engine.

    • Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    • Attach a length of chain and a connecting link to the special tool.

    GFD460927Courtesy of FORD MOTOR COMPANY

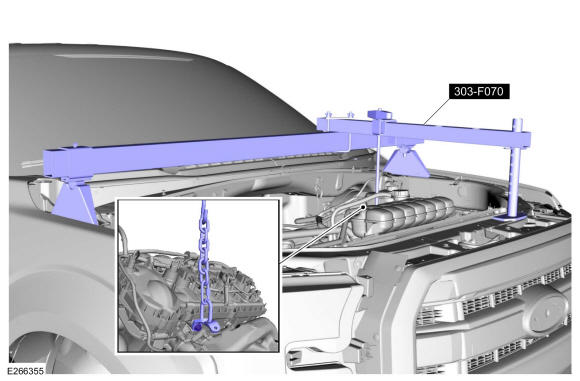

    • Install Special Service Tool: 303-F070 Support Bar, Engine.

    • Attach the chain installed in the previous step to the hook on the special tool.

    GFD460928Courtesy of FORD MOTOR COMPANY
  10. NOTE: If equipped.

    Remove the bolts and the underbody shield.

    GFD458868Courtesy of FORD MOTOR COMPANY
  11. NOTE: If equipped.

    Remove the bolts and the underbody shield.

    GFD458870Courtesy of FORD MOTOR COMPANY
  12. NOTE: If equipped.

    Remove the bolts and the skid plate.

    GFD458869Courtesy of FORD MOTOR COMPANY
  13. Remove the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.

    • Clean and inspect the mating surfaces.

    GFD458871Courtesy of FORD MOTOR COMPANY
  14. NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Loosen the transmission mount-to-crossmember nuts.

    GFD458872Courtesy of FORD MOTOR COMPANY
  15. NOTE: Only use hand tools when removing the engine mount nuts, stud bolts or damage to the engine mount can occur.

    Remove and discard the RH engine mount nuts and studs.

    GFD458881Courtesy of FORD MOTOR COMPANY

    4x4

  16. Remove the front drive shaft. Refer to: Front Driveshaft .

    4x2/4x4

  17. NOTE: Only use hand tools when loosening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the LH engine mount through bolt.

    GFD458882Courtesy of FORD MOTOR COMPANY
  18. Using the special tool, raise the LH side of the engine 50 mm (2 in).
    GFD460929Courtesy of FORD MOTOR COMPANY

    4x4

  19. Using a holding device, hold the steering wheel in the straight-ahead position.
    GFD458607Courtesy of FORD MOTOR COMPANY
    1. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

      Remove and discard the steering column shaft bolt.

    2. Separate the steering column shaft U-joint from the steering gear.
    GFD458873Courtesy of FORD MOTOR COMPANY
  21. Remove the steering gear boot.
    GFD458874Courtesy of FORD MOTOR COMPANY
  22. Using an adjustable stand, support the front axle. Use the General Equipment: Vehicle/Axle Stands
    GFD458875Courtesy of FORD MOTOR COMPANY
  23. Remove and discard the lower front axle carrier mounting bushing bolt.
    GFD458876Courtesy of FORD MOTOR COMPANY
  24. Remove and discard the axle shaft housing carrier bushing nut and the bolt.
    GFD458877Courtesy of FORD MOTOR COMPANY
  25. NOTE: After loosening the bolt, it may be necessary to reposition the axle assembly to prevent interference with the steering components when removing the bolt.

    Remove and discard the upper front axle carrier mounting bushing nut and the bolt.

    GFD458878Courtesy of FORD MOTOR COMPANY
  26. Using an adjustable stand, lower the axle to allow clearance for the engine mount to be removed. Use the General Equipment: Vehicle/Axle Stands
    GFD458879Courtesy of FORD MOTOR COMPANY

    4x2/4x4

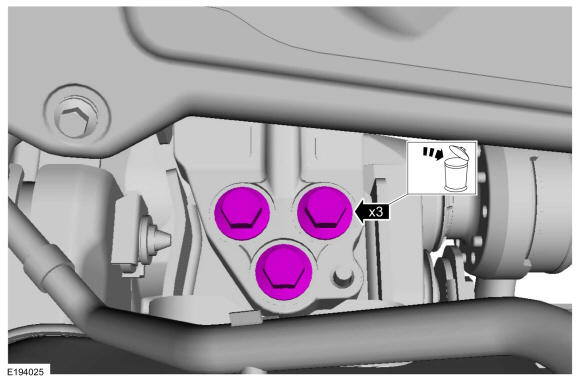

  27. NOTE: Only use hand tools when removing or installing the engine mount-to-frame bolts or damage to the engine mount-to-frame nut plate can occur.

    Remove and discard the LH engine mount-to-frame bolts.

    GFD460930Courtesy of FORD MOTOR COMPANY
  28. Remove the LH engine mount.
    GFD459094Courtesy of FORD MOTOR COMPANY
    1. Inspect the engine mount-to-frame nut plate for thread damage.
    2. If the nut plate is damaged, remove and discard the engine mount-to-frame nut plate.
    GFD458885Courtesy of FORD MOTOR COMPANY
  30. Remove the bolts and the LH engine mount-to-cylinder block bracket.

    • Discard the bolts.

    • Clean the engine mount-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

GFD460931Courtesy of FORD MOTOR COMPANY
