Engine Front Cover: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install new gaskets on the engine front cover.
    GFD460917Courtesy of FORD MOTOR COMPANY

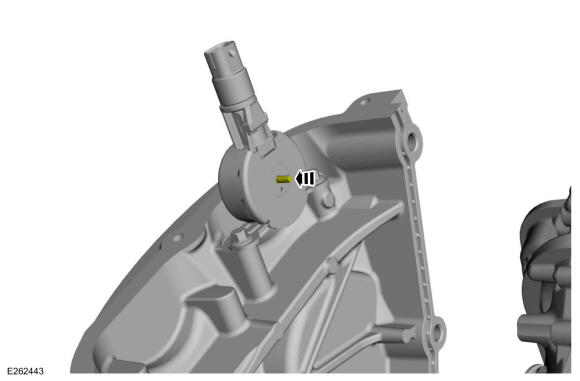

  2. NOTE: The VCT variable force solenoid pins must be fully depressed to avoid interference with the VCT valve tips when installing the engine front cover. Failure to follow the se instructions can result in damage to the engine.
    NOTE: RH shown, LH similar.

    Fully depress the VCT variable force solenoid pins.

    GFD460918Courtesy of FORD MOTOR COMPANY
  3. NOTE: The engine front cover must be installed and all fasteners final tightened within 5 minutes of applying the sealer. If this cannot be accomplished, install the engine front cover and tighten fasteners 6, 7, 8, 9, 10 and 11 to 8 Nm (71 lb-in) within 5 minutes of applying the sealer. All of the fasteners must the n be final tightened within 1 hour of applying the sealer. If this time limit is exceeded, all sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.

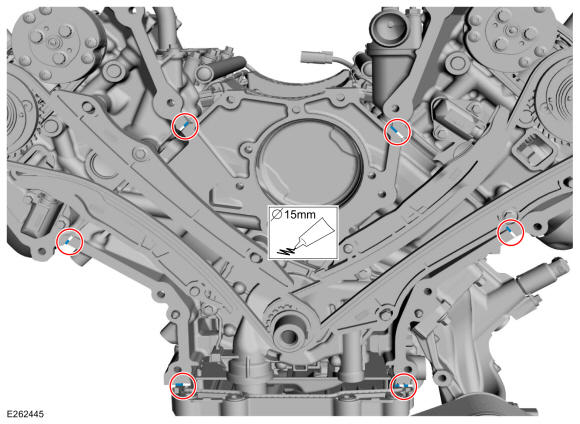

    Apply a 15 mm (0.59 in) diameter drop of silicone gasket and sealant to the cylinder head-to-cylinder block joints and the oil pan-to-cylinder block joints.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD460919Courtesy of FORD MOTOR COMPANY

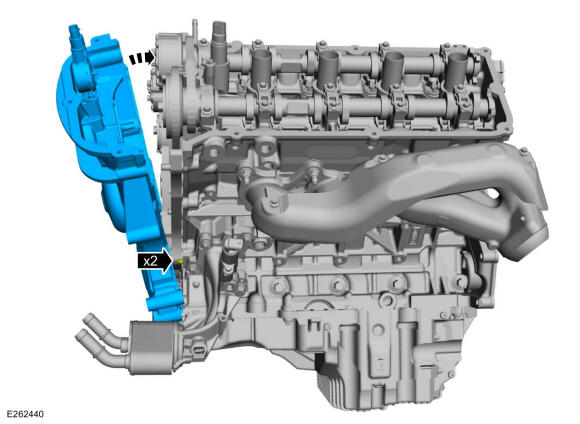

  4. NOTE: Make sure that the engine front cover gaskets are in place on the engine front cover before installation.

    Position the engine front cover onto the dowels.

    GFD460920Courtesy of FORD MOTOR COMPANY
  5. NOTE: The engine front cover must be installed and all fasteners final tightened within 5 minutes of applying the sealer. If this cannot be accomplished, install the engine front cover and tighten fasteners 6, 7, 8, 9, 10 and 11 to 8 Nm (71 lb-in) within 5 minutes of applying the sealer. All of the fasteners must the n be final tightened within 1 hour of applying the sealer. If this time limit is exceeded, all sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.

    Install the bolts and stud bolts.

    Torque:| Stage 1: Fasteners 1-15 : 18 lb.ft (25 Nm) | Stage 2: Fasteners 16-19 : 89 lb.in (10 Nm) | Stage 3: Fasteners 1-15 : 60° | Stage 4: Fasteners 16-19 : 45°

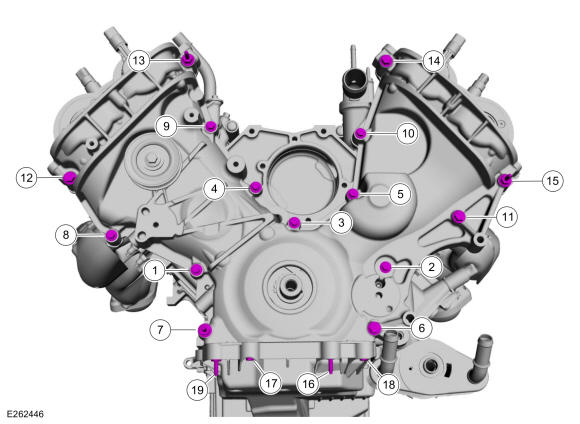

    Fig 1: Engine Front Cover Tightening Sequence
    GFD460921Courtesy of FORD MOTOR COMPANY

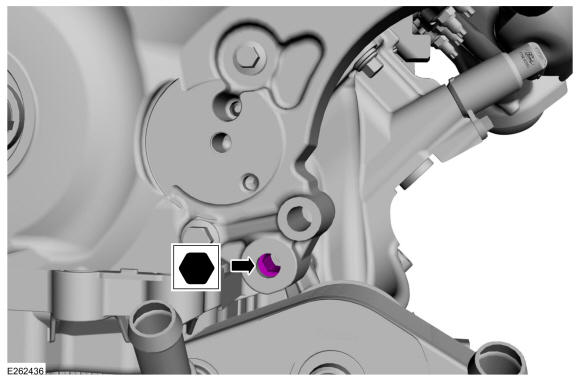

  6. Using a 10 mm Hex Bit, turn the engine front cover-to-oil filter adapter jack screw into contact with the oil filter adapter.

    Torque: 44 lb.in (5 Nm)

    GFD460912Courtesy of FORD MOTOR COMPANY
  7. Install the engine front cover-to-oil filter adapter bolt.

    Torque:| Stage 1: 18 lb.ft (25 Nm) | Stage 2: 60°

    GFD460911Courtesy of FORD MOTOR COMPANY

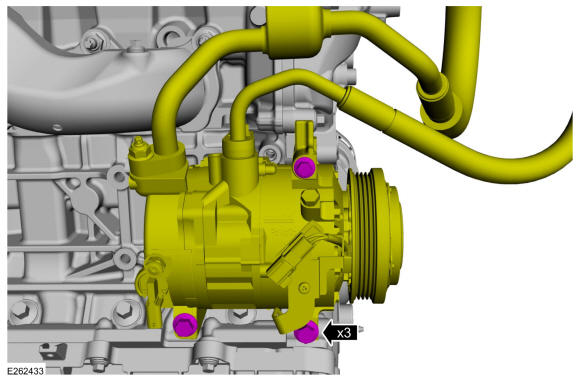

  8. Install the A/C compressor and the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD460908Courtesy of FORD MOTOR COMPANY
    1. Connect the A/C compressor electrical connectors.
    2. Attach the wiring harness retainers.
    GFD460907Courtesy of FORD MOTOR COMPANY
    1. Install the nut.

      Torque: 106 lb.in (12 Nm)

    2. Attach the wiring harness retainer.
    3. Position the coolant tube and wiring harness brackets and install the nut.

      Torque: 115 lb.in (13 Nm)

    GFD460906Courtesy of FORD MOTOR COMPANY

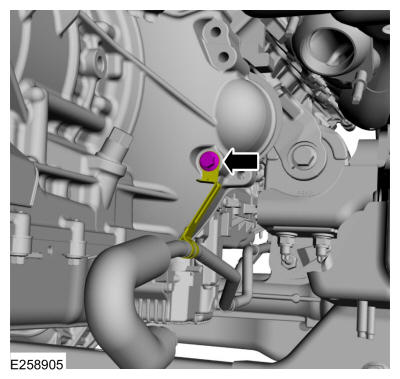

  11. Install the transmission cooler tube support bracket and the transmission-to-engine bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD460905Courtesy of FORD MOTOR COMPANY

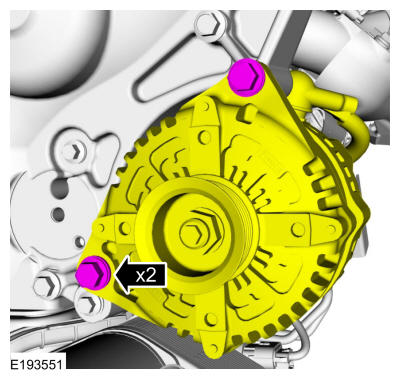

  12. Install the generator, the bolt and the nut.

    Torque: 35 lb.ft (48 Nm)

    GFD460904Courtesy of FORD MOTOR COMPANY
  13. Install the following items:

    1. Refer to: Crankshaft Front Seal .
    2. Refer to: Valve Cover RH .
    3. Refer to: Valve Cover LH .
    4. Refer to: Coolant Pump .
    5. Refer to: Air Conditioning (A/C) Compressor Belt .
    6. Refer to: Accessory Drive Belt Tensioner .
    7. Refer to: Accessory Drive Belt .

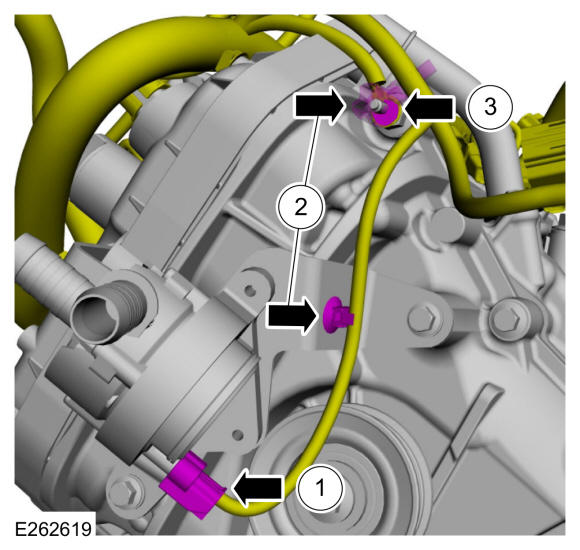

    1. Install the ground wire and nut.

      Torque: 89 lb.in (10 Nm)

    2. Connect the engine wiring harness electrical connector.
    3. Attach the engine wiring harness retainers.
    GFD460903Courtesy of FORD MOTOR COMPANY
  15. NOTE: Do not lubricate the O-ring seal.

    Install a new oil filter.

    Torque:| Stage 1: 44 lb.in (5 Nm) | Stage 2: 180°

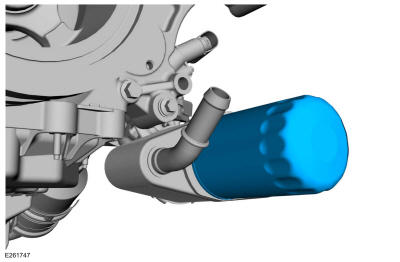

    GFD460922Courtesy of FORD MOTOR COMPANY

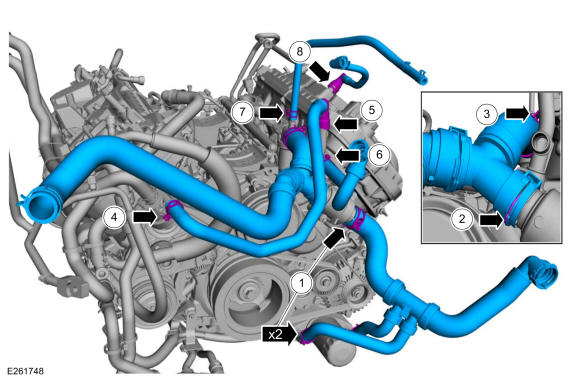

  16. Connect the coolant hose quick release couplings.
    GFD460902Courtesy of FORD MOTOR COMPANY
    1. Install the coolant hose assembly and the clamps. Use the General Equipment: Hose Clamp Remover/Installer
    2. Install the coolant bypass T assembly and engage the spring clip.
    3. Install the coolant hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    4. Install the coolant hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    5. Connect the quick release coupling.
    6. Install the coolant hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    7. Install the coolant hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    8. Install the crankcase vent tube and connect the quick release coupling. Refer to: QUICK RELEASE COUPLING .
    GFD460923Courtesy of FORD MOTOR COMPANY

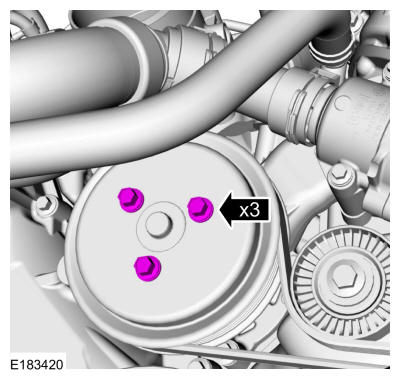

  18. Torque

    : 18 lb.ft (25 Nm)

    GFD460900Courtesy of FORD MOTOR COMPANY

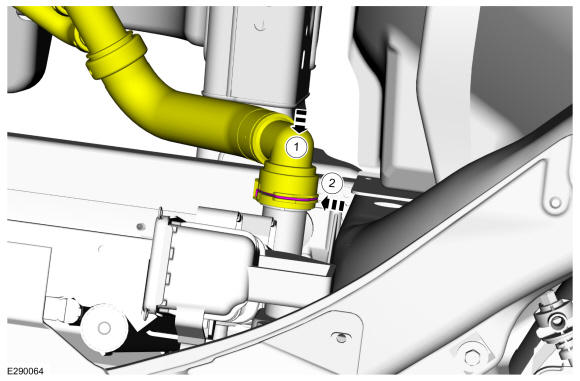

    1. Connect the lower radiator hose.
    2. Install the spring clip.
    GFD458866Courtesy of FORD MOTOR COMPANY

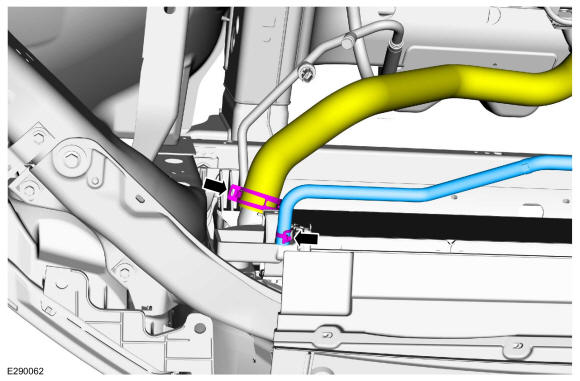

    • Install the upper radiator hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer

    • Install the radiator to degas bottle hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer

    GFD458844Courtesy of FORD MOTOR COMPANY
  21. Refer to: Degas Bottle .
    1. Install the air cleaner and outlet pipe assembly, the clamp and the bolts.

      Torque: Clamp: 35 lb.in (4 Nm) Bolts: 150 lb.in (17 Nm)

    2. Connect the brake booster and the crankcase ventilation tubes.
    3. Position the coolant tube.
    GFD460899Courtesy of FORD MOTOR COMPANY
  23. NOTE: If equipped.

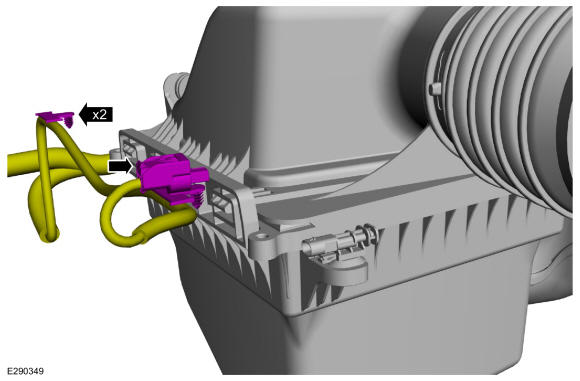

    • Attach the wiring harness retainers.

    • Connect the wiring harness electrical connector.

    GFD460898Courtesy of FORD MOTOR COMPANY

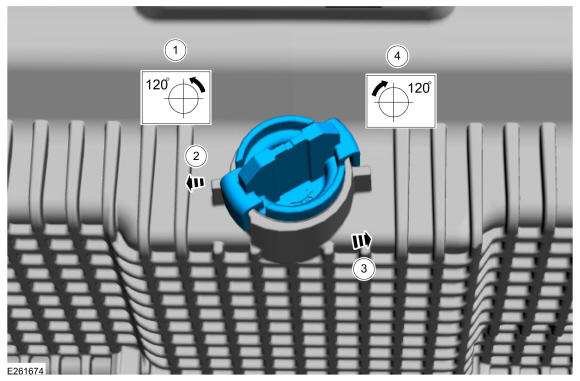

  24. NOTE: The drain plug should be removed and installed by hand, do not use tools.

    1. Turn the oil drain plug by hand counterclockwise 120 degrees. Use the General Equipment: Oil Drain Equipment
    2. Pull the oil drain plug out of the oil pan.
    3. After the oil has drained, push the oil drain plug into the oil pan.
    4. NOTE: Overtightening will damage the oil drain plug and possibly the oil pan.

      Turn the oil drain plug by hand clockwise 120 degrees.

    GFD460924Courtesy of FORD MOTOR COMPANY
  25. NOTE: If equipped.

    Install the skid plate and bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD458869Courtesy of FORD MOTOR COMPANY
  26. NOTE: If equipped.

    Install the underbody shield and the bolts.

    Torque: 71 lb.in (8 Nm)

    GFD458868Courtesy of FORD MOTOR COMPANY

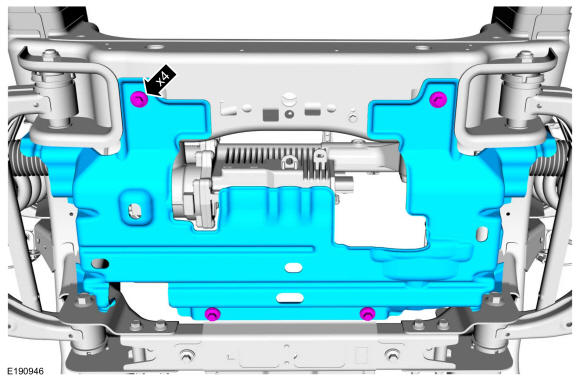

  27. NOTE: If equipped.

    Install the underbody shield and fasteners.

    Torque: 30 lb.ft (40 Nm)

    GFD458935Courtesy of FORD MOTOR COMPANY
  28. NOTE: If equipped.

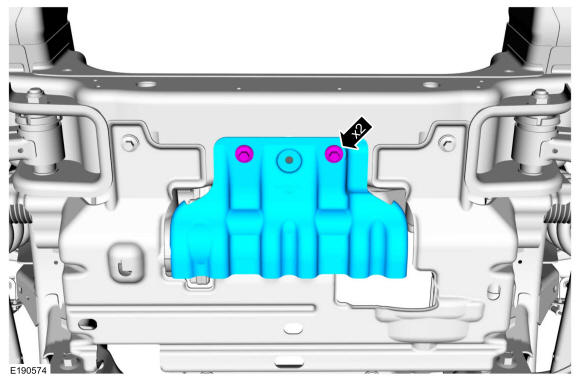

    Install the skid plate and bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD458934Courtesy of FORD MOTOR COMPANY

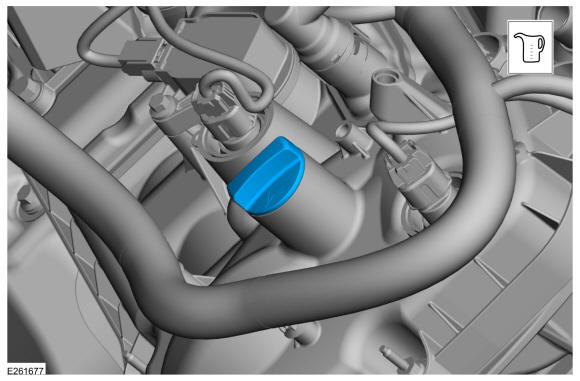

  29. Fill the engine with clean engine oil. Refer to: Specifications .
    GFD460887Courtesy of FORD MOTOR COMPANY
  30. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
  31. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
  32. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  33. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
