Cylinder Head LH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

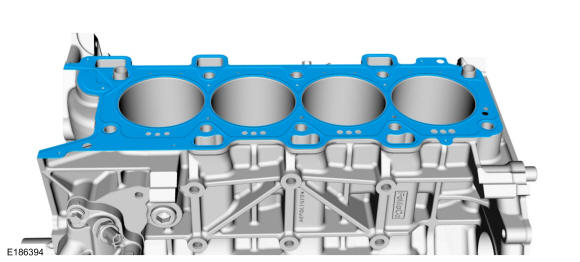

  1. Install the cylinder head gasket.
    GFD460881Courtesy of FORD MOTOR COMPANY
  2. NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

    1. Install the cylinder head and the new bolts.

      Torque:| Stage 1: Bolts 1-10 in sequence: 18 lb.ft (25 Nm) | Stage 2: Bolts 1-10 in sequence: 55 lb.ft (75 Nm) | Stage 3: Bolt 1: Loosen: 180° | Stage 4: Bolt 1: 37 lb.ft (50 Nm) | Stage 5: Bolt 1: 240°

    2. Perform | Stage s 3, 4 and 5 on bolts 2 through 10 (complete all three | Stage s to each bolt before moving on to the next bolt in sequence).

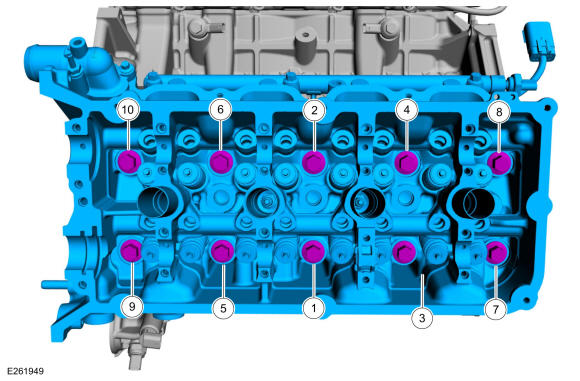

    Fig 1: LH Cylinder Head Tightening Sequence
    GFD460882Courtesy of FORD MOTOR COMPANY

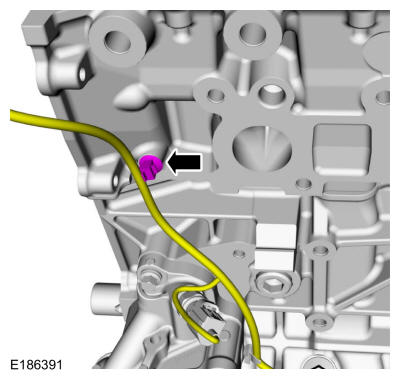

  3. Attach the wiring harness retainer to the cylinder head.
    GFD460877Courtesy of FORD MOTOR COMPANY
  4. NOTE: In | Stage 3, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 55 lb.ft (50 Nm), the n that high pressure fuel tube must be discarded and replaced with anothe r new high-pressure fuel tube.

    Torque:| Stage 1: Tighten the high-pressure fuel tube flare nuts to : 71 lb.in (8 Nm) | Stage 2: Tighten the high-pressure fuel tube flare nuts to : 89 lb.in (10 Nm) | Stage 3: Tighten the high-pressure fuel tube flare nuts an additional : 25°

    GFD460883Courtesy of FORD MOTOR COMPANY

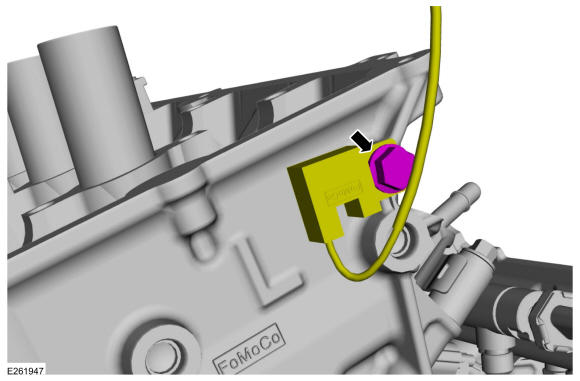

  5. Install the capacitor and the bolt.

    Torque: 89 lb.in (10 Nm)

    GFD460875Courtesy of FORD MOTOR COMPANY

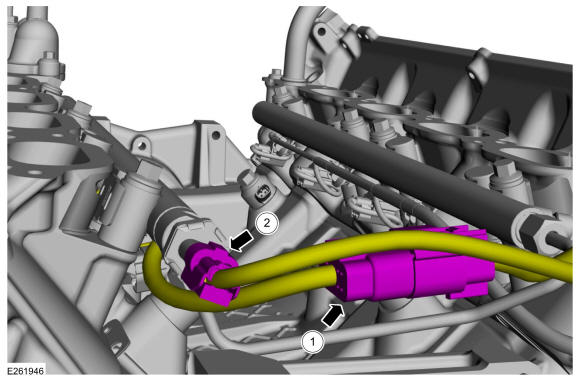

    1. Connect the fuel rail electrical connector.
    2. Connect the fuel sensor electrical connector.
    GFD460874Courtesy of FORD MOTOR COMPANY
  6. Install the following items:

    1. Refer to: Exhaust Manifold LH .
    2. Refer to: Camshaft LH .

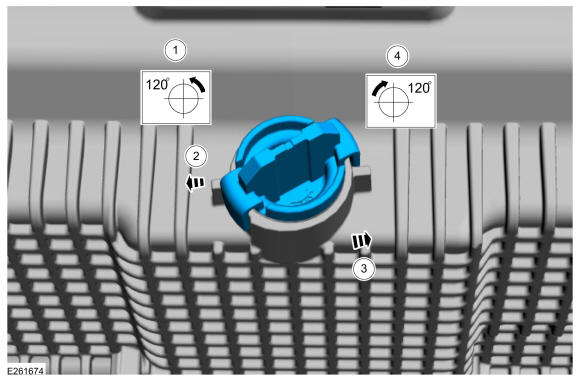

  7. NOTE: The drain plug should be removed and installed by hand, do not use tools.

    1. Turn the oil drain plug by hand counterclockwise 120 degrees. Use the General Equipment: Oil Drain Equipment
    2. Pull the oil drain plug out of the oil pan.
    3. After the oil has drained, push the oil drain plug into the oil pan.
    4. NOTE: Overtightening will damage the oil drain plug and possibly the oil pan.

      Turn the oil drain plug by hand clockwise 120 degrees.

    GFD460884Courtesy of FORD MOTOR COMPANY

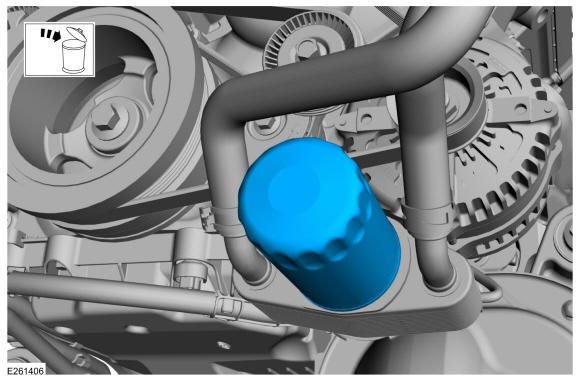

  8. Remove and discard the engine oil filter.
    GFD460885Courtesy of FORD MOTOR COMPANY

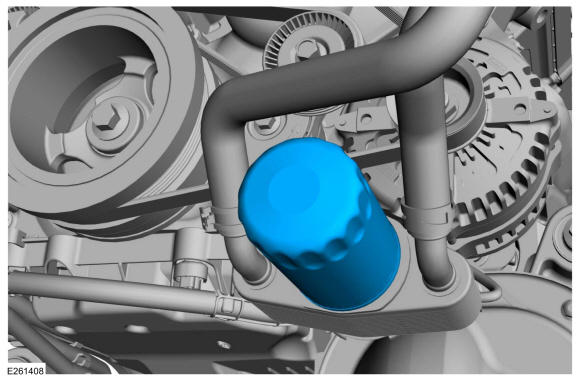

  9. NOTE: Do not lubricate the O-ring seal.

    Install a new oil filter.

    Torque:| Stage 1: 44 lb.in (5 Nm) | Stage 2: 180°

    GFD460886Courtesy of FORD MOTOR COMPANY
  10. Fill the engine with clean engine oil. Refer to: Specifications .
    GFD460887Courtesy of FORD MOTOR COMPANY
  11. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
  12. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
  13. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
