Crankshaft Rear Seal: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the flexplate. Refer to: Flexplate .
- Remove the crankshaft sensor ring and the engine-to-transmission spacer plate.
- Inspect the crankshaft sensor ring for damage. If the crankshaft sensor ring has been dropped or has any visual damage, it must be discarded.

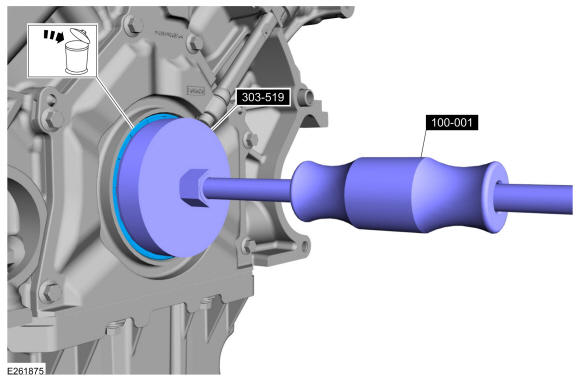

- Using the special tools, remove and discard the crankshaft rear seal. Use Special Service Tool: 303-519 (T95P-6701-EH) Remover, Crankshaft Rear Oil Seal., 100-001 (T50T-100-A) Slide Hammer.
