Crankshaft Front Seal: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the following items:
- Refer to: Accessory Drive Belt .
- Refer to: Air Conditioning (A/C) Compressor Belt .

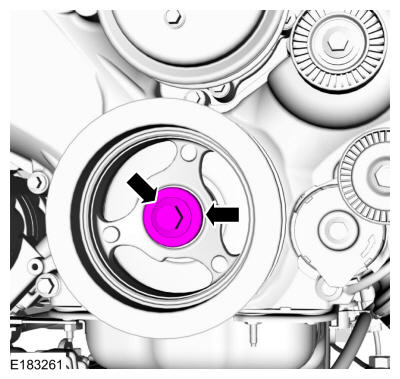

- Remove the crankshaft pulley bolt and washer.
-
- Using the 3 Leg Puller and the crankshaft pulley bolt, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller
- Discard the crankshaft pulley bolt.
-
NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.
Using the special tool, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
