Camshaft RH: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the components are to be reinstalled, the y must be installed in the ir original locations.

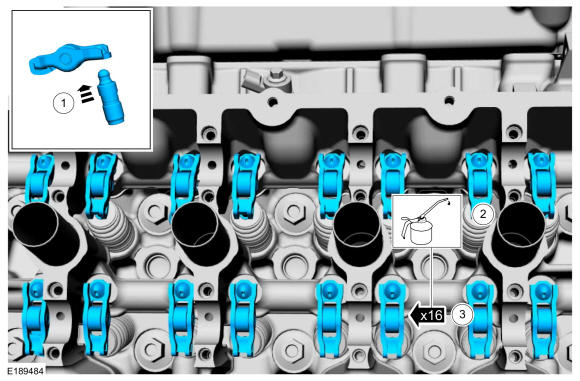

1. Assemble the hydraulic lash adjusters onto the spring clips on the camshaft roller followers.
2. Lubricate the camshaft roller follower and hydraulic lash adjuster assemblies with clean engine oil.
3. Install the camshaft roller follower and hydraulic lash adjuster assemblies.
Courtesy of FORD MOTOR COMPANY

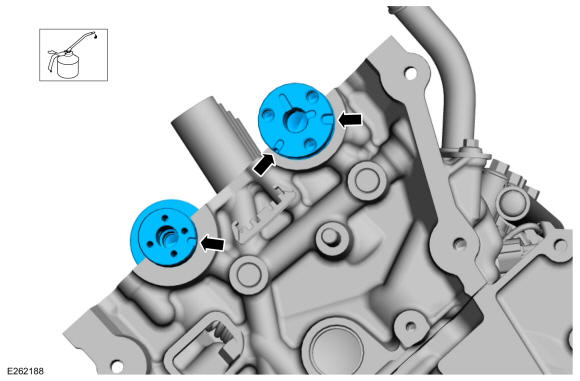

NOTE: Lubricate the camshafts with clean engine oil prior to installation.

Install the intake and exhaust camshafts in the neutral position. Align the D-slots as shown below in the illustration.

Courtesy of FORD MOTOR COMPANY

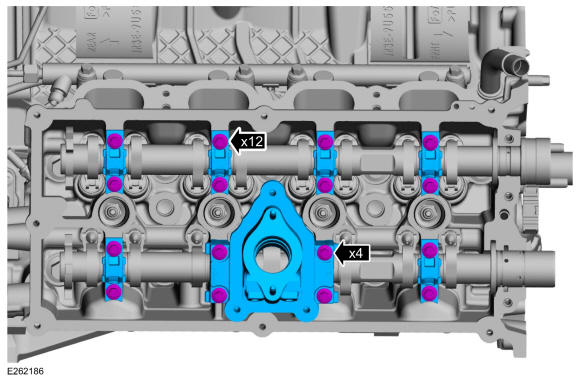

Install the camshaft bearing caps and the bolts. Do not tighten at this time.

Courtesy of FORD MOTOR COMPANY

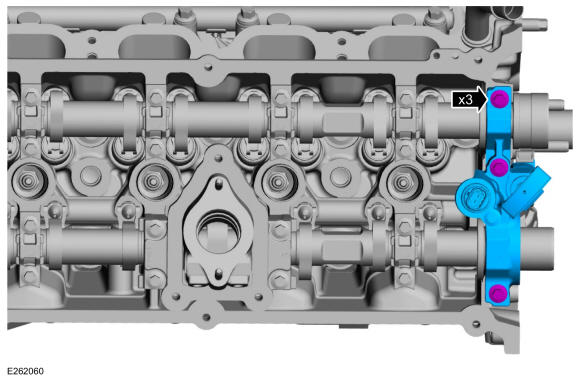

Install the front camshaft bearing mega cap and the bolts. Do not tighten at this time.

Courtesy of FORD MOTOR COMPANY

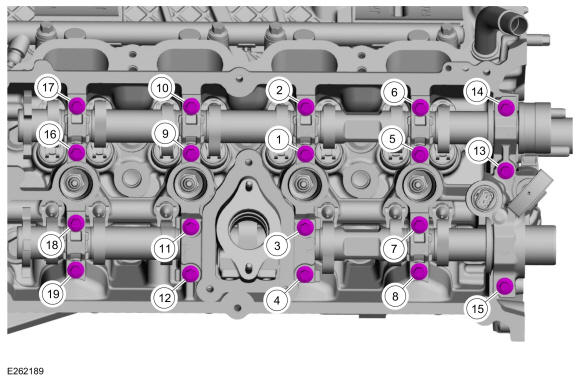

Tighten the bolts in sequence.
Torque:| Stage 1: Bolts 1-19: 53 lb.in (6 Nm) | Stage 2: Bolts 1-2, 5-10, 13-19: 45° Bolts 3-4, 11-12: 90°

Fig 1: RH Camshaft Tightening Sequence
Courtesy of FORD MOTOR COMPANY

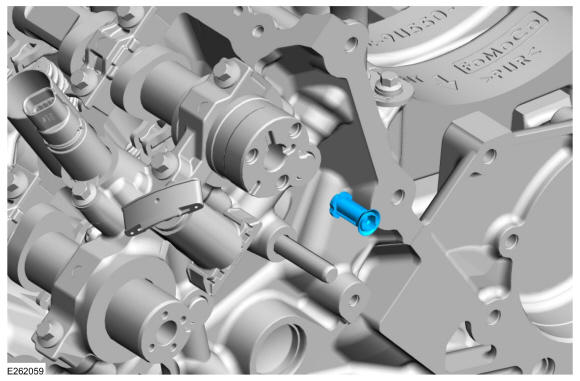

Install a new VCT system oil filter into the camshaft.

Courtesy of FORD MOTOR COMPANY
Install the RHVCT units. Refer to: Variable Camshaft Timing (VCT) Unit .
