Engine - Body Off

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-F047Lifting Bracket, Engine
Magnetic Socket
Floor Crane
Trolley Jack
Hose Clamp Remover/Installer
Wooden Block

Materials

1. 1. Inspect the engine mount-to-frame nut plate for thread damage.
   2. If the nut plate is damaged, remove and discard the engine mount-to-frame nut plate.
   • Clean the engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

   Courtesy of FORD MOTOR COMPANY

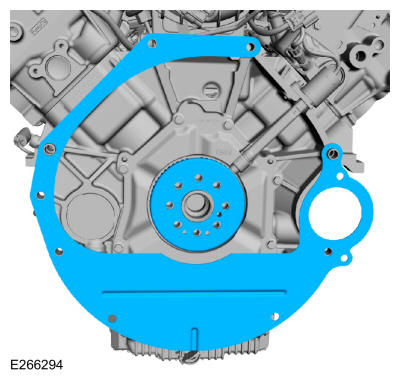

2. Install the engine-to-transmission spacer plate and the crankshaft sensor ring.

   Courtesy of FORD MOTOR COMPANY

3. Install the flexplate and the bolts.

   Torque:| Stage 1: 43 lb.ft (58 Nm) | Stage 2: 45°

   Courtesy of FORD MOTOR COMPANY

4. Lubricate the torque converter pilot hub with multi-purpose grease.

   Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

5. • Inspect the torque converter stud and flexplate for paint marks.
   • Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.

   Courtesy of FORD MOTOR COMPANY

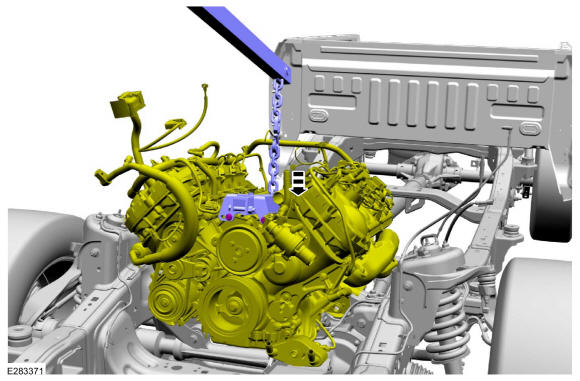

6. With the aid of an assistant, use the floor crane to position the engine assembly in the chassis. Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

7. 1. Align the engine to the transmission and install the bolts.
   2. Draw the engine and transmission togethe r evenly using the bolts.

      Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Install the bracket and the bellhousing bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

9. Remove the floor jack and the block of wood. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

   Courtesy of FORD MOTOR COMPANY

10. Install the LH engine mount and the new engine mount-to-frame bolts.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

11. Using the Heavy Duty Floor Crane, lower the engine assembly into the installed position.
    • Remove the Heavy Duty Floor Crane. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

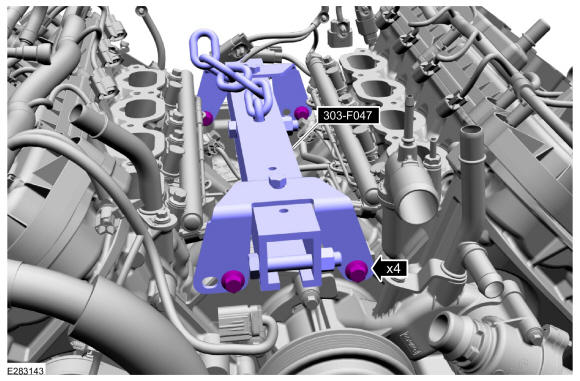

12. Remove Special Service Tool: 303-F047 Lifting Bracket, Engine.

    Courtesy of FORD MOTOR COMPANY

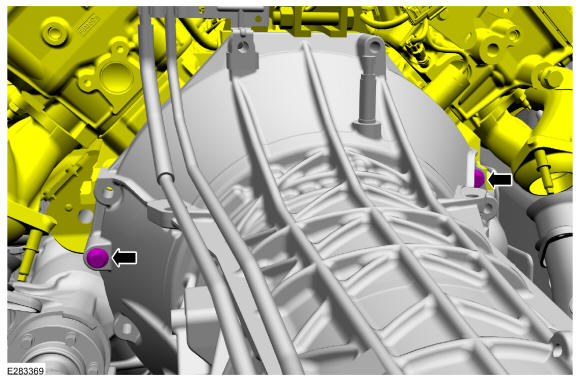

13. Install the upper bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

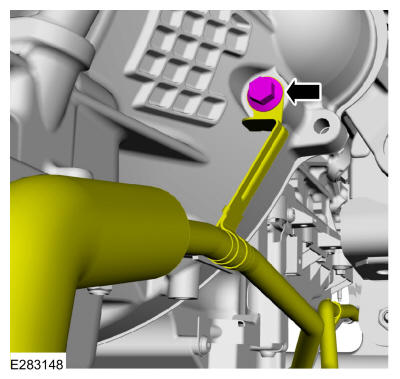

14. Position the vent hose and attach the retainer.

    Courtesy of FORD MOTOR COMPANY

15. NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new LH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    Courtesy of FORD MOTOR COMPANY

16. NOTE: Do not lubricate the O-ring seal.

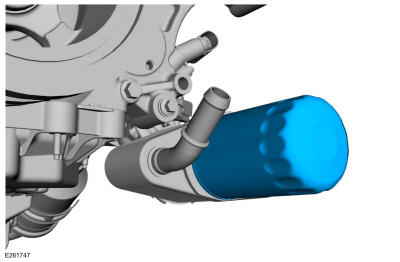

    Install a new oil filter.

    Torque:| Stage 1: 44 lb.in (5 Nm) | Stage 2: 180°

    Courtesy of FORD MOTOR COMPANY

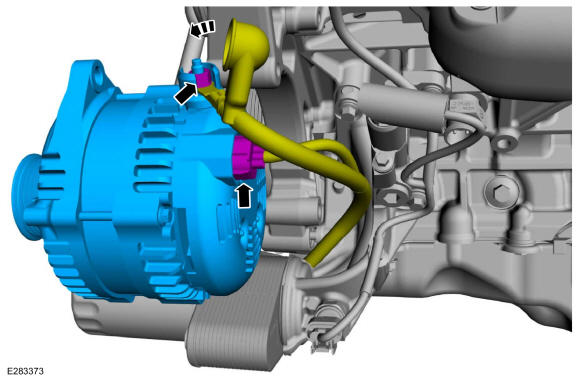

17. 1. Position the generator.
    2. Install the B+ wire and the nut.

       Torque: 150 lb.in (17 Nm)

    3. Reposition the wiring protective cover.
    4. Connect the generator electrical connector.

    Courtesy of FORD MOTOR COMPANY

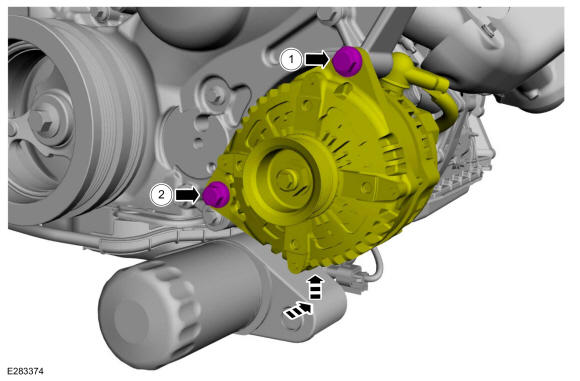

18. Position the generator and install the bolts.

    Torque: 35 lb.ft (47 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Install the accessory drive belt tensioner and the bolt.

    Torque: 35 lb.ft (47 Nm)

    Courtesy of FORD MOTOR COMPANY

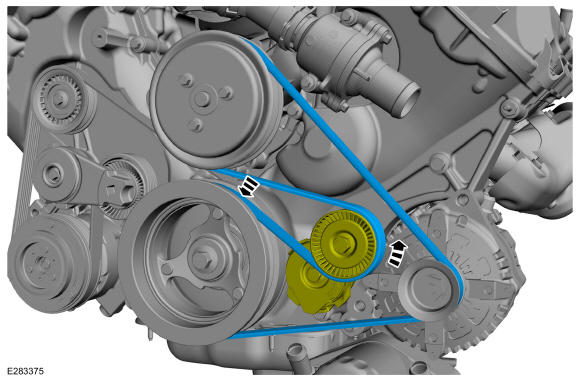

20. Rotate the accessory drive belt tensioner counter clockwise and install the accessory drive belt.

    Courtesy of FORD MOTOR COMPANY

21. Attach the transmission wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

22. Install the ground strap and the nut to the LH valve cover stud bolt.

    Torque: 53 lb.in (6 Nm)

    Courtesy of FORD MOTOR COMPANY

23. Connect the coolant hose quick release couplings.

    Courtesy of FORD MOTOR COMPANY

24. 1. Install the coolant hose and the clamp. Use the General Equipment: Hose Clamp Remover/Installer
    2. Connect the coolant hose quick release coupling.
    3. Attach the coolant hose retainer to the auxiliary coolant pump bracket.
    4. Attach the coolant hose retainers to the valve cover stud bolts.

    Courtesy of FORD MOTOR COMPANY

25. 1. Install the coolant hose assembly and the clamps. Use the General Equipment: Hose Clamp Remover/Installer
    2. Install the coolant bypass T assembly and engage the spring clip.
    3. Install the coolant hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    4. Install the coolant hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    5. Connect the quick release coupling.
    6. Install the coolant hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    7. Install the coolant hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    8. Install the crankcase vent tube and connect the quick release coupling. Refer to: QUICK RELEASE COUPLING .

    Courtesy of FORD MOTOR COMPANY

26. Install the insulators.

    Courtesy of FORD MOTOR COMPANY

27. NOTE: In | Stage 3, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 55 lb.ft (50 Nm), the n that high pressure fuel tube must be discarded and replaced with anothe r new high-pressure fuel tube.

    Torque:| Stage 1: Tighten the high-pressure fuel tube flare nuts to : 71 lb.in (8 Nm) | Stage 2: Tighten the high-pressure fuel tube flare nuts to : 89 lb.in (10 Nm) | Stage 3: Tighten the high-pressure fuel tube flare nuts an additional : 25°

    Courtesy of FORD MOTOR COMPANY

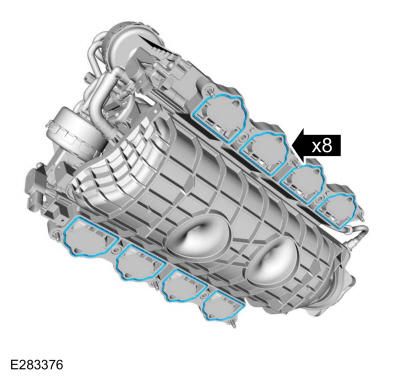

28. Install the gaskets.

    Courtesy of FORD MOTOR COMPANY

29. • Position the intake manifold.
    • Connect the wiring harness electrical connectors.
    • Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

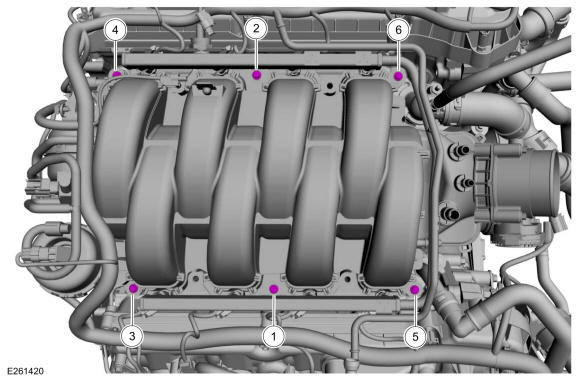

30. Tighten the intake manifold bolts.

    Torque:| Stage 1: 102 lb.in (11.5 Nm) | Stage 2: 35°

    Courtesy of FORD MOTOR COMPANY

31. Install the fuel rail bolts.

    Torque:| Stage 1: 89 lb.in (10 Nm) | Stage 2: 90°

    Courtesy of FORD MOTOR COMPANY

32. Connect the LH fuel injector electrical connectors and the fuel sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

33. Connect the RH fuel injector electrical connectors.

    Courtesy of FORD MOTOR COMPANY

34. Connect the throttle body electrical connector.

    Courtesy of FORD MOTOR COMPANY

35. Install the fuel rail insulators.

    Courtesy of FORD MOTOR COMPANY

36. 1. Connect the fuel tube spring lock coupling. Refer to: Spring Lock Couplings .
    2. Connect the fuel tube quick release coupling. Refer to: QUICK RELEASE COUPLING .

    Courtesy of FORD MOTOR COMPANY

37. 1. Slide the EVAP canister purge valve onto the intake manifold.
    2. Connect the EVAP canister purge valve tube. Refer to: QUICK RELEASE COUPLING .
    3. Connect the EVAP canister purge valve tube. Refer to: QUICK RELEASE COUPLING .
    4. Connect the EVAP canister purge valve electrical connector.

    Courtesy of FORD MOTOR COMPANY

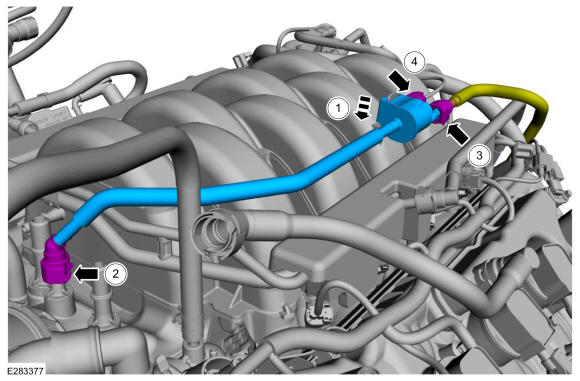

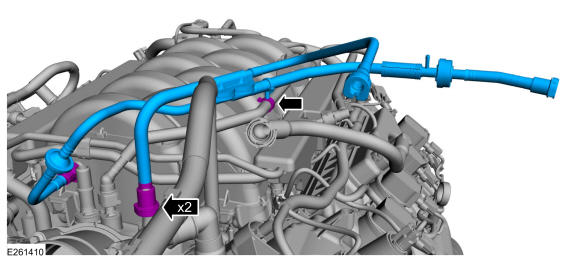

38. 1. Install the vacuum tube assembly and attach the vacuum tube retainer
    2. Connect the vacuum tube quick release couplings. Refer to: QUICK RELEASE COUPLING .

    Courtesy of FORD MOTOR COMPANY

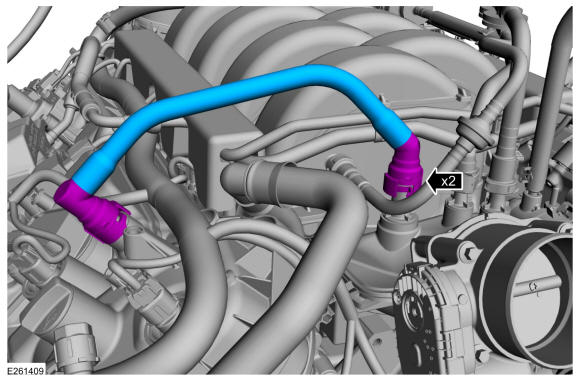

39. Install the PCV tube and connect the quick release couplings. Refer to: QUICK RELEASE COUPLING .

    Courtesy of FORD MOTOR COMPANY

40. Install the body. Refer to: Body .

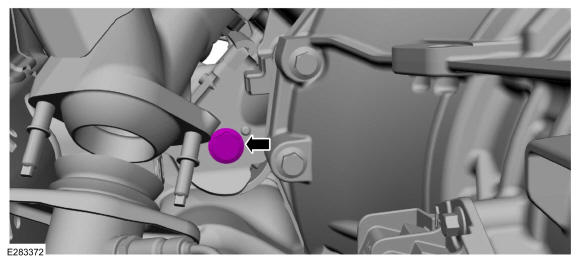

41. Position the bracket and install the lower bellhousing bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

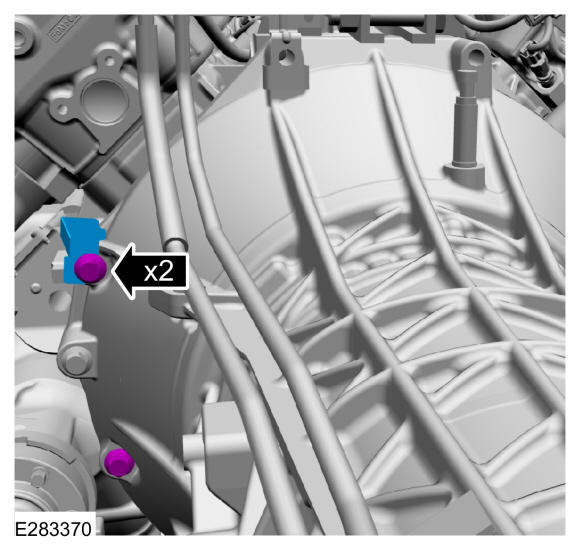

42. Install the lower bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

43. NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.
    NOTE: Apply threadlock to the stud threads prior to installation.

    Install the engine mount studs.

    Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

44. NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

    Install the new RH engine mount nuts.

    Torque: 111 lb.ft (150 Nm)

    Courtesy of FORD MOTOR COMPANY

45. NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Tighten the transmission mount-to-crossmember nuts.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

46. NOTE: Only rotate the crankshaft in a clockwise direction.

    Install the new torque converter-to-flexplate nuts. Use the General Equipment: Magnetic Socket

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

47. Install the cylinder block opening cover.

    Courtesy of FORD MOTOR COMPANY

48. Position the exhaust Y-pipe dual catalytic converter onto the exhaust manifolds and loosely install new RH catalytic converter-to-exhaust manifold nuts.

    Courtesy of FORD MOTOR COMPANY

49. Loosely install new LH catalytic converter-to-exhaust manifold nuts.

    Courtesy of FORD MOTOR COMPANY

50. Tighten the nuts.

    Torque: 1: 30 lb.ft (40 Nm) 2: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

51. Tighten the nuts.

    Torque: 1: 30 lb.ft (40 Nm) 2: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

52. Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.
    • Evenly tighten the bolts.

      Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

53. If equipped, install the front driveshaft. Refer to: Front Driveshaft .
54. 1. Install the nut.

       Torque: 106 lb.in (12 Nm)

    2. Attach the wiring harness retainer.
    3. Position the coolant tube and wiring harness brackets and install the nut.

       Torque: 115 lb.in (13 Nm)

    Courtesy of FORD MOTOR COMPANY

55. 1. Connect the A/C compressor electrical connectors.
    2. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

56. 1. Position the transmission fluid cooler.
    2. Connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

57. Install the transmission fluid cooler bolts.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

58. Attach the retainer to the oil pan.

    Courtesy of FORD MOTOR COMPANY

59. Attach the retainer to the oil pan.

    Courtesy of FORD MOTOR COMPANY

60. Install the starter. Refer to: Starter Motor .
61. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
62. Fill the engine with clean engine oil. Refer to: Specifications .

    Courtesy of FORD MOTOR COMPANY

63. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
64. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
65. Start engine and check exhaust system for leaks.
66. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
