Cylinder Head: Disassembly

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: If the components are to be reinstalled, the y must be installed in the ir original locations. Mark the components for installation into the ir original locations.

LH cylinder heads

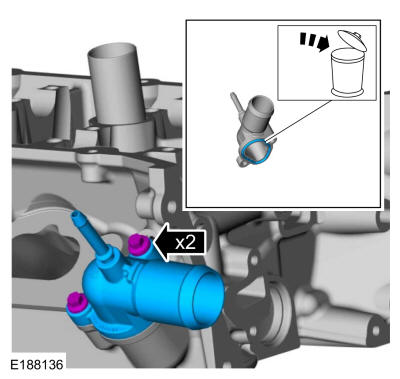

Remove the bolts and the coolant outlet.
- Discard the gasket.
Courtesy of FORD MOTOR COMPANY

RH cylinder heads

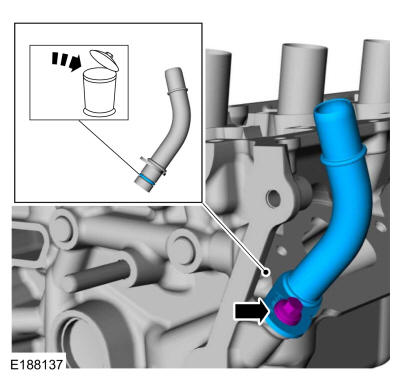

Remove the bolt and the coolant outlet.
- Discard the O-ring seal.
Courtesy of FORD MOTOR COMPANY

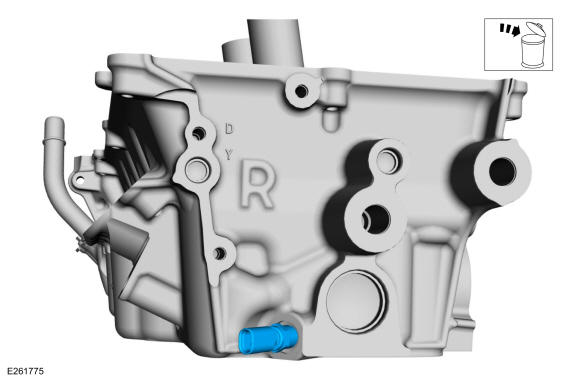

Remove and discard the CHT sensor.

Courtesy of FORD MOTOR COMPANY

All cylinder heads

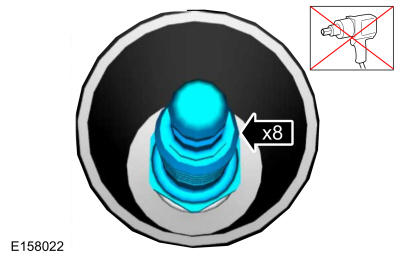

Remove the spark plugs.

Courtesy of FORD MOTOR COMPANY
NOTE: RH shown, LH similar.

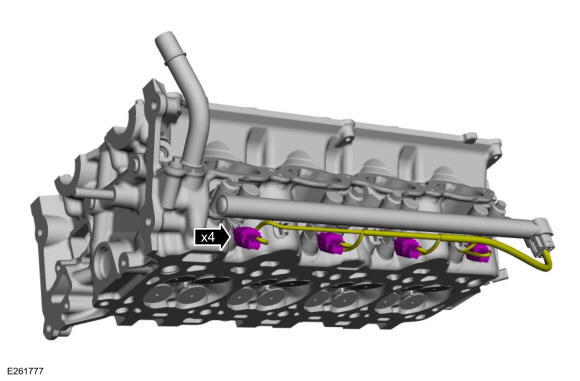

Disconnect the fuel injector electrical connectors.

Courtesy of FORD MOTOR COMPANY
NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.

NOTE: Use compressed air and remove any dirt or foreign material from the cylinder head, block and general surrounding area of the fuel rail and injectors.

NOTE: When removing the fuel rails, the fuel injectors may remain in the cylinder heads and require the use of a Fuel Injector Remover tool to extract. Wiggling the injector by hand to break it loose may allow the injector to be removed by hand.

NOTE: RH shown, LH similar.

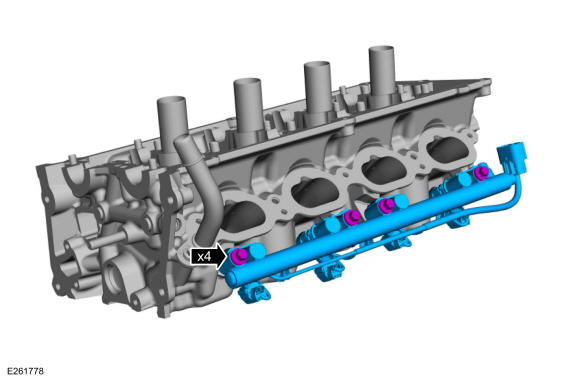

Remove the fuel rail bolts, the n remove the fuel rail.

Courtesy of FORD MOTOR COMPANY
NOTE: RH shown, LH similar.

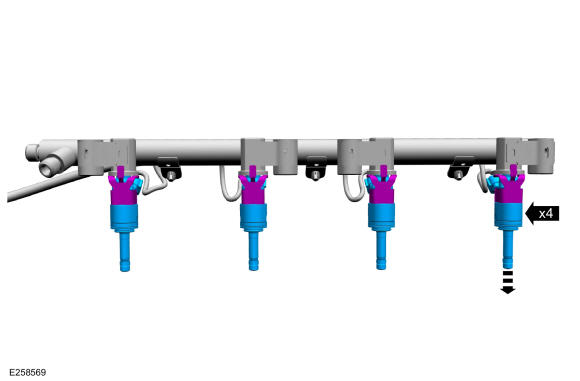

Remove the fuel injectors from the fuel rail.

Courtesy of FORD MOTOR COMPANY

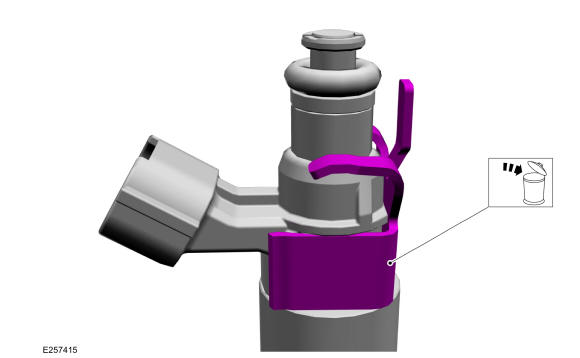

Remove and discard the fuel injector clips.

Courtesy of FORD MOTOR COMPANY
NOTE: Use minimal force to remove the fuel injectors that remained in the cylinder head with the Fuel Injector Remover tool or damage to the fuel injector assembly may occur. Wiggling the injector by hand to break it loose may allow the injector to be removed by hand.

NOTE: RH shown, LH similar.

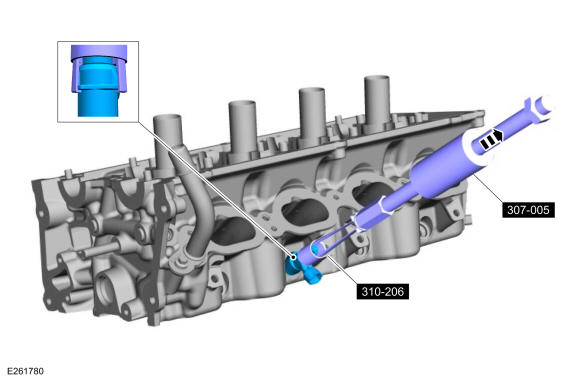

Using the special tools, remove any of the fuel injectors that remained in the cylinder head. Use Special Service Tool: 307-005 (T59L-100-B) Slide Hammer., 310-206 Remover, Fuel Injector.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and injectors.

NOTE: Do not use compressed air to clean the tip of the fuel injector.

NOTE: Do not use a brush to clean the tip of the fuel injector.

NOTE: RH shown, LH similar.

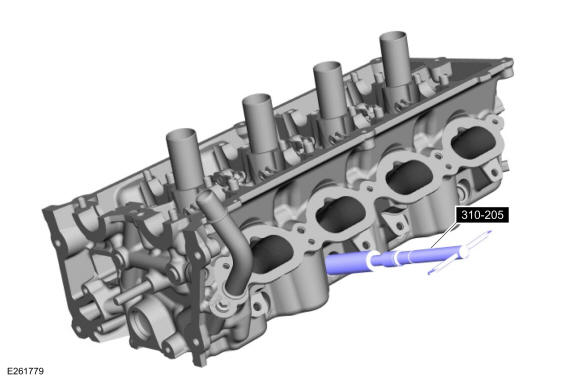

Using the special tool, clean the cylinder head fuel injector bores. Use Special Service Tool: 310-205 Fuel Injector Brush.

Courtesy of FORD MOTOR COMPANY

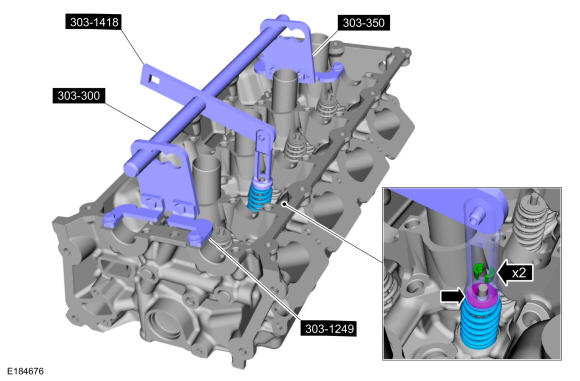

Using the special tools, remove the keys, retainer and spring. Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor., 303-350 (T89P-6565-A) Compressor, Valve Spring., 303-1249 Valve Spring Compressor., 303-1418 Compressor, Valve Spring.

Courtesy of FORD MOTOR COMPANY

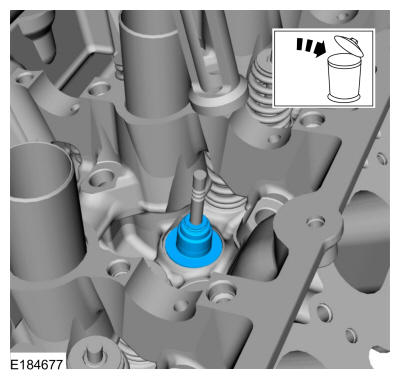

Remove and discard the valve stem seal.

Courtesy of FORD MOTOR COMPANY

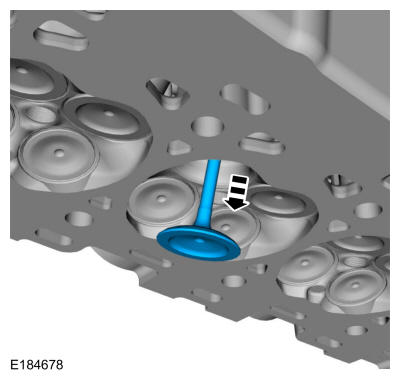

Remove the valve from the cylinder head.

Courtesy of FORD MOTOR COMPANY
Repeat the previous steps for each of the remaining valves.
