Cylinder Head: Assembly

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All cylinder heads

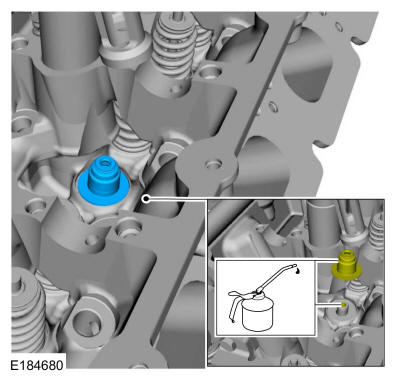

NOTE: Lubricate the new valve stem seal and valve guide bore with clean engine oil.

Install the new valve stem seal.

Material: Engine Oil - SAE 5W-20 - Synthe tic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Courtesy of FORD MOTOR COMPANY

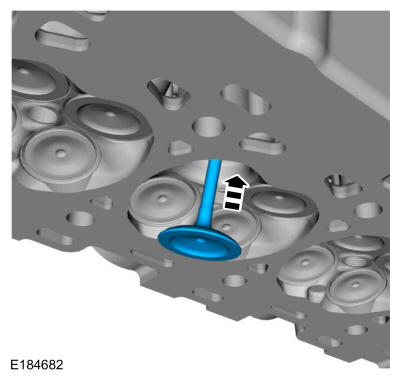

Install the valve into the cylinder head.

Courtesy of FORD MOTOR COMPANY
Using the special tools, install the spring, retainer and keys. Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor., 303-350 (T89P-6565-A) Compressor, Valve Spring., 303-1249 Valve Spring Compressor., 303-1418 Compressor, Valve Spring.

Courtesy of FORD MOTOR COMPANY
Repeat the previous steps for each of the remaining valves.
1. Remove and discard the fuel injector O-ring seals.
2. NOTE: Note the correct orientation of the fuel injector support rings for correct installation of the NEW fuel injector support rings.

  Remove and discard the fuel injector support rings.
3. Inspect the inlet stopper, if it is damaged or comes off the n discard the inlet stopper. The inlet stopper is not needed for proper function. Ensure that any debris from the inlet stopper are removed. If the inlet stopper is intact and undamaged do not remove the inlet stopper from the fuel injector.
Courtesy of FORD MOTOR COMPANY
NOTE: Use care when removing the lower Teflon® seals, not to scratch, nick or gouge the fuel injector.

NOTE: Do not attempt to cut the lower Teflon® seal without first pulling it away from the fuel injector or damage to the injector may occur.
1. Pull the lower Teflon® seal away from the injector.
2. Carefully cut and discard the lower fuel injector Teflon® seal.
Courtesy of FORD MOTOR COMPANY
NOTE: Do not lubricate the NEW lower Teflon® fuel injector seals.
1. Install the Teflon® Seal Guide onto the fuel injector tip. Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.
2. NOTE: Once the Teflon® seal is installed on the Teflon® Seal Guide, it should immediately be installed onto the fuel injector to avoid excessive expansion of the Teflon® seal.

  NOTE: Make sure that NEW lower fuel injector Teflon® seals are installed.

  Install the NEW Teflon® seals onto the Teflon® Seal Guide, using the Pusher Tool, slide the Teflon® seals along the Teflon® Seal Guide.
3. Using the Pusher Tool, slide the Teflon® seals off of the Teflon® Seal Guide and into the groove on the fuel injectors. Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.
4. Remove the special tools.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the Teflon® seal is fully seated in the groove on the fuel injector before sizing the Teflon® seal.
1. Massage and warm the Teflon® seal with your fingers before the Teflon® seal sizer tool is installed. This will aid in installing the Teflon® seal sizer tool.
2. Position the Teflon® seal sizer tool with the larger opening towards the Teflon® seal. Push while turning the Teflon® seal sizer tool 180 degrees. Use Special Service Tool: 303-1567 Sizer, Teflon Seal.
3. Once the Teflon® seal sizer tool is installed, check and make sure the Teflon® seal is in the sizing portion of the Teflon® seal sizer tool.
4. After one minute, turn the Teflon® seal sizer tool back 180 degrees and remove.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that NEW fuel injector support rings and NEW fuel injector O-ring seals are installed.
1. Install the new fuel injector O-rings. The O-rings are pre-lubricated, NO ADDITIONAL lubricant is required.
2. NOTE: The NEW the fuel injector support rings must be installed in the correct orientation with the wide surface area facing up against the fuel injector O-ring seals. Improperly installed support rings may cause the fuel system to leak.

  Install the NEW the fuel injector support rings.
3. Inspect the inlet stopper, if it is damaged or comes off the n discard the inlet stopper. The inlet stopper is not needed for proper function. Ensure that any debris from the inlet stopper are removed. If the inlet stopper is intact and undamaged do not remove the inlet stopper from the fuel injector.
4. The upper side of the support ring has the wide surface area.
5. Fuel injector support ring.
6. The lower side of the support ring has the narrow surface area.
Courtesy of FORD MOTOR COMPANY
Install the NEW fuel injector clips.

Courtesy of FORD MOTOR COMPANY
NOTE: The anti-rotation finger of the fuel injector clip must slip into the groove of the fuel rail cup.

NOTE: RH shown, LH similar.

Install the fuel injectors to the fuel rail and the n connect the fuel injector electrical connectors.

Courtesy of FORD MOTOR COMPANY
NOTE: RH shown, LH similar.

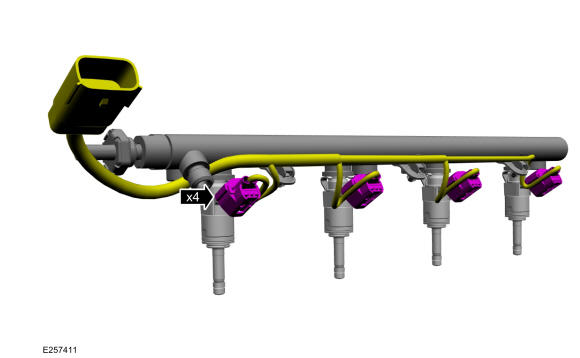

Connect the fuel injector electrical connectors.

Courtesy of FORD MOTOR COMPANY
- NOTE: Do not lubricate the NEW lower Teflon® fuel injector seals.

  NOTE: RH shown, LH similar.

  Install the fuel rail, push down on the fuel rail above the injectors.
- Hand start all of the fuel rail bolts and finger tighten the fuel rail bolts so the y are uniformly in light contact with fuel rail bosses.
- Tighten the fuel rail bolts approximately 90 degrees, in the sequence shown below. Repeat to evenly draw down the fuel rail, until the fuel rail bosses are in contact with the cylinder head.
  Torque:| Stage 1: Tighten the fuel rail bolts in the sequence shown below to : 89 lb.in (10 Nm) | Stage 2: Tighten the fuel rail bolts in the sequence shown below to : 21 lb.ft (28 Nm) | Stage 3: Tighten the fuel rail bolts in the sequence shown below an additional : 25°

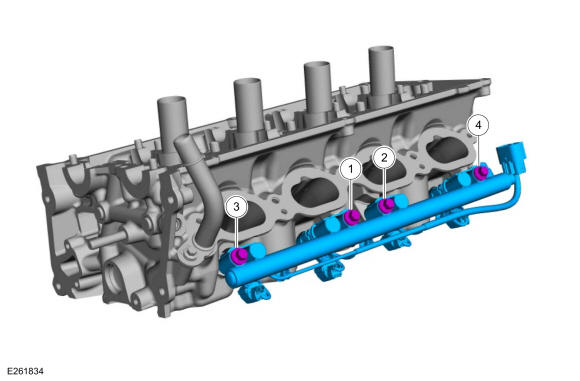

Fig 1: Fuel Rail Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the spark plugs.
Torque: 128 lb.in (14.5 Nm)

Courtesy of FORD MOTOR COMPANY

RH cylinder heads

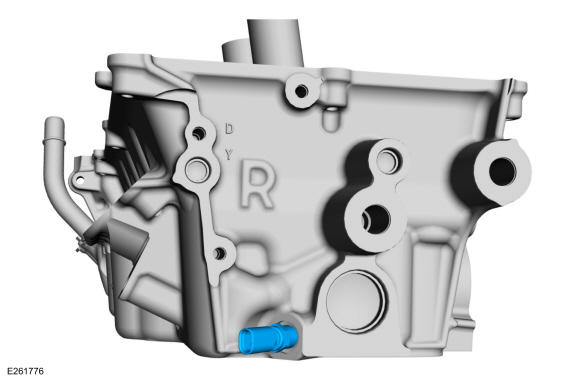

Install a new CHT sensor.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the O-ring seal with clean engine coolant prior to installing.

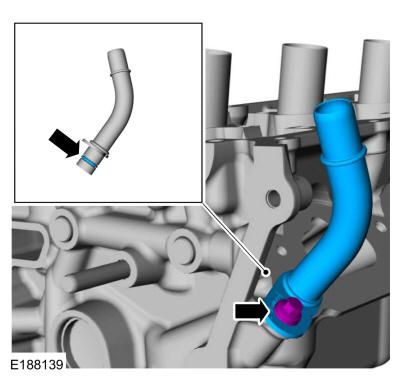

Using a new O-ring seal, install the coolant outlet pipe.

Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

LH cylinder heads

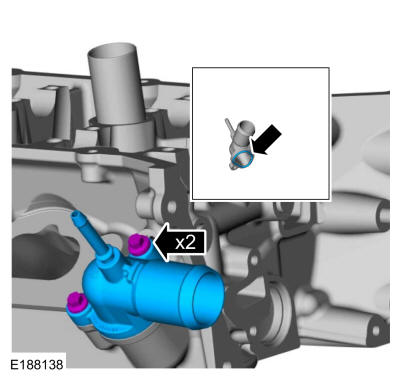

Using a new gasket, install the coolant outlet and the bolts.
Torque: 89 lb.in (10 Nm)
